Acute Skin Exposure To Ultraviolet Light Triggers Neutrophil-mediated Kidney Inflammation

We and others have shown that UV light induces rapid neutrophil infiltration into the skin (6, 7). Although neutrophils are major contributors to inflammation at local injury sites, it has recently been recognized that neutrophils can also home to organs distant from the primary site of inflammation (8–10), where they contribute to lung tissue injury via the production of reactive oxygen species (ROS) (11) or activate the adaptive immune system in the lymph nodes and the bone marrow (9, 12). In SLE, neutrophils are thought to play an important role in both local and systemic diseases. Neutrophils are present in the skin lesions of SLE patients (13, 14) and in the kidney tissue of patients with LN (15, 16). High expression of a neutrophil gene signature is a strong predictor of active disease, including LN and cutaneous flares (17, 18). Proinflammatory low-density granulocytes (LDGs) are increased particularly in patients with skin disease (19). While these findings implicate neutrophils in local tissue injury in SLE, whether neutrophils provide the pathogenic link between skin inflammation and kidney injury is not understood.

To elucidate how skin exposure to UV light impacts the kidney and the role neutrophils play in these processes, we evaluated changes in renal gene expression in concert with neutrophil migration. We found that acute skin exposure to UV light stimulates inflammatory processes in the kidney, including the expression of endothelial adhesion molecules, inflammatory mediators, injury markers, and transient proteinuria. Notably, we found that neutrophils migrated to the kidney after UV light exposure in an IL-17A–dependent manner, localizing to the tubulointerstitial (TI) areas where they exhibited proinflammatory phenotypes. Blocking neutrophil trafficking by anti–G-CSF immunoglobulin (IgG) treatment abrogated renal inflammation and prevented up-regulation of tubular injury markers. Together, these findings demonstrate that skin exposure to UV light triggers subclinical renal inflammatory and injury processes mediated by neutrophils.

Results

Skin Exposure to UV Light Causes Subclinical Kidney Injury.  Exposure to sunlight has been associated with aggravation of systemic symptoms and occurrence of disease flares in SLE patients, including nephritis (2–4). Therefore, we first asked whether acute sterile inflammation in the skin triggered by a single exposure to ultraviolet B (UVB) light (500 mJ/cm2 ) in black 6 (B6) mice leads to changes in the kidney, including inflammation, injury, and proteinuria (Fig. 1A). The lung was chosen as a control organ, as no association between photosensitivity and clinical lung disease has been reported in SLE. A total of 500 mJ/cm2 of UVB light in B6 mice has been defined as two minimal erythematous doses (20), the reference dose used for human protesting (21). Gene expression analyses of perfused kidney tissues (Fig. 1A) revealed up-regulation in the gene expression of adhesion molecules vcam- 1 and e-selectin on days 1 and 2 after UVB light exposure (Fig. 1 B and C). In contrast, vcam-1 and e-selectin expression demonstrated a downward trend in the lung (SI Appendix, Fig. S1). We also observed a >10-fold renal induction in s100A9, a neutrophilic mediator associated with kidney damage (22), as well as increased s100A6 expression, a calcium-binding protein associated with tubular injury (23) (Fig. 1 D and E). While s100A9 induction was detected in the lung, s100A6 gene expression remained unchanged in the lung (SI Appendix, Fig. S1). The inflammatory response in the kidney was also associated with an early increase in il-1β expression (days 1 and 2 after UV), whereas there was minimal or no change in tnf or il-6 (Fig. 1F). Il-1β expression was not detected in the lung until 6 d after skin exposure to UVB light (SI Appendix, Fig. S1). Rapid induction in cxcl12 expression, a chemokine secreted by glomeruli and tubules and implicated in renal injury (24), was also found in the kidney but not the lung (Fig. 1G and SI Appendix, Fig. S1). Therefore, UVB light-triggered skin injury instigates rapid renal proinflammatory processes, while fewer changes are observed in the lung.

In addition to the proinflammatory response observed in the kidney, both proteinuria and the urinary albumin/creatinine ratio increased in the first few days after skin exposure to UVB light (Fig. 1 H and I). This rapid effect on kidney function was accompanied by up-regulation in the expression of lipocalin-2 and kidney injury molecule 1 (kim-1) (Fig. 1 J and K), markers of tubular kidney damage that are also observed in LN (25, 26). Despite the transient nature of proteinuria, the expression of these kidney injury markers persisted up to day 6 (Fig. 1 J and K), possibly reflecting tissue repair.

UV Light–Induced Inflammation in the Skin Results in Neutrophil Migration to the Kidney. To investigate whether neutrophils participate in the systemic inflammatory response to UVB light, we examined the kinetics of neutrophil accumulation in UV light–irradiated skin as well as in the spleen, kidney, and lung of C57BL/6 J (B6) mice, a strain that best mimics cutaneous changes to UVB light in human skin (Fig. 2A) (27). Following acute skin exposure to UVB light, neutrophil numbers in the skin increased sevenfold within 24 h and remained elevated for 6 d compared to baseline pre-UV levels (D-1) (Fig. 2B). This was accompanied by a reduction in neutrophil numbers in the bone marrow and a fivefold increase in circulating blood neutrophils on days 1 to 6 (Fig. 2 C and D). Intriguingly, in the same time frame, neutrophils increased in the spleen, lung, and kidney (Fig. 2 E–G and SI Appendix, Fig. S2A). The precise kinetics varied between organs, reaching a peak on day 1 in the lung and days 2 to 6 in the kidney and spleen (Fig. 2 E–G). In the kidneys, neutrophils mostly localized to the tubulointerstitial area, including the vasculature, as indicated by neutrophil elastase (NE) staining in proximity to, or colocalized with, platelet/endothelial cell adhesion molecule-1 (PECAM-1/CD31) (Fig. 2H). Representative images in Fig. 2H show neutrophils in or around the interstitial vasculature (full white arrows) and in the interstitium (dotted white arrows), with occasional neutrophils, also found in the glomeruli (yellow arrows). Similar localization was detected with anti-Ly6G immunofluorescence (IF) staining (SI Appendix, Fig. S2B).

To determine whether other innate immune cells showed local and systemic responses similar to neutrophils, we examined the distribution of monocytes (CD11b+Ly6C+Ly6G−) at the same time points after UVB light exposure. While monocytes were also recruited into the skin, only small numbers of infiltrating monocytes were detected in the kidney on day 6 after UVB exposure (∼2-fold versus ∼10.5-fold increase in kidney neutrophils) (Fig. 2F and SI Appendix Fig, S3). No increase in monocyte numbers was detected in the lung or spleen (SI Appendix, Fig. S3), suggesting that the systemic response to UV injury was relatively selective for neutrophils.

Infiltration of neutrophils into the skin was accompanied by histologic changes, including early inflammation of the dermis and epidermal cell death (days 1 and 2), followed by the development of acanthosis and hyperkeratosis with serocellular crust formation in some cases (day 6) (SI Appendix, Fig. S4). Notably, no open skin lesions appeared after exposure to UVB light, suggesting that the observed immune cell infiltration occurred under sterile conditions, although a contribution by an altered skin microbiome cannot be excluded (20).

Together, these findings demonstrate that exposure of the skin to a single dose of UVB light mobilizes neutrophils to both the local site of inflammation as well as to internal organs, including the kidney, accompanied by blood neutrophilia. While overall migratory patterns were similar in both male and female mice, neutrophil infiltration into the skin was more rapid in females compared to males (Fig. 2B). In contrast, epidermal injury by tape stripping did not lead to neutrophil migration to the kidney despite similar levels of neutrophil infiltration and inflammatory response and tissue injury as seen with UV light exposure (SI Appendix, Fig. S5), indicating that systemic neutrophil dissemination is not common to all forms of sterile skin injury.

CISTANCHE WILL IMPROVE KIDNEY/RENAL DISEASE

IL-17A Promotes Neutrophil Recruitment following Skin Exposure to UV Light.  A survey of chemotactic and inflammatory mediators in the skin revealed significant up-regulation of the gene expression of neutrophil chemokines and inflammatory cytokines cxcl1, cxcl5/6, g-csf, and il-1β 1 to 2 d after UV exposure (Fig. 3 A–D). The rapid and persistent increase in expression of s100A9 matched the kinetics of neutrophil infiltration into the skin (Fig. 2B and SI Appendix, Fig. S6), whereas the cytokines il-6, tnf, and il-33 were transiently increased and returned to baseline expression by day 6 (SI Appendix, Fig. S6). In contrast, il-36a was elevated only on day 6 (SI Appendix, Fig. S6), perhaps reflecting a reparative function. The transient (1 to 2 d) presence of monocytes in the skin (SI Appendix, Fig. S3) paralleled the up-regulation of monocyte-specific chemokines ccl4 and ccl2 (SI Appendix, Fig. S6). Similar to the accumulation of neutrophils in the skin of female mice (Fig. 2B), monocyte accumulation in the skin also occurred earlier in females than males (SI Appendix, Fig. S3).

UV skin exposure was accompanied by rapid (6 h) 12-fold induction in il-17a gene expression in the skin (Fig. 3E) as well as >1,000-fold cutaneous induction in g-csf expression during days 1 and 2 after UV (Fig. 3C). To determine whether the induction of these cytokines was relevant to neutrophil mobilization, we first quantified cytokine protein concentrations in the blood, which revealed a robust and sustained (10- to 100-fold) increase in the concentration of plasma IL-17A 6 to 24 h after exposure to UV light (Fig. 3F), together with a transient (peak at 6 h) increase in IL-6 and IL-12, cytokines that may be downstream of IL-17A (28) (Fig. 3 G and H). No increase in the plasma concentrations of IFNγ, GM-CSF, TNFα, IL-10, IL-27, IL-23, or IL1α were observed. To determine if IL-17A is necessary for UVB-induced neutrophil recruitment, we blocked the effect of IL-17A with a neutralizing antibody prior to UV exposure (Fig. 3I). Anti–IL-17A IgG significantly dampened blood neutrophilia (Fig. 3J) and attenuated neutrophil influx into both the exposed skin tissue (Fig. 3K and SI Appendix, Fig. S7A) and the kidney (Fig. 3L and SI Appendix, Fig. S7B). These findings demonstrate neutrophil recruitment in response to UV light is mediated, at least in part, by IL-17A.

Neutrophils Mediate Kidney Inflammation after Skin Exposure to UV Light. To determine whether neutrophils were responsible for the inflammatory changes in the kidney following skin UVB light exposure, we blocked neutrophil recruitment prior to UV light exposure. Since cutaneous g-csf expression was up-regulated >1,000-fold after UV exposure, suggesting a chemotactic role for G-CSF in neutrophil recruitment in response to UV light, we inhibited neutrophil mobilization from the bone marrow by blocking G-CSF as outlined in Fig. 4A. Neutralizing G-CSF prevented blood neutrophilia as well as neutrophil recruitment to the kidney after skin exposure to UVB light (Fig. 4 B and C). Notably, as previously reported in different models (29, 30), blocking G-CSF did not alter monocyte numbers in the kidney (Fig. 4D). Decreased neutrophil migration to the kidney was accompanied by a significant reduction in the renal expression of the adhesion molecules vcam-1 and e-selectin (Fig. 4 E and F) as well as the inflammatory mediators s100A9 and il-1β 1 d after UVB exposure (Fig. 4 G and H). Furthermore, the tissue injury markers lipocalin-2 and kim-1 in the kidney were significantly decreased in UV light-exposed mice treated with G-CSF blocking antibody relative to isotype-treated UV-exposed animals (Fig. 4 I and J). As we reported previously (6), acute skin exposure to UVB light triggered a type I interferon response in the kidney (Fig. 4K). Blocking G-CSF significantly reduced, but did not completely abrogate, the IFN score (Fig. 4K). While the presence of neutrophils in the kidney was required for the acute inflammatory and injury responses observed 1 d after skin UV light exposure (Fig. 4), no differences in proteinuria were seen at this time point, as peak proteinuria occurred around day 4 after UV exposure (Fig. 1 H and I). Together, these data indicate that neutrophils are responsible for the inflammatory response and, directly or indirectly, contribute to type I interferon induction in the kidney following UV light exposure of the skin. Similar to the results obtained with anti–G-CSF IgG, administration of neutralizing anti–IL-17 antibody partially suppressed neutrophil migration to the kidney and resulted in decreased gene expression of kidney inflammatory (vcam-1 and s100A9) and injury markers (lipocalin-2 and kim-1), although only the reduction in kim-1 expression was statistically significant (SI Appendix, Fig. S7 C–F)

A Subpopulation of Kidney Neutrophils Is Reverse Transmigrated, a Phenotype Also Detected in the Blood of SLE Patients. While it has long been assumed that neutrophils entering sites of infection or sterile inflammation subsequently undergo apoptosis and are rapidly removed by macrophages, a number of studies have revealed that some neutrophils traffic in a bidirectional manner, that is, after entering a tissue, they transmigrate back into the bloodstream and infiltrate another location, a process referred to as reverse transmigration (rTEM) (8, 10, 11, 31–34). To investigate whether neutrophils that homed to the kidney after skin exposure to UVB light transited via the exposed skin, we studied neutrophil migration in a photoactivatable B6 mouse model (human ubiquitin C [UBC]-photoactivated [PA]-green fluorescent protein [GFP]).

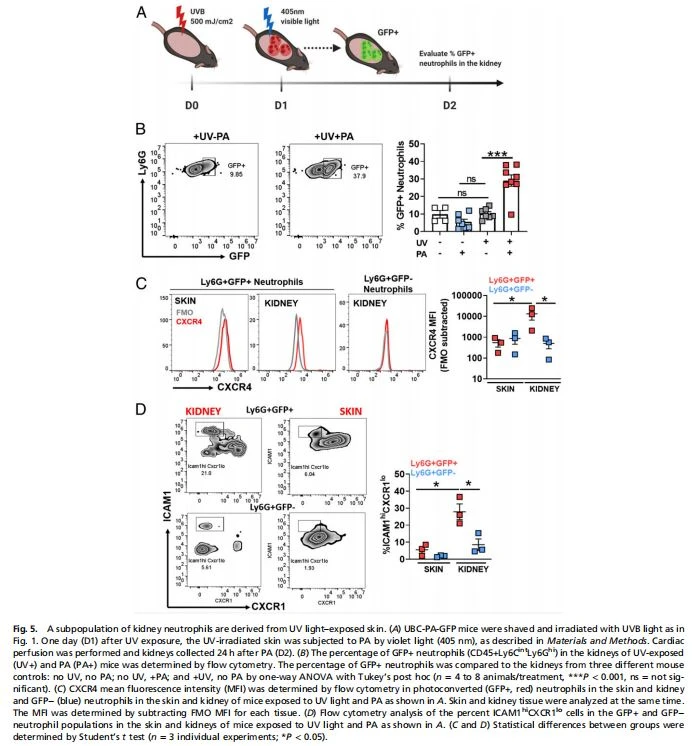

The experimental scheme is illustrated in Fig. 5A; 1 d after skin exposure to a single dose of UVB light, the skin was exposed to violet light (405 nm) such that infiltrating immune cells were photoconverted to GFP-positive cells. Photoconverted neutrophils (GFP+Ly6G+) were then quantified in perfused kidneys the next day. Flow cytometry analysis revealed that ∼20% of kidney-infiltrating neutrophils were GFP positive after subtraction of background signal (∼10%) (Fig. 5B). In contrast to the models of sterile inflammation in the liver or cremaster muscle (8, 10), we did not detect photoconverted neutrophils in the lung, possibly because few neutrophils were found in the lung on day 2 (Fig. 2F). To test whether GFP+ neutrophils in the kidney extravasated from UVexposed skin tissue or were PA intravascularly, we compared the changes in the numbers of GFP+ neutrophils obtained from the kidneys of mice in which the same skin that was exposed to UV light was PA with violet light a day later (Group I) versus mice in which the skin adjacent to that exposure to UV light was PA with violet light a day later (Group II, diagram in SI Appendix, Fig. S8A). Although there were no differences in the percentages of circulating neutrophils between the groups (SI Appendix, Fig. S8B), a greater increase in GFP+ neutrophils was observed in the kidneys of mice where UV-exposed skin was also PA (Group I) compared to the lack of increase in GFP+ neutrophils in the mice where non-UV–exposed skin was PA (Group II) (SI Appendix, Fig. S7B). In Group II, the neutrophil numbers were similar to the background of GFP positivity seen in Fig. 5B (SI Appendix, Fig. S8B).

While low levels of GFP+ kidney neutrophils in Group II suggested that violet light did not PA circulating cells in nonUV–exposed skin, it remained possible that exposure to UV light altered neutrophil interactions with blood vessels in the skin, allowing for greater photoconversion and subsequent kidney access. To determine the relative proportions of TEM neutrophils, we quantified the expression of surface markers used to characterize neutrophils that underwent rTEM: CXCR4hi (8) and ICAM1hiCXCR1lo (11, 35). Indeed, GFP+ kidney neutrophils expressed higher levels of CXCR4 compared to GFP+ neutrophils in the skin or GFP− neutrophils in the kidney (Fig. 5C). Of

interest, renal expression of the CXCR4 ligand, cxcl12, 1 to 2 d after skin exposure to UVB light was concurrent with the presence of CXCR4hi neutrophils in the kidney (Fig. 1G), possibly providing the chemotactic stimulus for recruitment of these neutrophils into the kidney. Of interest, we detected CXCR4hi and ICAM1- hiCXCR1lo neutrophils in the bone marrow late after UV exposure (day 6, SI Appendix, Fig. S9 B and C), suggesting that some of these neutrophils also home back to the bone marrow similar to what has been reported for rTEM following liver injury or virus infection of the skin (12, 36). Consistent with these observations, we detected higher CXCR4 expression on blood neutrophils on day 2 after UV exposure, possibly capturing cells en route to the kidney and bone marrow (SI Appendix, Fig. S9D). Similarly, a significantly greater percentage of ICAM1hiCXCR1lo cells was detected among the GFP+ neutrophils in the kidney compared to GFP+ neutrophils in the skin and GFP− neutrophils in the kidney (Fig. 5D). The ICAM1hiCXCR1lo phenotype was detected on ∼20 to 35% of GFP+ neutrophils in the kidney (Fig. 5D), suggesting that a subset of neutrophils that migrate to the kidney via UV-exposed skin do so by reverse transmigration, whereas the remainder of kidney neutrophils are likely activated while circulating through inflamed UV-exposed skin. The ICAM1- hiCXCR1lo neutrophil subpopulation was also detected in the kidneys of normal B6 mice exposed to UV light that did not receive PA (SI Appendix, Fig. S9A).

While both CXCR4hi and ICAM1hiCXCR1lo neutrophil phenotypes have been associated with inflammatory functions and tissue injury in different murine models (11, 31, 37), few studies have been performed on these cell populations in human disease. Given the emerging role of neutrophils in SLE (13, 17, 18) and their apparent heterogeneity (19), we investigated whether normal-density polymorphonuclear cells (PMNs) or LDGs from SLE patients

demonstrated the reverse migrating phenotypes: CXCR4hi (37, 38) and ICAM1hiCXCR1lo. Flow cytometry profiling of PMNs and LDGs revealed higher CXCR4 expression on the surface of these cells in SLE patients compared to healthy controls (Fig. 6 A and C). Moreover, we found a small but significantly higher percentage of ICAM1hiCXCR1lo PMNs in SLE blood (mean, 3.5%) relative to healthy controls (mean, 1.4%) (Fig. 6B). Interestingly, the LDG neutrophil population (CD15+CD14loCD10+ in peripheral blood mononuclear cells [PBMCs]) contained a greater percentage of ICAM1hiCXCR1lo cells than the PMNs in both healthy (mean, 7.1%) and SLE blood (mean, 29.4%) (Fig. 6 B and D). The rTEM like population was significantly more highly represented in LDGs from SLE patients relative to healthy controls (Fig. 6D). These data identify the presence of rTEM-like neutrophil phenotypes in PMNs and particularly LDGs in SLE patients.

Discussion

The systemic effects of skin exposure to UV light are poorly understood. Identifying these pathways in normal baseline conditions may inform mechanisms of systemic tissue involvement after sun exposure that occurs in diseases such as SLE (2–4). Here, we report several findings on how exposure to sunlight impacts the kidney. First, we demonstrated that acute skin exposure to UVB light triggers inflammatory and injury responses in the kidney, including subclinical proteinuria. Intriguingly, these renal changes were accompanied by neutrophil infiltration into the kidney following UVB light-mediated skin inflammation. The neutrophil response was dependent on IL-17A and G-CSF. Neutrophils in the kidney had proinflammatory phenotypes, as evidenced by extracellular localization of NE, a higher proportion of rTEM (CXCR4hi) also known as “aged” and ICAM1hiCXCR1lo cells. Neutrophils were directly implicated in subclinical kidney injury, as neutrophil depletion resulted in significant reductions in the expression of adhesion molecules, inflammatory cytokines, IFN-I signature, and kidney injury markers after skin UV exposure.

Other types of skin injury, such as tape stripping and topical application of a TLR7 agonist, have been reported to enhance kidney injury in certain lupus models, although disease enhancement was thought to be mediated by macrophages and dendritic cells rather than neutrophils (39, 40). Having demonstrated that tape stripping did not lead to neutrophil recruitment to the kidney, we propose that UV light exposure is different from other types of sterile skin inflammation. This may be explained by the generation of photoproducts or unique inflammatory mediators after UV injury that prime the kidney for inflammation, by differences in the removal of neutrophils after UV compared with tape stripping, or by other factors. We observed that UV light triggered a rapid and strong induction of il-17a messenger RNA (mRNA) in the skin together with high circulating IL-17A protein levels (∼100-fold increase), which was required for neutrophil recruitment after exposure to UV light. The concurrent 100- to 1,000-fold induction in the skin g-csf expression suggests that the IL-17A/G-CSF axis is the likely mechanism responsible for neutrophilia and neutrophil tissue homing in response to UV light. The role of IL-17A in regulating granulopoiesis and neutrophil recruitment via induction of G-CSF is well recognized under homeostatic conditions and a few studies have identified IL-17A as important for neutrophil recruitment to the sites of sterile inflammation (41, 42). In lupus, elevated IL-17A expression is found in cutaneous lesions (43), and increased circulating IL-17A levels have been associated with worse disease manifestations (44), although the specific relationship to neutrophils, a pathogenic population in this disease (13, 17, 18), remains unexplored. Besides its direct effects on G-CSF– mediated mobilization of neutrophils from the bone marrow, IL- 17A may also contribute to neutrophil homing to the kidney by stimulating the expression of adhesion molecules (e.g., VCAM-1 and E-Selectin) on the renal endothelium (45, 46).

Using the same model of acute UV exposure, we recently reported that a single dose of UV light triggered a local and systemic IFN-I response, which was required for efficient neutrophil recruitment to the skin (6). Since IFN-I has been shown to induce IL-17A production (47), it is plausible that these pathways either independently or in concert lead to the UV light-mediated neutrophil recruitment and migration we report here. While our findings suggest an inflammatory role for IL- 17A, suppressive effects of UVB light on IL-17A signaling have previously been reported in psoriasis, where exposure of psoriatic skin to UVB light eliminated pathogenic T cells and myeloid inflammatory dendric cells (48, 49). Since psoriatic, unlike healthy, skin is rich in IL-17–producing and –responding T cells, the difference in cellular composition is likely to determine the response to UVB light, including the extent of UVB light-mediated suppression of IL-17A receptor expression (50). UV dosage may also determine whether the inflammatory or therapeutic effect occurs: low doses are associated with anti-inflammatory and immunosuppressive consequences (51), possibly by inhibiting CD8 T cell responses (52).

Neutrophils play multiple roles during tissue inflammation. When activated by pathogen-associated molecular patterns and damage-associated molecular patterns (DAMPS) or by receptor engagement, neutrophils directly contribute to tissue injury by releasing proteases, ROS, and extrusion of neutrophil extracellular traps (NETs) (53, 54). Neutrophils can also promote tissue repair by phagocytosis of cellular debris and by enabling tissue revascularization (8). In SLE, a neutrophil gene signature is a strong predictor of active disease including LN and cutaneous lupus (17, 18). Neutrophils are found in cutaneous lesions (13, 14) as well as kidney biopsy specimens (15, 16) of SLE patients, and their inflammatory properties have been attributed, in part, to NET formation (16). This process includes increased production of ROS (55), mitochondrial DNA release (55), and release and induction of inflammatory proteins, such as s100A9 (56), IL-1b (57), and type I interferons (55, 58). Our findings that inhibiting neutrophil migration to the kidney abrogated s100A9 and significantly reduced IL-1b expression and the kidney IFN score suggest that similar inflammatory functions might be at play. Relevant to kidney disease in SLE, neutrophils mainly localized to the TI endothelium, the site of increased expression of kidney injury markers kim-1 and lipocalin-2 in LN kidney tissues (59,60). Proteinuria can arise due to excessive permeability of the glomerular barrier to proteins due to impaired reabsorption of protein by tubules or a combination of these mechanisms (61). TI injury in SLE patients is a frequent pathologic finding in LN kidneys, including those with mild glomerular injury (61, 62). TI injury has been shown to predict the severity of LN (63, 64), yet the mechanisms triggering it are unknown. Since elevated kim-1 and lipocalin-2 are recognized markers of TI injury in SLE (26, 65) and blocking neutrophil migration to the kidney inhibited their expression, we propose that the transient proteinuria observed after UV exposure is a consequence of neutrophil-mediated subclinical TI inflammation (65). Increased kidney vcam-1 expression, another marker of TI injury in SLE (66), further supports this model.

In addition to propagating inflammation at the local sites of sterile or infectious injury, neutrophils have been shown to home to distant organs (8–10), where, depending on the context, they contribute to tissue injury via ROS production (11) or activate the adaptive immune system in the lymph nodes and the bone marrow (9, 12). The inflammatory nature of these neutrophils has been attributed to their ability to exit the primary site of injury and migrate to secondary sites, that is, to undergo rTEM (9–11, 31–34). Our findings that PA of GFP-containing cells in the skin following UV exposure led to the detection of GFP+ neutrophils in the kidney with the phenotype of rTEM suggest that a subpopulation of renal neutrophils reverse migrated from UV-exposed skin (GFP+neutrophils make up ∼20% of kidney neutrophils and of those, 20 to 35% are rTEM; therefore, rTEM make up 4 to 7% of total kidney neutrophils). This proportion of rTEM is comparable to the proportion reported after sterile liver injury (∼9%) (36) and ischemia-reperfusion injury (∼8%) (11). rTEM have in other circumstances been shown to be pro-inflammatory (10, 11) and have impaired apoptosis (35), leading to the possibility that they play a role in UV-induced kidney injury. The elevated CXCR4 expression on these neutrophils is particularly relevant, as a coincident renal expression of cxcl12, a CXCR4 ligand expressed by podocytes and tubules (24), was observed, likely providing a chemotactic signal for this neutrophil population. Increased CXCR4 expression on immune cells coupled with high levels of renal CXCL12 have been identified in SLE patients with LN (67), and this pathway was implicated in lupus as well as ischemia-reperfusion kidney injury in mice (24, 68). In addition to being a marker of rTEM, increased CXCR4 expression is also an indicator of “aged” neutrophils, which can mediate tissue-damaging inflammatory responses (38). The precise role of CXCR4 in neutrophil recruitment to the kidney can be investigated by CXCR4 antagonism as previously done in other models of sterile injury (38).

Tissue-specific neutrophil migration and the mechanisms responsible for differential expression of adhesion molecules in different organs are not well understood (69). Higher levels of expression of the chemokine cxcl12 in the kidney but not the lung could explain the preferential presence of CXCR4hi neutrophils in the kidney. In addition, the induction of expression of vcam-1 and e-selectin in the kidney, compared to no change in expression in the lung, likely contributes to preferential neutrophil recruitment and retention in the kidney. The 5- to 6-fold increase in s100A9 expression in the lung compared to a 30- to 60-fold increase in the kidney as well as a 6-fold increase in il-1b expression in the lung compared to 16-fold increase in the kidney further indicate tissue differences in the inflammatory response. The reduction in neutrophil infiltration of the kidney following neutralization of G-CSF can be attributed to both a reduction in circulating numbers and activation of neutrophils as well as a reduction in local expression of vcam-1 and e-selectin. However, we cannot be certain whether initial up-regulation of these adhesion molecules following skin UV exposure is attributed to skin-derived cytokines/DAMPS or whether neutrophils, through the release of serine proteases, contribute directly to their expression as has been shown in other contexts (70). Regardless of the mechanisms, and noting that we have not performed a comprehensive analysis of all tissues, our studies provide evidence for some organ selectivity in UV light-mediated systemic effects. Future studies will address tissue-specific functional consequences of systemic neutrophil dissemination by, for example, vascular albumin leakage and edema formation in the lung (11, 36).

In patients with SLE, it is difficult to unequivocally relate skin UV light exposure to exacerbations of systemic disease, as there is significant variation (1 to 3 wk) in visible photosensitivity responses in different individuals (21). In addition, subclinical kidney injury may readily be missed until consecutive exposures to UV light compound the effects. While we found that neutrophil-mediated kidney inflammation in response to UV light does not cause clinical disease in healthy mice, such a mechanism may contribute to LN flares in photosensitive lupus patients in multiple ways. Fc receptor engagement by immune complexes could enhance neutrophil recruitment, resulting in ROS and protease release (71); the heightened capacity of lupus neutrophils and LDGs to produce NETs, which, in SLE patients, are not cleared efficiently (72), could lead to the release of tissue-damaging proteases (73), propagation of the IFN-I response (58), or direct damage to the kidney endothelium by creating vascular damage and leakage (16). Moreover, the underlying differences in lupus skin, such as enhanced IFN-I signaling (5, 74) and defects in protective Langerhans cell population (75), could inform the extent and nature of neutrophil-mediated systemic responses. Tracking neutrophil migration coupled with the interrogation of autoantibodies, accumulation of apoptotic cells, and low complement levels can be addressed using novel models of lupus, such as genetically defined triple mutants (Sle1.Mfge8−/− C1q−/− and Sle1.Mfge8−/−C3−/−) (76) or other lupus strains following exposure to UV light.

The exact mechanisms linking neutrophils to inflammation in SLE might, in addition, be influenced by the neutrophil/LDG phenotype, as heterogeneity within these populations, has become more apparent (77). Our findings of elevated CXCR4 and ICAM1hiCXCR1lo (rTEM) circulating populations, particularly in SLE LDGs, further add to this heterogeneity and suggest that some of the more pro-inflammatory granulocytes in blood might have prior “tissue experience,” that is, residence in the affected organ tissues, such as the skin, prior to systemic dissemination. The rTEM phenotypes have previously been reported in synovial fluid and circulating neutrophils of rheumatoid arthritis patients (35, 78) and in acute pancreatitis-associated lung injury (79). Their role in SLE warrants further investigation.

CISTANCHE WILL IMPROVE KIDNEY/RENAL PAIN

Materials and Methods

Mice. All animal experiments were approved by the Institutional Animal Care and Use Committee of the University of Washington, Seattle. Initial experiments were conducted using both male and female C57BL/6J mice (Jackson Laboratory, 3 to 4 mo old, Figs. 1 and 2). Female mice were used for all subsequent experiments. PA studies were performed on B6. Cg-Ptprc Tg(UBC-PA-GFP)1Mnz/J female mice (Jackson Laboratory, 3 to 4 mo old). These mice were generated by injection of a transgenic vector carrying PAGFP (T203H variant) under the transcriptional control of the human ubiquitin C promoter into C57BL/6 embryos. The animals were housed in pathogen-free conditions and maintained in light-dark cycles of 12 h with ad libitum access to food and water. The experiments on all the animals were performed at the same time of the day as to avoid the influence of circadian rhythm on neutrophil migration (38).

Exposure to UVB Light and Tape Stripping.  The dorsal aspect of male and female C57BL/6 mice was shaved at least 24 h prior to irradiation with UVB light, and only the mice with non pigmented skin were used in the experiments. Mice were anesthetized with isoflurane and exposed to one dose of UVB light (500 mJ/cm2) using FS40T12/UVB bulbs (National Biological Corporation), with peak emission between 300 and 315 nm. The UVB light energy at the dorsal surface was measured with a Photo light IL1400A radiometer equipped with a SEL240/UVB detector (International Light Technologies). Mice were euthanized 1, 2, or 6 d after exposure to UVB light, and nonirradiated mice were used as controls (D-1) (Fig. 2A). Epidermal tape stripping was performed as previously described (7), and skin and kidney were evaluated 24 h after injury

Inhibition of IL-17A and G-CSF.  Mice were treated intravenously with 100 μg purified rat anti-mouse IL-17A IgG (BioLegend) or isotype control 3 h before exposure to UV light (1 × 500 mJ/cm2) (Fig. 3I). Neutrophil presence in the blood, skin, and saline-perfused kidney tissue was evaluated by flow cytometry 24 h after UV exposure as described below. Neutrophil migration in response to UV light was inhibited by treating mice intraperitoneally with 50 μg anti-mouse G-CSF monoclonal antibody or mouse IgG isotype control (R&D Systems) 24 h and 3 h prior to skin exposure to UVB light (1 × 500 mJ/cm2) (Fig. 4A). Following cardiac perfusion, neutrophil and monocyte numbers in the kidney were evaluated by flow cytometry and gene expression by qPCR, as described below. Mice not exposed to UVB light were used as an additional control group.

Isolation of Cells from Different Organs.  Following euthanasia with CO2 inhalation, a piece of dorsal skin was removed and kept in RPMI (Roswell Park Memorial Institute) solution on ice until processing. Blood was collected by cardiac puncture in ethylenediaminetetraacetic acid-coated syringes. Cardiac perfusion was subsequently performed using phosphate-buffered saline (PBS) (∼60 mL) through the left ventricle after snipping the right atrium. Successful perfusion was determined by observing complete kidney and lung pallor. Lungs, kidneys, spleen, and both femurs were removed carefully and placed in RPMI solution on ice until sample processing. Cells were isolated from equivalent areas of skin tissue (∼30 mm2) by mincing and digesting the tissue with 0.28 units/mL Liberase TM (Roche) and 0.1 mg/mL of Deoxyribonuclease I (Worthington) in PBS with Ca+2 and Mg+2 for 60 min at 37 °C with shaking. Cells were isolated from one kidney per animal; kidney tissues were minced and digested in 2 mg/mL collagenase type I (Worthington) for 30 min at 37 °C according to a published protocol. Lung cells were harvested by digesting tissue in PBS (Ca+2 and Mg+2) with 1 mg/mL collagenase type 1 and 60 U Deoxyribonuclease I. Whole spleens were crushed onto a 40 μm cell strainer and washed with RPMI solution. Whole blood and cells from the spleen, bone marrow, kidneys, and lungs were treated with 1X Red Blood Cell (RBC) Lysis Buffer (BD Biosciences). Following isolation/digestion, cells from all tissues were filtered (40 μm), washed with PBS, and resuspended in RPMI solution prior to counting.

Flow Cytometry Staining and Analysis.  Cells were treated with Fc Block TruStain FcX (Biolegend) and stained with Zombie Aqua Viability dye (Biolegend) per the vendor’s recommendations. Cells were washed and surface staining was performed using mouse-specific fluorescent antibodies purchased from Biolegend. Different myeloid cell populations were analyzed in the live immune cells (Zombie Aqua-CD45+) gate. Percent and number of neutrophils (Ly6CintLy6Ghi) and monocytes (Ly6C+Ly6G−) were quantified. Representative flow cytometry gating is presented in SI Appendix, Fig. S10. Percent expression and mean fluorescence intensities of surface markers in the PA model (CXCR4, ICAM1, and CXCR1) were determined using fluorescence minus one (FMO) staining controls in the neutrophil gate (Ly6Ghi). All samples were processed using CytoFLEX flow cytometer (Beckman Coulter) and data were analyzed with FlowJo software version 10 (Tree Star).

Photoactivation (PA) Studies.  UBC-PA-GFP mice were shaved and a portion of the back was irradiated with one dose UVB light (500 mJ/cm2) as above. Only the skin area that will be photoconverted was exposed to UVB light, while the remaining skin was covered with aluminum foil. After 24 h from UVBinduced sterile injury, the entirety of the UVB-irradiated skin region was subjected to violet light (405 nm) using a 50 W light-emitting diode lamp with 0.37 numerical aperture (NA) fiber (Mightex) at the power of 100 mW (15 min exposure per area). This method was optimized based on a published protocol of skin-specific photoconversion (80). Kidneys and lungs were collected and processed for flow cytometry analysis 24 h after PA, as described above. The approach and timeline are outlined in the diagram in Fig. 5A. The percent of GFP+ neutrophils in the kidney was compared to that found in mice under three control conditions: 1) no UV and no PA, 2) UV but no PA, and 3) no UV but PA. CXCR4 expression levels and ICAM1hiCXCR1lo phenotype within GFP+ and GFP− neutrophils in the skin and kidney were evaluated by flow cytometry using mouse-specific fluorescently labeled antibodies purchased from Biolegend. To determine whether the GFP+ neutrophils in the kidney originated from the skin and not blood, skin in one group of mice was exposed to UV light and PA as described above (Group I), while in another group, the skin was exposed to UV light but PA was performed on the adjacent skin area not exposed to UV light (Group II) (diagram in SI Appendix, Fig. S7A). Kidneys were collected and processed for flow cytometry analysis as described above.

Gene Expression and Proteomic Analyses.  Skin, kidney, and lung samples were stored in RNAlater solution (QIAGEN). RNA was extracted by RNeasy Kit from QIAGEN, and complementary DNA (cDNA) was synthesized using the HighCapacity cDNA Synthesis Kit (Applied Biosystems). The transcripts of inflammatory chemokines, cytokines, and adhesion molecules were quantified by real-time qPCR using the primers listed in SI Appendix, Table S1 and normalized to the average of 18S transcript levels. The dose of UVB light used did not affect 18S expression in any of the organs. Relative expression of mRNA targets was determined using the standard formula 2^(−Ct) × coefficient. IFN scores were derived from the expression of 10 representative interferon-stimulated genes (ISG; Mx1, Irf7, Isg15, Isg20, Ifi44, ifit1, ifit3, oasl1, usp18, and ifi27l2a) as previously described (6). The mean and SD of the relative expression of each ISG were determined in the kidneys of mice not exposed to UV light (meannoUV and SDnoUV). These were then used to standardize the expression levels of each ISG in the kidneys of treated mice (IgG isotype + UVB or a-GCSF + UVB). The standardized expression levels were then summed for each mouse to derive an IFN expression score; i = expression of each ISG; Gene treatment = relative gene expression level after treatment; and Gene inoUV = relative gene expression level in mice not exposed to UVB light. ∑ 10 i=1 = Geneitreatment−meanGeneinoUV SD(GeneinoUV ) . Protein levels in plasma and skin tissue protein extracts were measured using defined analyte panels LEGENDplex Mouse Inflammation Panel and Inflammatory Chemokine Panel (Biolegend).

IF Staining of Frozen Kidney Tissues.  Saline-perfused kidneys were fixed in 4% paraformaldehyde for 1 h at room temperature and, following immersion in 30% sucrose, frozen in optimal cutting medium (Sakura Finetek). The 5-μm tissue sections were rehydrated in PBS prior to IF staining. Tissues were permeabilized with 0.1% Triton X-100 in PBS and subsequently blocked in PBS + 0.1% Triton X-100/5% BSA (bovine serum albumin)/5% rabbit serum. NE and endothelial cells were detected by staining with anti-mouse NE Cy5 (1:100, Bioss) and anti-mouse PECAM-1/CD31 Al488 (1:100, Biolegend), respectively, at 4 °C overnight. Neutrophil presence in the kidney was confirmed by staining with anti-mouse Ly6G Al647 (1:100, Biolegend). Tissues were mounted using ProLong Gold with 4′,6-diamidino-2-phenylindole (DAPI) mounting medium (Invitrogen) and imaged with Nikon Eclipse 90i fluorescent microscope (Histology and Imaging Core, University of Washington).

Skin Histologic Evaluation.  Formalin-fixed, paraffin-embedded skin tissue sections (4 to 5μm) were stained with hematoxylin and eosin at the University of Washington Histology and Imaging Core prior to UV, day 1, day 2, and day 6 following UVB irradiation (n = 5 females). Skin was scored in a blinded fashion for the following parameters: inflammation of the dermis/ subcutis, epidermal cell death, acanthosis, hyperkeratosis, serocellular crust formation, and erosion/ulceration. These parameters were scored on a scale of 0 to 4 depending on severity and extent with the exception of erosion/ ulceration, which was scored as present (1) or absent (0). Representative images were taken using NIS-Elements BR 3.2 64bit and plated in Adobe Photoshop with lighting adjustments applied to the entire image. Original magnification is stated.

Urine Measurements.  Urine protein levels were evaluated by the Bradford protein assay (Thermo Fisher Scientific). Urine samples were tested at 1:40 dilution in PBS, and protein concentration in urine was determined based on serial dilutions of known concentrations of BSA. The urine albumin/creatinine ratio was evaluated by using the Albuwell albumin assay and the Creatinine Companion Kit (Exocell) per the manufacturer's instructions.

Human Sample Collection and Flow Cytometry Analysis.  This study was approved by the University of Washington Institution Review Board (STUDY00001145). Whole blood was collected in heparinized tubes from healthy volunteers and SLE patients following informed consent. Neutrophils (PMNs) and PBMCs were isolated by Ficoll-Paque discontinuous gradient separation (GE Healthcare). PMNs were purified from the erythrocyte pellet by 5% dextran sedimentation. Following RBC lysis, cells were stained with fluorescently labeled antibodies purchased from Biolegend, and CXCR4 expression and percent ICAM1hiCXCR1lo cells were evaluated in PMNs (CD66b+) and LDGs (CD15+, CD14lo, and CD10+ in PBMCs (19)). The gating strategy for LDGs and ICAM1hiCXCR1lo staining based on FMO is shown in SI Appendix, Fig. S11. Samples were processed using CytoFLEX flow cytometer (Beckman Coulter), and data were analyzed with FlowJo software version 10 (Tree Star).

Statistical Analyses.  Data were analyzed using GraphPad Prism 7 software (GraphPad Software Inc.) and presented as mean ± SEM. The statistical difference between the two data groups was determined relative to nonirradiated controls (D-1) using Student's test. One-way ANOVA with multiple comparisons and Tukey post hoc was used to determine the statistical significance between the three groups.
