Phenylethanol Glycosides From Herba Cistanche Improve The Hypoxic Tumor Microenvironment And Enhance The Effects Of Oxaliplatin

Contact: joanna.jia@wecistanche.com / WhatsApp: 008618081934791

LIMEI WEN1,2*, JUNPING HU1*, JIAWEI ZHANG1 and JIANHUA YANG1,2

Abstract. Liver cancer is one of the most common types of malignant tumor and is characterized by high malignancy, rapid progression, high morbidity, and mortality. Oxaliplatin (OXA) has been reported to have marked efficiency against advanced liver cancer with tolerable toxicity. In solid tumors, the hypoxic microenvironment promotes epithelial‑mesenchymal transition (EMT), which can also induce drug resistance of liver cancer to platinum drugs. Herba Cistanche (Cistanche tubulosa) has been frequently used in traditional Chinese medicine and the phenylethanol glycosides from Herba Cistanche (CPhGs) are the major active components. The present study aimed to investigate the effects of CPhGs on viability, apoptosis, migration, and invasion of liver cancer cells. HepG2 liver cancer cells were divided into the control, DMSO, CoCl2, OXA, OXA + CoCl2 and CPhGs + OXA + CoCl2 groups. Subsequently, reverse transcription‑quantitative PCR and western blot analysis were performed to determine the expression levels of hypoxia‑inducible factor 1α (HIF‑1α), lysyl oxidase‑like 2 (LOXL2), and EMT‑related genes and proteins (i.e., E‑cadherin and Twist), in order to investigate the effects of CPhGs on liver cancer. The results demonstrated that CPhGs could enhance the effects of OXA on liver cancer, and inhibit the migration, invasion, and apoptotic rate of liver cancer cells. Additionally, CPhGs treatment effectively induced downregulation of HIF‑1α, LOXL2, and Twist, and upregulation of E‑cadherin. The present findings indicated that CPhGs triggered a significant increase in sensitivity to OXA and suppression of hypoxia‑induced EMT in liver cancer by inhibiting the HIF‑1α signaling pathway. Therefore, CPhGs may be considered an effective platinum drug sensitizer, which could improve chemotherapeutic efficacy in patients with liver cancer.

sistanch could improve chemotherapeutic efficacy in patients with liver cancer.

Introduction

Liver cancer is a malignant tumor that usually involves the digestive system, and consists of primary and secondary types. Primary liver cancer is divided into hepatocellular carcinoma and intrahepatic cholangiocarcinoma (1,2). Notably, liver cancer is associated with a high incidence and mortality rate worldwide (3). According to the World Health Organization, it is predicted that there will be >1,000,000 liver cancer‑related deaths by 2030, and of the newly confirmed cases, those in mainland China will account for 46.6%.

Oxaliplatin (OXA) has been reported to exert inhibitory effects on the growth of liver cancer with tolerable toxicity in clinical settings. Nevertheless, the overall efficiency of platinum‑based drug therapy is hampered by tumor cell resistance (4). It is well acknowledged that liver cancer exhibits lower sensitivity to chemotherapy compared with other types of cancer. The multidrug resistance of liver cancer has contributed to its resistance to numerous therapeutic agents (5). In a previous study, Xie and Zhong (6) reported that HepG2 cells exhibited poor sensitivity to adriamycin, 5‑fluorouracil, and cisplatin under hypoxic conditions. Despite the fact that platinum‑based chemotherapy agents are the major treatment options for cancer, resistance to these drugs does exist among patients. Furthermore, the prognosis of patients with liver cancer remains poor (7,8). To date, extensive efforts have been made to investigate drug resistance and to improve drug sensitivity in patients with liver cancer.

Under hypoxic conditions, revascularization occurs in cancer cells, which can lead to epithelial‑mesenchymal transition (EMT) and vascular mimicry (VM). EMT and VM may subsequently promote invasion and distant metastasis. Moreover, EMT has been speculated to serve a role as the driving force for cancer progression (9). In addition, hypoxia‑inducible factors (HIFs) are involved in neovessel formation, energy metabolism, cellular proliferation, invasion, and metastasis (10).

Lysyl oxidase (LOX)‑like 2 (LOXL2) protein is a member of the LOX family and is closely related to the covalent cross‑linking of collagen and elastin, which can result in fibrosis and is crucial for the integrity of the extracellular matrix (11). In a previous study, LOXL2 was considered to be closely related to the metastasis of cancer cells (12). Furthermore, LOXL2 has been shown to modulate the pathogenesis and progression of numerous types of malignant cancer through extra‑ and intracellular pathways, which were important indices for the evaluation of poor prognosis (13,14).

Herba Cistanche is a tonic herb commonly distributed in desert regions, which has been frequently used in traditional Chinese medicine (15,16). Cistanche tubulosa (C. tubulosa) is a natural herbal medicine commonly planted in Xinjiang Autonomous Region. The phenylethanol glycosides from Herba Cistanche (CPhGs) serve as one of the major active components of Herba Cistanche. Previously, Hu et al (17) indicated that CPhGs could attenuate liver injury in H22 tumor‑bearing mice and inhibit the growth of cancer cells. It was suggested that the underlying mechanism may be related to a reduction in serum α‑fetoprotein and could enhance immunity in the mice.

In the present study, a hypoxic model of HepG2 liver cancer cells was induced using CoCl2. On this basis, the present study aimed to investigate the effects of OXA on the proliferation, apoptosis, migration, and invasion of cancer cells in the presence of CPhGs under hypoxic conditions. In addition, the mRNA and protein expression levels of HIF‑1α, LOXL2, E‑cadherin and Twist were detected. Moreover, the exact mechanisms underlying the effects of CPhGs on the pathogenesis of liver cancer were investigated.

Materials and methods

Cell line.

The liver cancer cell line HepG2, as identified using the STR method, was provided by the Clinical Research Institution, First Affiliated Hospital of Xinjiang Medical University (Urumqi, China). The cells were cultured in high‑glucose DMEM (HyClone; Cytiva) containing 10% fetal bovine serum (FBS; Hyclone; Cytiva) at 37˚C in an incubator containing 5% CO2.

Preparation of CPhGs.

C. tubulosa extraction (CPhGs) was obtained from Hetian Dichen Biotech Co., Ltd. The content of CPhGs was >80%, among which the content of echinacoside and verbascose was 44.5 and 16.1%, respectively. Stems of C. tubulosa (Schrenk) Wight were collected in October 2016 from Xinjiang, China. The plant was identified by Dr. Junping Hu. All these voucher specimens (no. 201610) have been deposited at the Plant Herbarium, School of Pharmacy, Xinjiang Medical University, Xinjiang, China.

costanche extract from Hetian Dichen Biotech Co., Ltd.

Experimental design.

HepG2 cells (5x104 /ml) were treated with various concentrations of CPhGs (5, 25, 50, 100, 200 and 500 µg/ml) for 48 h at 37˚C (24 h after seeding) to screening CPhGs‑L/M/H dose. HepG2 cells (5x104 /ml) were divided into the following groups: i) Control group, cultured in high‑glucose DMEM; ii) DMSO group, cultured in 0.1% DMSO (v/v); iii) CoCl2 group (hypoxia model group), cultured in serum‑free DMEM containing 100 µM CoCl2; iv) OXA group (positive control group), cultured in 5 µM OXA (Beijing Solarbio Science & Technology Co., Ltd.); v) OXA + CoCl2 group, cultured in 5 µM OXA combined with 100 µM CoCl2; and vi) CPhGs groups, treated with CPhGs‑L/M/H (25, 50 and 100 µg/ml, respectively) combined with 5 µM OXA and 100 µM CoCl2.

Cell viability assay.

Cell viability was determined using a Cell Counting Kit‑8 (CCK‑8) assay according to the manufacturer's instructions (Beijing Solarbio Science & Technology Co., Ltd.) and as previously described (18). Cells (2.0x103 cells/well) were seeded in 96‑well plates. Subsequently, ~24 h after seeding, cells were treated for 48 h according to the treatment conditions in each group. The medium was then replaced with 100 µl high‑glucose DMEM, followed by the addition of 10 µl CCK‑8 reagent; the cells were incubated for 1 h at 37˚C. Optical density was measured using a multi‑detection microplate reader (Thermo Fisher Scientific, Inc.) at 450 nm. Six replicates were prepared for each condition.

Determination of apoptotic rate.

Apoptotic rate was determined using an Annexin V/PI Apoptotic Detection Kit (Beijing Solarbio Science & Technology Co., Ltd.). HepG2 cells (5x105 ) were inoculated in 6‑well plates at 37˚C in 5% CO2. Subsequently, ~24 h after treatment, the cells were cultured in serum‑free DMEM for 4 h. The cells were then digested using 0.25% trypsinized (Gibco; Thermo Fisher Scientific, Inc.), followed by at least three washes with pre‑cooled PBS. Upon centrifugation at 167.7 x g for 5 min at 4˚C, the cells were resuspended with 1X binding buffer and the concentration was adjusted to 1~5x106 /ml, and then stained with 5 µl Annexin V‑FITC and 5 µl PI for 15 min at room temperature. The cells then underwent flow cytometry using a BD LSRFortessa flow cytometer (BD Biosciences) and FlowJo 10.6.2 software (Tree Star, Inc.).

Table I. Primer sequences

Wound‑healing assay.

The inhibitory effects of CPhGs on cell migration were examined by wound‑healing assay (19). The cells were seeded into 6‑well plates until a 100% confluent monolayer was obtained. Subsequently, the cells were wounded using a 200‑µl pipette tip, washed with PBS and incubated with treatments in a serum‑free medium. After drug treatment, the wound‑healing speed was measured at 0, 12, 24 and 48 h, respectively. Wound images were obtained using a fluorescent microscope (Nikon Ti‑S, Japan) under a magnification of x10. Wound closure was measured by the wound distance in each period and expressed as a percentage of the initial wound distance at 0 h.

Transwell assays.

Cell invasion was assessed by Transwell assays. Cells (1x105 cells/ml) were suspended in 200 µl high‑glucose DMEM without FBS. The cells were then seeded onto Matrigel‑coated upper wells covered with a polyethylene terephthalate filter membrane (pore size, 8.0 µm). A total of 500 µl high‑glucose DMEM containing 10% FBS was placed in the lower chamber. Cotton swabs were used to remove the cells on the upper surface of the filter after 48 h at 37˚C. The cells that invaded through the membrane were fixed with 4% paraformaldehyde for 30 min. Subsequently, cells were stained with 0.1% crystal violet for 15 min at room temperature. Invading cells were observed under a fluorescent microscope (Nikon Ti‑S) at a magnification of x100.

Figure 1. Effects of different concentrations of CPhGs on HepG2 cell viability after 48 h.

Reverse transcription‑quantitative PCR (RT‑qPCR).

Total RNA was extracted from HepG2 cells using TRIzol® reagent (Invitrogen; Thermo Fisher Scientific, Inc.) and cDNA synthesis was carried out using the PrimeScript RT reagent kit (Takara Bio, Inc.) according to manufacturer's protocol. qPCR was performed on a 7500 Real‑Time PCR system (Applied Biosystems; Thermo Fisher Scientific, Inc.) using TB green™ Premix Ex Taq™ (Takara Bio, Inc.) according to manufacturer's protocol. The primers used for qPCR are listed in Table I. PCR conditions consisted of denaturation at 95˚C for 30 sec, followed by 40 cycles of denaturation at 95˚C for 5 sec and annealing at 60˚C for 30 sec. Finally, the amplification results were analyzed using the 2‑ΔΔCq method (20).

Western blot analysis.

Proteins were extracted from cells treated for 48 h by homogenization in RIPA lysis buffer (Thermo Fisher Scientific, Inc.) containing protease and phosphatase inhibitors. Cell protein content was determined using the BCA method. Proteins (40 µg) were then separated by SDS‑PAGE on a 10% gel and transferred to a PVDF membrane. The membrane was blocked in 5% nonfat milk for 1 h at 4˚C, and incubated with the following primary antibodies: β‑actin (1:5,000; cat. no. bs‑0061R; BIOSS), HIF‑1α (1:1,000; cat. no. ab179483; Abcam), LOXL2 (1:500; cat. no. ab179810; Abcam), E‑cadherin (1:1,000; cat. no. bs‑10009R; BIOSS) and Twist1 (1:500; cat. no. bs‑2441R; BIOSS) overnight at 4˚C. The membrane was then incubated with goat anti‑rabbit IgG H&L secondary antibodies (1:2,000; cat. no. ab205718; Abcam) for 4 h at room temperature. After washing with TBS‑0.05% Tween‑20, the blots were visualized using the Enhanced Chemiluminescence system (Amersham; Cytiva). The relative intensity of the bands was semi‑quantified by densitometric analysis using ImageJ2x software (version 2.1.4.7; Rawak Software Inc.), and densitometric plots of the results were normalized to the intensity of β‑actin.

Figure 2. Effects of CPhGs combined with OXA on the viability of HepG2 cells at 48 h.

Statistical analysis.

SPSS 19.0 software (SPSS, Inc.) was utilized for data analysis. Data are presented as the mean ± standard deviation and were analyzed by one‑way ANOVA followed by Tukey's post hoc test. P<0.05 was considered to indicate a statistically significant difference. All experiments were performed at least in triplicate.

Results

Effects of CPhGs on cell viability.

HepG2 cells were treated with various concentrations of CPhGs (5, 25, 50, 100, 200 and 500 µg/ml) for 48 h (24 h after seeding). As shown in Fig. 1, there was a significant decline in the viability of cells treated with 200 and 500 µg/ml CPhGs compared with that of the control group (P<0.05). These findings indicated that CPhGs could modulate cell viability in a dose‑dependent manner.

CPhGs enhance the effects of OXA on liver cancer.

The effects of CPhGs on OXA‑modulated HepG2 cell viability were subsequently assessed (Fig. 2). After ~48 h, the combination of CPhGs and OXA significantly decreased the viability of HepG2 cells compared with that in the OXA +CoCl2 group. Specifically, CPhGs‑M + OXA + CoCl2 and CPhGs‑H + OXA + CoCl2 significantly inhibited the viability of HepG2 cells compared within the OXA + CoCl2 group (P<0.05 and P<0.01, respectively).

Figure 3. Inhibitory effects of CPhGs combined with OXA on the migration and invasion of HepG2 cells at 48 h.

CPhGs inhibits the migration and invasion of liver cancer cells.

To further study the invasive potential and migratory ability of liver cancer cells following treatment with CPhGs and OXA, wound‑healing and Transwell assays were performed. The wound‑healing assay indicated that, compared with that in the DMSO group, the migration of HepG2 cells was reduced following treatment with CoCl2, OXA, and CPhGs (200 or 500 µg/ml) (P<0.05; Fig. 3A and B). For the Transwell assay, the invasive ability of cells was markedly inhibited in the co-treatment groups (CPhGs + OXA + CoCl2) compared with that in the OXA + CoCl2 group (P<0.01; Fig. 3C and D). Conversely, in the co‑treatment groups (CPhGs + OXA + CoCl2), the invasive potential and migratory ability of cells were markedly inhibited.

Effects of CPhGs and OXA on apoptosis.

Following treatment with the combination of CPhGs and OXA for 48 h, the HepG2 cells were stained with Annexin V‑FITC and PI, followed by flow cytometry to determine cellular apoptosis. As shown in Fig. 4A, the co‑treatment groups (CPhGs‑L/M/H + OXA + CoCl2) exhibited a gradual elevation in the proportion of apoptotic cells with the increase in CPhGs concentration. Most of the cells treated with CPhGs and OXA were localized in the Q4 region, which indicated that the combination of CPhGs and OXA induced apoptosis at the early stage. Compared with in the OXA + CoCl2 group, a significant elevation in the apoptotic rate of cells was detected in the groups treated with OXA, CoCl2, and moderate or high doses of CPhGs (P<0.01; Fig. 4B). These findings indicated that the combination of OXA and CPhGs may contribute to the apoptosis of HepG2 cells.

mRNA expression levels of HIF‑1α, LOXL2, E‑cadherin and Twist following CPhGs and OXA co‑incubation.

There were no statistical differences in the mRNA expression levels of HIF‑1α, LOXL2, E‑cadherin and Twist between the control and DMSO groups (P>0.05; Fig. 5A‑D). Conversely, CoCl2 induced a significant increase in the mRNA expression levels of LOXL2, HIF‑1α and Twist compared with those in the DMSO group (P<0.01; Fig. 5A, B and D). Compared with those in the OXA + CoCl2 group, the mRNA expression levels of LOXL2, HIF‑1α and Twist were significantly enhanced in the CPhGs‑H + OXA + CoCl2 groups (P<0.01; Fig. 5A, B and D). By contrast, CoCl2 induced a significant downregulation in the mRNA expression levels of E‑cadherin compared with those in the DMSO group (P<0.01; Fig. 5C). All concentrations of CPhGs combined with OXA and CoCl2 were able to upregulate the mRNA expression levels of E‑cadherin compared with those in the OXA + CoCl2 group (P<0.01; Fig. 5C). These results indicated that the combination of CPhGs and OXA effectively inhibited the EMT under hypoxic conditions.

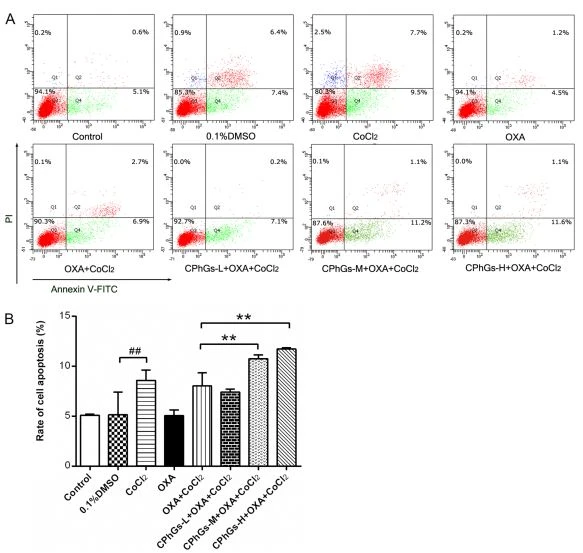

Figure 4. Effect of CPhGs combined with OXA on the percentage of apoptotic HepG2 cells at 48 h, as determined by Annexin‑V/PI double staining.

Protein expression levels of HIF‑1α, LOXL2, E‑cadherin, and Twist following CPhGs and OXA co‑incubation. The results of western blotting revealed that the protein expression levels of HIF‑1α, LOXL2, and Twist were upregulated under hypoxic conditions compared with those in the DMSO group. By contrast, the protein expression levels of E‑cadherin were downregulated under hypoxic conditions (P<0.01; Fig. 6A and B). Notably, the protein expression levels of HIF‑1α, LOXL2, and Twist were significantly decreased in the CPhGs‑M + OXA + CoCl2 or CPhGs‑H + OXA + CoCl2 groups compared with those in the OXA + CoCl2 group (P<0.01; Fig. 6A and B). Compared with the DMSO group, the CoCl2 treatment significantly decreased the expression level of E‑cadherin. In the CPhGs groups, the protein expression levels of E‑cadherin were significantly increased compared with those in the OXA + CoCl2 group (P<0.01; Fig. 6B). These findings indicated that CPhGs treatment could effectively inhibit the downregulation of E‑cadherin, and the upregulation of HIF‑1α, LOXL2, and Twist induced by CoCl2.

cistanche reduce cholesterol

Discussion

Hypoxia is a common feature in the cancer microenvironment; this is mainly associated with the fact that the proliferation of cancer cells is more rapid compared with the vascular formation of aberrant neovessels. In addition, other biological processes, including proliferation, metastasis, and drug sensitivity are affected by hypoxia (21). The tumor hypoxic microenvironment is crucial for the pathogenesis and progression of cancer, and it is also important in the drug resistance and vascularization of liver cancer (22).

In the present study, HepG2 cells were treated with various concentrations of CPhGs, among which CPhGs (200 µg/ml) could significantly induce a decrease in cell viability. Notably, CPhGs could modulate cellular viability in a dose‑dependent manner. Under hypoxic conditions, the combination of OXA and CPhGs (50 or 100 µg/ml) significantly inhibited the viability of HepG2 cells compared with OXA treatment alone. A similar dose‑dependent trend was observed in the migration and invasion assays of liver cancer cells. Currently, extensive studies have been conducted to investigate the roles of cancer cell apoptosis in the pathogenesis of liver disease (23‑26). Several strategies have been developed for treating liver cancer by promoting apoptosis (27‑29); therefore, interference in HepG2 cell apoptosis may serve as a promising candidate for the prevention and treatment of liver cancer. The apoptosis of HepG2 cells was significantly enhanced following treatment with the combination of CPhGs‑M/‑H and OXA compared with that in cells treated with OXA alone. Therefore, it was indicated that CPhGs could significantly enhance the anti-tumor effects of OXA.

HIF‑1α can upregulate the expression levels of E‑cadherin, N‑cadherin, and Vimentin, as well as some transcription factors, such as Snail1/2, Zeb1, and Twist1. Subsequently, this might lead to a loss of cellular polarity, loosening of cell‑cell junctions, alterations in cytoskeletal protein, and the migration and invasion of cancer cells, which could result in the translocation of cancer cells to the circulatory system through the basilar membrane and subsequent metastasis (30). In the present study, CoCl2 was used to induce a model of hypoxia, which triggered an increase in the viability of HepG2 cells, as well as cell migration and invasion. Furthermore, the mRNA and protein expression levels of HIF‑1α were significantly increased, indicating that CoCl2 induced the generation of a hypoxic microenvironment. Treatment with the combination of CPhGs and OXA markedly inhibited the mRNA and protein expression levels of HIF‑1α induced by hypoxia. These findings suggested that CPhGs could attenuate the microenvironment of liver cancer in a dose‑dependent manner.

E‑cadherin is a Ca2+‑dependent adhesion molecule, which has a key role in cell‑cell adhesion, maintenance of the integrity of tissue structure, and signaling transmission. In cases of downregulation or even loss of adhesion function, cancer cells may exhibit uncontrolled proliferation and dedifferentiation, which may promote increased invasion of cancer cells and subsequent metastasis(31). In addition, E‑cadherin is crucial for inhibiting the EMT of cancer cells, which is closely associated with the differentiation, invasion, metastasis and prognosis of multiple epithelial malignancies. EMT‑inducing transcription factors (EMT‑TFs), such as Twist, Snail, and Zeb, are crucial for EMT. Hypoxia has been reported to activate signaling pathways that induce EMT‑TF expression; notably, it could directly promote EMT via the transcriptional activation of these factors (32). The twist is a highly conserved helix‑ring‑helix transcription factor that has been newly identified in recent years. High Twist expression has been detected in numerous types of cancer cells(33). Therefore, it is essential to investigate the association between Twist expression and the migration or metastasis of cancer cells, as well as clinical prevention and treatment of metastasis(34). In the present study, it was revealed that the mRNA and protein expression levels of E‑cadherin were downregulated in the presence of hypoxia, whereas the mRNA and protein expression levels of Twist were elevated. These findings were consistent with the results of invasion and migration assays, which implied that hypoxia may contribute to the occurrence of EMT. Following treatment with OXA, the protein expression levels of E‑cadherin were downregulated; this indicated that OXA exhibited poor efficiency in inhibiting the growth of liver cancer cells, whereas it could promote EMT. However, in combination with CPhGs, the sensitivity of HepG2 cells to OXA exhibited marked improvement in the presence of hypoxia. Furthermore, cotreatment with CPhGs and OXA could inhibit cellular viability, migration, and invasion of HepG2 cells. The present study only detected Twist and E‑cadherin expression; therefore, future studies aim to focus on more EMT‑related markers, in order to evaluate the inhibitory effect of CPhGs on hypoxia‑induced EMT in liver cancer.

HIF‑1α has been reported to promote the expression of LOXL2, and to enhance the migration and invasion of hepatic cancer cells, which may be closely related to the poor prognosis of liver cancer (30). In a previous study, the expression levels of LOXL2 in adjacent liver cancer tissues were markedly increased compared with those in the cancer tissues (35). In addition, it was closely related to the invasion and metastasis of liver cancer. LOXL2 gene silencing by small interfering RNA inhibited the proliferation of HepG2 and SMCC‑7721 cells, which resulted in cell cycle arrest of cancer cells and increased apoptosis (36). Shao et al (35) investigated the correlation between LOXL2 in liver cancer samples, clinicopathological factors, VM, and prognosis among 201 cases that received surgery for treatment. It was hypothesized that LOXL2 served important roles in the pathogenesis and progression of liver cancer, which may serve as a target for drug development. Furthermore, Peng et al (37) demonstrated that LOXL2 could activate the Snail/E‑cadherin and Src kinase/Focal adhesion kinase signaling pathways, which may contribute to the pathogenesis and progression of EMT of gastric cancer cells. In the present study, under hypoxic conditions, the mRNA and protein expression levels of LOXL2 were increased, whereas its expression was downregulated following treatment with OXA. Furthermore, treatment with a combination of CPhGs and OXA resulted in obvious downregulation of LOXL2 expression, which may effectively aid the antitumor effects of OXA on liver cancer.

costanche effectively aids the antitumor effects of OXA on liver cancer.

For more information, please click here.

There are some limitations to the present study. The present study should have used two more liver cancer cell lines, including the SMCC‑7721 cell line, but these could not be used as it was not possible to purchase these cell lines because they were misidentified and were derived from HeLa cells. In addition, the present study did not analyze the antioxidant effects of different concentrations of CPhGs in the cells.

In conclusion, CPhGs could alternate the hypoxic tumor microenvironment of liver cancer cells by modulating the HIF‑1α signaling pathway. In addition, the sensitivity of liver cancer cells to OXA was significantly elevated in response to treatment with a combination of CPhGs and OXA. These findings may provide a novel treatment strategy to improve the sensitivity of liver cancer to chemotherapy.
