How Is The Phosphoinositide 3-kinase Inhibitor Alpelisib Used For Lowe Syndrome/Dent Disease?

The phosphoinositide 3-kinase inhibitor alpelisib restores actin organization and improves proximal tubule dysfunction in vitro and in a mouse model of Lowe syndrome and Dent disease

Contact: joanna.jia@wecistanche.com / WhatsApp: 008618081934791

Marine Berquez^1,5 , Jonathan R. Gadsby^2,5 , Beatrice Paola Festa^1,5 , Richard Butler³ , Stephen P. Jackson², Valeria Berno⁴ , Alessandro Luciani1 , Olivier Devuyst^1,6 and Jennifer L. Gallop^2,6

KEYWORDS: cytoskeleton; endocytosis; lipids; proximal tubule; renal Fanconi syndrome

Loss-of-function mutations in the OCRL gene, which encodes the phosphatidylinositol [PI] 4,5-bisphosphate [PI(4,5)P2] 5-phosphatase OCRL, cause defective endocytosis and proximal tubule dysfunction in Lowe syndrome and Dent disease 2. The defect is due to increased levels of PI(4,5)P2 and aberrant actin polymerization, blocking endosomal trafficking. PI 3-phosphate [PI(3)P] has been recently identified as a coactivator with PI(4,5)P2 in the actin pathway. Here, we tested the hypothesis that phosphoinositide 3-kinase (PI3K) inhibitors may rescue the endocytic defect imparted by OCRL loss, by rebalancing phosphoinositide signals to the actin machinery. The broad-range PI3K(phosphoinositide 3-kinase) inhibitor copanlisib and class IA p110a PI3K(phosphoinositide 3-kinase) inhibitor alpelisib reduced aberrant actin polymerization in OCRL-deficient human kidney cells in vitro. Levels of PI 3,4,5-trisphosphate, PI(4,5) P2, and PI(3)P were all reduced with alpelisib treatment, and siRNA knockdown of the PI3K catalytic subunit p110a phenocopied the actin phenotype. In a humanized OcrlY/- mouse model, alpelisib reduced endosomal actin staining while restoring stress fiber architecture and levels of megalin at the plasma membrane of proximal tubule cells, reflected by improved endocytic uptake of low molecular weight proteins in vivo. Thus, our findings support the link between phosphoinositide lipids, actin polymerization, and endocytic trafficking in the proximal tubule and represent a proof-of-concept for repurposing alpelisib in Lowe syndrome/Dent disease 2.

Translational Statement

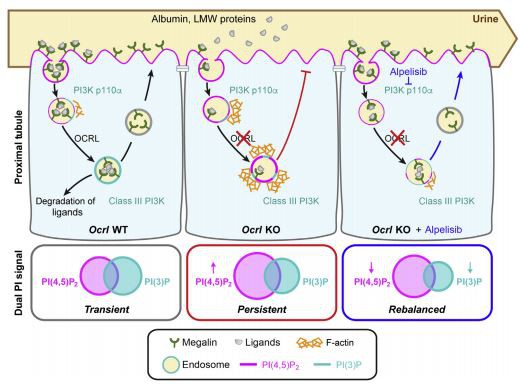

Lowe syndrome and Dent disease 2, caused by mutations in the phosphoinositide lipid 5-phosphatase OCRL, manifest with proximal tubule dysfunction and low-molecular-weight proteinuria with only supportive care available. Our findings reveal that the phosphoinositide 3-kinase inhibitor alpelisib, which is currently approved for cancer therapy, alleviates the aberrant phosphoinositide balance and actin phenotype associated with the OCRL loss, causing a substantial improvement of the endocytic machinery and absorptive capacity in cellular systems and a humanized mouse model for Lowe syndrome/Dent disease 2. Given its apparent safety profile, alpelisib is a promising candidate for drug repurposing in Lowe syndrome and Dent disease.

Epithelial cells lining the proximal tubules (PTs) of the kidney possess an efficient receptor-mediated endolysosomal pathway that recovers and processes essential substances that are filtered through the glomerulus. Congenital disorders affecting endolysosomes cause PT dysfunction (renal Fanconi syndrome) with urinary loss of solutes and low-molecular-weight (LMW) proteins, often complicated by metabolic and growth complications and development of chronic kidney disease.¹ Inactivating mutation in OCRL has been associated with Dent disease 2 (MIM #300555), a disorder characterized by PT dysfunction, kidney stones, and progressive kidney failure, and with the oculocerebrorenal syndrome of Lowe (MIM #309000), which displays, in addition to the PT dysfunction and kidney failure, systemic manifestations such as congenital cataracts, cognitive disability, and hypotonia.^2-4 Current treatments for Dent disease 2 and Lowe syndrome are only supportive.

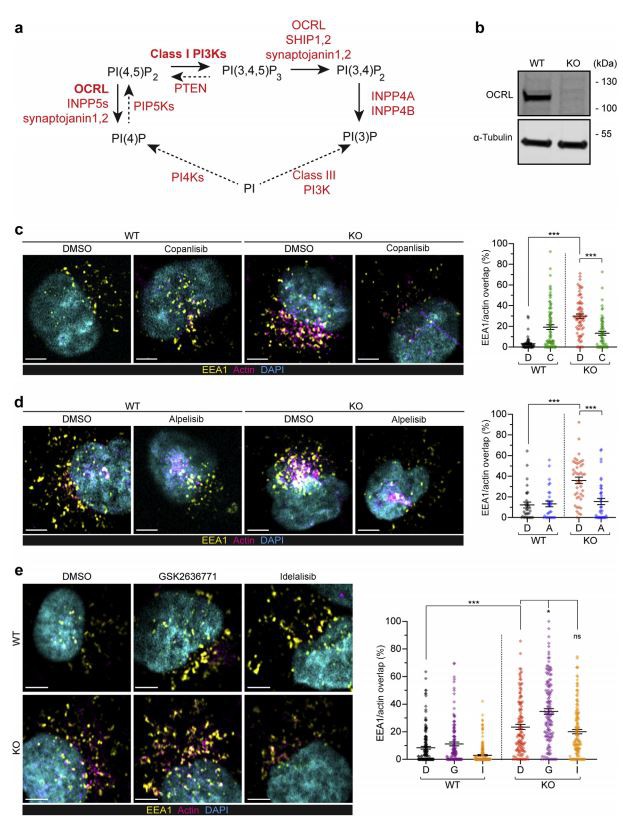

Figure 1 | PI3K(phosphoinositide 3-kinase) inhibitors relieve aberrant actin assembly at endosomes in an OCRL-deficient human kidney (HK2) cell model. (a) Steps of phosphoinositide lipid conversion relevant for this study indicating the conversions between PI(4,5)P2, PI(3,4,5)P2, and PI(3)P with the most relevant enzymes in bold, most relevant conversions in solid lines, and others in dashed lines. PI(4,5)P2 is elevated in Lowe syndrome due to the lack of 5-phosphatase activity from OCRL and is made from the phosphorylation of PI by phosphatidylinositol 4-kinases (PI4Ks) and PI(4) P 5-kinase (PIP5K). PI(4,5)P2 is phosphorylated by class I PI3Ks to produce PI(3,4,5)P3. PI(3,4,5)P3 can be dephosphorylated to PI(4,5)P2 by PTEN or to PI(3,4)P2 by SH-2–containing inositol 50 polyphosphates (SHIP) 1 and 2, synaptojanin 1 and 2, and also OCRL, although this is (continued)

Figure 1 | (continued) thought to be minor. PI(3,4)P2 is dephosphorylated to PI(3)P by inositol polyphosphate-4-phosphatase type I A (INPP4A) and B. PI(3)P is also made at endosomes via the phosphorylation of PI by class III PI3K(phosphoinositide 3-kinase), vacuolar sorting protein Vps34. (b) Western blots illustrating OCRL expression loss in the HK2 OCRL CRISPR knockout (KO) cell line compared with wild-type (WT) HK2 control cells with tubulin as the loading control. (c–e) Representative Airyscan confocal micrographs and quantification of early endosome antigen 1 (EEA1)/actin overlap (expressed as a percentage of total detected EEA1þ vesicles) for HK2 WT or OCRL KO cells treated with either dimethylsulfoxide (DMSO) (d) or the indicated inhibitor and fixed using the 4% formaldehyde fix. In all cases, the images illustrate a single z-slice from an Airyscan-processed confocal stack of cells immunolabeled for EEA1 (yellow), phalloidin (actin, magenta), and 40,6-diamidino-2-phenylindole (DAPI) (cyan). Bars=5 mm. In the quantifications, the lines indicate the mean±SEM and each data point is an individual cell. In all experiments, treatments were applied 16 hours before fixation. In all quantifications, statistical significance was assessed by a Kruskal-Wallis (K-W) analysis of variance with Dunn's multiple comparisons test. (c) WT or KO cells treated with either DMSO or 100 nM of copanlisib, demonstrating rescue of the actin-endosomal overlap. K-W test: ***P < 0.001, multiple comparisons; WT DMSO versus KO DMSO, KO DMSO versus KO copanlisib both ***P < 0.001, WT copanlisib versus KO copanlisib P=0.44 (not significant [ns]). N=52, 85, 67, and 63 cells for WT DMSO, WT copanlisib, KO DMSO, and KO copanlisib, respectively. (d) WT or KO cells treated with either DMSO or 10 mM of alpelisib, demonstrating rescue of the actin-endosomal overlap. K-W test: ***P < 0.001, multiple comparisons; WT DMSO versus KO DMSO, KO DMSO versus KO alpelisib both ***P < 0.001, WT alpelisib versus KO alpelisib. P > 0.99 (ns). N=31, 30, 43, and 41 cells for WT DMSO, WT alpelisib, KO DMSO, and KO alpelisib, respectively. (e) WT or KO cells treated with either DMSO, 10 mM of GSK2636771, or 10 mM of idelalisib, demonstrating that neither compound is able to significantly reduce the actin-endosomal overlap. K-W test: ***P < 0.001, multiple comparisons; WT DMSO versus KO DMSO, ***P < 0.001, KO DMSO versus KO GSK, *P=0.04, KO DMSO versus KO idelalisib, P > 0.99 (ns). N=159, 130, 203, 122, 131, and 145 cells for WT DMSO, WT GSK2636771, WT idelalisib, KO DMSO, KO GSK2636771, and KO idelalisib, respectively. To optimize viewing of this image, please see the online version of this article at www.kidney-international.org

How is the phosphoinositide 3-kinase inhibitor alpelisib used for Lowe syndrome/Dent disease?

LMW proteinuria is a consistent feature observed in Lowe syndrome/Dent disease 2, revealing that OCRL affects receptor-mediated endocytosis.⁵ OCRL encodes the phosphatidylinositol (PI) 4,5-bisphosphate [PI(4,5)P2] 5- phosphatase OCRL,⁶ which controls lipid identity in the endolysosomal pathway by degrading PI(4,5)P2 (Figure 1a). Deficient degradation of PI(4,5)P2 through OCRL is implicated in the failure to uncoat clathrin-coated vesicles in fibroblasts, accompanied by the formation of “comet” structures of polymerized, filamentous actin from the resulting aberrant early endosome-like organelles.^7-9 In other cell types, most notably the PT cells of the kidney, OCRL deficiency results in F-actin “basket” structures surrounding aberrant endolysosomal organelles.¹⁰ The excess F-actin blocks membrane trafficking through the endocytic and endolysosomal pathway, and is suggested to decrease recycling of the multiligand receptor megalin to the apical membrane, aggravating the defect within the endolysosomal pathway.¹¹ In agreement with a prime role of aberrant F-actin, defective endocytic uptake caused by OCRL mutations is alleviated by targeting the actin machinery with latrunculin B, or by depleting actin regulatory proteins as well as by small, interfering RNA (siRNA)- mediated depletion of PI(4)P 5-kinase to adjust the synthesis of PI(4,5)P2^7,10 (Figure 1a).

Actin polymerization is increasingly understood as arising not only from PI(4,5)P2 but also from other phosphoinositide lipids. For example, PI(3,4,5)P3 activates Rho-type GTPase Rac, and PI(3)P acts in conjunction with PI(4,5)P2 to stimulate actin polymerization downstream of another Rho-type GTPase, Cdc42.^12-14 The interconversion of these phosphoinositides is coupled to the movement of lipids through the endocytic and endosomal pathway. PI(4,5)P2 is phosphorylated by class I phosphatidylinositol- 30 -kinase (PI3K) to PI(3,4,5)P3 at the plasma membrane and becomes progressively dephosphorylated to PI(3,4)P2 and PI(3)P or PI(4,5)P2. ^14,15 PI(3)P is enriched at endosomes, where it is essential for their function and predominantly made by direct by phosphorylation of PI by class III PI3K(phosphoinositide 3-kinase), Vps34¹⁶ (Figure 1a). In an OCRL-deficient retinal pigmented epithelial (RPE) cell line, actin comets generated are reduced by treatment with PI3K(phosphoinositide 3-kinase) inhibitors wortmannin and Vps34-IN1, in agreement with biochemical studies showing a coregulation of actin via the coincidence of both PI(3)P and PI(4,5)P2. ¹⁴

The rescue of endocytosis observed when targeting the actin machinery in OCRL patient and knockout (KO) cells,^7,10 together with upstream regulation of actin by PI3K(phosphoinositide 3-kinase) activity¹⁴ and the highly interconnected nature of PI conversion, provides an intriguing possibility that class I PI3K(phosphoinositide 3-kinase) inhibitors may be of utility in Lowe syndrome. Such inhibitors, developed for cancer therapy, are approved for clinical use¹⁷ and are thus potentially amenable for drug repurposing. Although compounds such as copanlisib¹⁸ have broad specificity and side effects, recent success has been demonstrated for more specific inhibitors. Idelalisib,¹⁹ which targets PI3K(phosphoinositide 3-kinase) subunit p110d, is approved for chronic lymphocytic lymphoma, and alpelisib, which targets p110a, is approved for use in breast cancer.^20,21 Moreover, alpelisib has shown clinical benefit in children with PROS/CLOVES syndrome,²² a rare overgrowth syndrome resulting from activation of PIK3A.

Here, we tested the hypothesis that class I PI3K(phosphoinositide 3-kinase) inhibitors may rescue the endocytic defect due to the loss of OCRL, using established cellular and mouse models.^10,11,23 We show that the inhibition of PI3K(phosphoinositide 3-kinase) activity via copanlisib or alpelisib, or siRNA-mediated depletion of the alpelisib-target catalytic subunit p110a reduces the excess actin polymerization in human kidney (HK2) cells deficient in OCRL. Focusing on alpelisib as the most specific compound for clinical use, we show that it reduces actin polymerization and improves uptake through the endolysosomal pathway in PT cells from humanized Ocrl^Y/- mice in vitro. Furthermore, alpelisib treatment in vivo alleviates proteinuria, reduces PT dysfunction, and rescues the cellular levels of megalin in humanized Ocrl^Y/- mice. These results support alpelisib as a candidate for drug repurposing in Lowe syndrome and Dent disease 2.

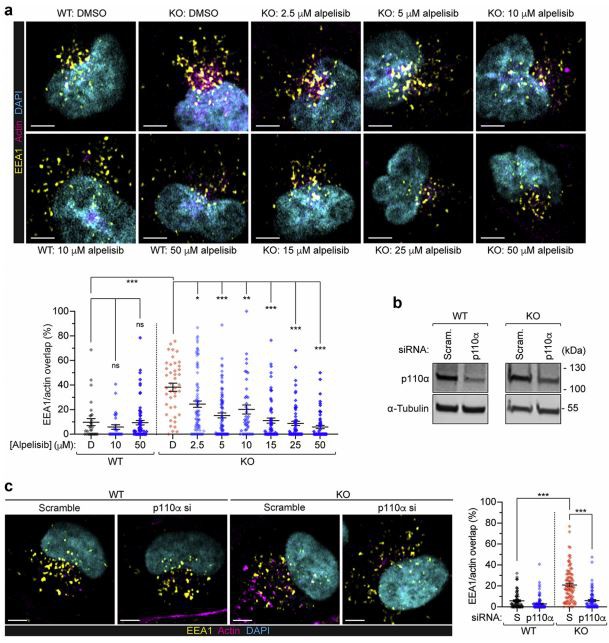

Figure 2 | Alpelisib's effects on actin are dose-responsive and recapitulated by siRNA of PI3K(phosphoinositide 3-kinase) p110a. (a) Representative Airyscan confocal micrographs (fixed using the 4% formaldehyde fifix and immunolabeled for early endosome antigen 1 [EEA1], yellow; actin [phalloidin], magenta; and 40,6-diamidino-2-phenylindole [DAPI], cyan; bars = 5 mm) and quantification of wild-type (WT) or knockout (KO) human kidney (HK2) cells treated with dimethylsulfoxide (DMSO) or the indicated doses of alpelisib for 16 hours, demonstrating dose-responsive rescue of the actin-endosomal overlap. In all cases, the lines indicate mean±SEM and the points indicate individual cells. N = 31, 30, 71, 42, 90, 89, 41, 69, 66, and 67 cells for WT control, WT 10 mM, WT 50 mM, KO DMSO, and KO 2.5, 5, 10, 15, 25, and 50 mM alpelisib, respectively. Statistical significance assessed by the Kruskal-Wallis (K-W) test with Dunn’s multiple comparisons test: overall ***P < 0.001, multiple comparisons; WT DMSO versus KO DMSO, KO DMSO versus KO 5, 15, 25, and 50 mM alpelisib all ***P < 0.001, KO DMSO versus KO 2.5 mM alpelisib *P=0.0131, KO DMSO versus KO 10 mM alpelisib **P = 0.0043, WT DMSO versus both WT 10 and 50 mM alpelisib P > 0.9999 (not significant [ns]). (b) Western blot for p110a and the loading control a-tubulin of WT or KO cells treated with either scramble (Scram.) or p110a siRNA. (c) Representative Airyscan confocal micrographs (fixed using the 4% formaldehyde fix and immunolabeled for EEA1, yellow; actin [phalloidin], magenta; and DAPI, cyan; bars=5 mm) and quantification of WT or KO cells treated with either scramble (S) or p110a siRNA, demonstrating reduction of EEA1-actin overlap on p110a depletion. K-W test with Dunn’s multiple comparisons test: ***P < 0.001, multiple comparisons; WT scramble versus KO scramble, KO scramble versus KO p110a siRNA both ***P < 0.001. N =79, 108, 93, and 131 cells, respectively. HK2, human kidney; PI3K, phosphatidylinositol-30 -kinase; siRNA, small, interfering RNA. To optimize viewing of this image, please see the online version of this article at www.kidney-international.org.

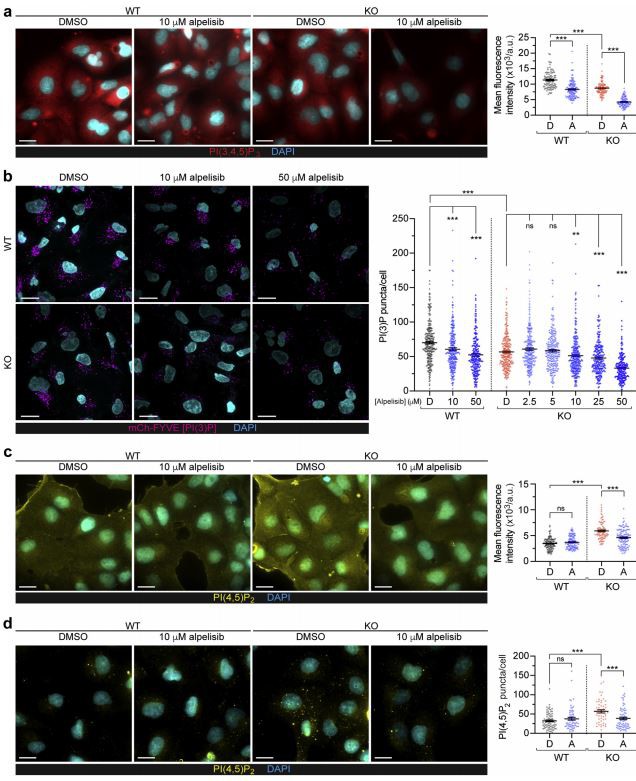

Figure 3 | Levels of phosphatidylinositol (PI) 4,5-bisphosphate [PI(4,5)P2] are elevated with OCRL knockout (KO), and PI(3,4,5)P3, PI(4,5)P2, and PI(3)P are suppressed by alpelisib treatment. In all experiments, the indicated treatments were applied 16 hours before fixation. In the quantifications, the lines indicate the mean±SEM, and each data point results from an individual cell. In all quantifications, statistical significance was assessed by a Kruskal-Wallis (K-W) analysis of variance with Dunn’s multiple comparisons test. Bars=20mm in all images. (a) Representative widefield micrographs of wild-type (WT) or KO human kidney (HK2) cells treated with dimethylsulfoxide (DMSO) or 10 mM of alpelisib and then fixed with the plasma membrane fifix and immunolabeled for PI(3,4,5)P3 (red) and 40,6-diamidino-2-phenylindole (DAPI) (cyan), with quantification of the mean cellular PI(3,4,5)P3 labeling intensity, showing the effectiveness of alpelisib treatment on PI(3,4,5)P3 synthesis. N=96, 128, and 109 cells for WT DMSO, WT alpelisib, KO DMSO, and KO alpelisib, respectively. K-W (continued)

Figure 3 | (continued) test: overall ***P < 0.001, multiple comparisons; WT DMSO versus KO DMSO, WT DMSO versus WT alpelisib, and KO DMSO versus KO alpelisib all ***P < 0.001. (b) Representative confocal micrographs of WT or KO HK2 cells treated with either DMSO, 10 mM-, or 50-mM alpelisib for 16 hours and then fixed with the Golgi fix and labeled using the m Ch-2xFYVE PI(3)P probe (magenta) and DAPI (cyan), with quantification of the number of PI(3)P-positive puncta detected in cells treated with a range of alpelisib concentrations, as indicated, showing PI(3)P-positive punctae are reduced in a dose-responsive fashion. N=280, 254, 210, 287, 324, 239, 340, 250, 240, and 215 cells for WT control, WT 10 mM, WT 50 mM, KO DMSO, and KO 2.5, 5, 10, 25, and 50 mM alpelisib, respectively. K-W test: overall ***P < 0.001, multiple comparisons; WT DMSO versus KO DMSO, WT DMSO versus WT 10 and 50 mM alpelisib, KO DMSO versus KO 50 mM alpelisib all ***P < 0.001; KO DMSO versus KO 2.5 and 5 mM alpelisib both P > 0.9999 (not significant [ns]); KO DMSO versus KO 10 mM alpelisib **P=0.0049; KO DMSO versus KO 25 mM alpelisib ***P=0.0002. (c) Representative widefield micrographs of WT or KO HK2 cells treated with DMSO or 10 mM of alpelisib and then fixed with the plasma membrane fifix and immunolabeled for PI(4,5)P2 (yellow) and DAPI (cyan), with quantification of the mean cellular PI(4,5)P2 labeling intensity, showing increased plasma membrane PI(4,5)P2 in KO cells, which is reduced by alpelisib treatment, specifically in KO cells. N=126, 112, 85, and 116 cells for WT DMSO, WT alpelisib, KO DMSO, and KO alpelisib, respectively. K-W test: overall ***P < 0.001, multiple comparisons; WT DMSO versus KO DMSO and KO DMSO versus KO alpelisib both ***P < 0.001; WT DMSO versus WT alpelisib P=0.4752 (ns). (d) Representative widefield micrographs of WT or KO HK2 cells treated with DMSO or 10 mM of alpelisib and then fixed with the 4% formaldehyde fifix and immunolabeled for PI(4,5)P2 (yellow) and DAPI (cyan), with quantification of the number of PI(4,5)P2-positive puncta, showing increased PI(4,5)P2 puncta in KO cells, which is reduced by alpelisib treatment, specifically in KO cells. N=75, 65, 52, and 69 cells for WT DMSO, WT alpelisib, KO DMSO, and KO alpelisib, respectively. K-W test: overall ***P < 0.001, multiple comparisons; WT DMSO versus KO DMSO and KO DMSO versus KO alpelisib both ***P < 0.001; WT DMSO versus WT alpelisib P > 0.99 (ns). a.u., arbitrary units. To optimize viewing of this image, please see the online version of this article at www.kidney-international.org.

How is the phosphoinositide 3-kinase inhibitor alpelisib used for Lowe syndrome/Dent disease?

1. RESULTS

1.1 Class I PI3K inhibitors reduce actin aggregation in OCRL-KO HK2 cells

We used CRISPR-Cas9 gene editing to knockout (KO) OCRL in the HK2 cell line to allow testing of class I PI3K(phosphoinositide 3-kinase) inhibitors on the characteristic actin aggregation at endolysosomal compartments.^7,9,10,14 Western blotting verified a 98.0± 0.7% reduction in OCRL expression in lysates from the KO HK2 cells (Figure 1b). The OCRL KO recapitulated the actin basket phenotype in the HK2 cells, as indicated by an increased overlap between F-actin and early endosome antigen 1 (EEA1), quantified on Airyscan confocal microscopy z-stacks (Figure 1c–e). This increased overlap observed in OCRL KO cells was reversed by treatment with copanlisib (C), a broad-range PI3K(phosphoinositide 3-kinase) inhibitor that targets p110a and d and to a lesser extent the p110b and g isoforms (Figure 1c). By western blotting of HK2 whole-cell extracts, we found that the PI3K(phosphoinositide 3-kinase) p110 regulatory subunits a, b, and d were all well expressed in both wild-type (WT) and KO cells, with only trace levels of the p110g isoform present (Supplementary Figure S1A).

We distinguished the PI3K(phosphoinositide 3-kinase) specificity of the inhibition of F-actin using alpelisib (A), a selective inhibitor of p110a, and GSK2636771 (G) and idelalisib (I), selective inhibitors of p110b and p110d, respectively (Supplementary Figure S1A). Although alpelisib treatment gave a similar reduction in endosomal actin polymerization compared with copanlisib (Figure 1d), GSK2636771 and idelalisib had a little effect on actin accumulation (Figure 1e). The class I PI3K(phosphoinositide 3-kinase) inhibitors had no increased toxicity on OCRL KO relative to unmodified cells, based on the MTT assay (Supplementary Figure S1B).

1.2 Alpelisib and p110a knockdown rescue the actin phenotype in HK2 cells

For our ensuing studies, we focused on alpelisib as it is the most selective and least toxic PI3K(phosphoinositide 3-kinase) inhibitor developed so far, and is currently used to treat a mosaic overactivation of PI3K class Ia in children with PROS/CLOVES syndrome.²² Alpelisib reduced the actin baskets in OCRL KO HK2 cells in a dose-responsive fashion (Figure 2a). The effects were observed at 10 mM dosage as soon as 4 hours after treatment, without apparent toxicity (Supplementary Figure S2). To test whether PI3K(phosphoinositide 3-kinase) inhibition by alpelisib was the source of the decreased actin staining, we specifically reduced its target, the p110a subunit, using siRNA (Figure 2b). Compared with treatment with a control (sequence-scrambled) siRNA, siRNA against p110a yielded a 78.3±4.8% and 68.9±7.7% depletion of p110a protein in WT and OCRL KO HK2 cells, respectively, reflected by a significant reduction in actin baskets (Figure 2c).

1.3 Reduced levels of PI(3,4,5)P3, PI(4,5)P2, and PI(3)P in alpelisibtreated HK2 cells

To examine how phosphoinositide lipids are affected by OCRL KO and alpelisib treatment, we stained HK2 cells with antibodies or protein domains against PI(3,4,5)P3, PI(3)P, and PI(4,5)P2, using optimized fixation conditions for the plasma membrane or intracellular staining.^24,25 PI(3,4,5)P3 has a diffuse localization to the plasma membrane, and alpelisib treatment (10 mM) induced a robust decrease in staining for PI(3,4,5)P3 in both WT and OCRL KO cells, as expected from its mechanism of action and specificity for class IA PI3K(phosphoinositide 3-kinase) p110a (Figure 3a). PI(3,4,5)P3 is expected to be dephosphorylated progressively as membranes are endocytosed and trafficked into endosomes.^14,26,27 By fixing cells such that intracellular PI(3)P is preserved,²⁵ we found that PI(3)P punctae were also reduced by alpelisib treatment (in a dose-responsive fashion apparent from concentrations as low as 10 mm for the 16-hour treatment) in both WT and OCRL KO cells (Figure 3b and Supplementary Figure S2C). As expected, the KO of OCRL in HK2 cells induced a marked increase in the levels of PI(4,5)P2 both at the plasma membrane (Figure 3c) and intracellularly (Figure 3d), compared with WT cells.^10,28 Treatment with alpelisib markedly reduced the elevation of PI(4,5)P2 generated by OCRL KO in both compartments, whereas it had no effect in WT cells (Figure 3c and d). Alpelisib is reported to inhibit PI 4-kinase b with a 50% inhibitory concentration of 0.5 mM,¹⁹ which is a possible source of the reduction in PI(4,5)P2. Collectively, our data suggested that alpelisib inhibits actin assembly on OCRL KO endosomes via a bispecific effect on the PI(4,5)P2 and PI(3)P levels.

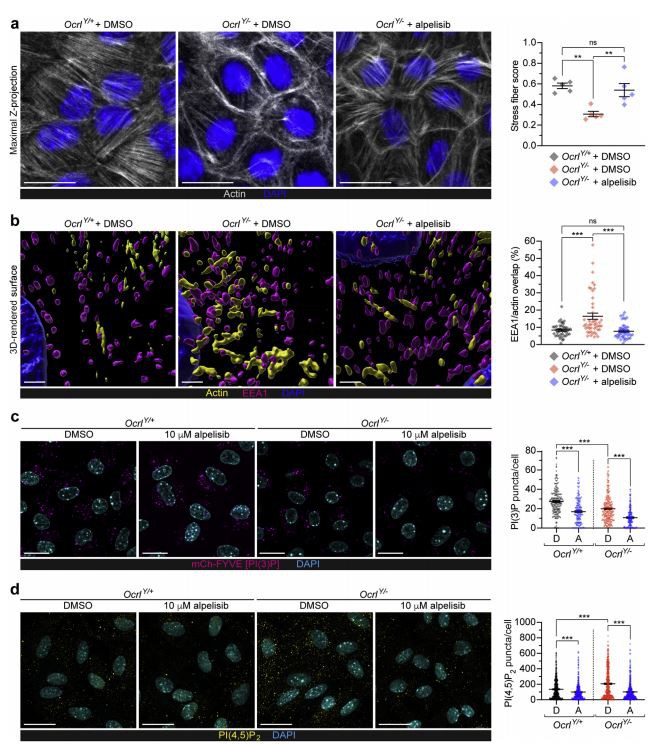

Figure 4 | Alpelisib alleviates actin defects of Oral in cultured humanized Ocrl^Y/-mouse PTCs (m PTCs). (a) Representative maximum intensity Z-projection confocal micrographs of OcrlY/þ or Ocrl^Y/-m PTCs treated with dimethylsulfoxide (DMSO) or 10 mM of alpelisib for 16 hours and then fixed with the 4% formaldehyde fifix and immunolabeled for actin (phalloidin) (white) and 40,6-diamidino-2-phenylindole (DAPI) (blue), with quantification of the degree to which stress fibers are present in each condition, showing that stress fibers lost in Ocrl^Y/-m PTCs are rescued by alpelisib treatment. The lines indicate means±SEM, and the data points indicate each imaging region: N=5 imaging regions per condition (each containing approximately 15–20 cells). Significance was assessed by ordinary 1-way analysis of variance (ANOVA) with Holm-Sidak’s multiple comparison test, **P=0.001, multiple comparisons; Ocrl Y/þ DMSO versus Ocrl^Y/-DMSO **

P=0.002, Ocrl^Y/- DMSO versus Ocrl^Y/-alpelisib **P=0.004, OcrlY/þ DMSO versus Ocrl^Y/- alpelisib P=0.50 (not significant [ns]). Bars=20mm. (b) High-magnification representative 3D surface renderings of Ocrl m PTCs treated with DMSO or 10 mM of alpelisib for 16 hours and then fixed with the 4% formaldehyde fifix and immunolabeled for early endosome antigen 1 (EEA1) (purple), actin (phalloidin, yellow), and DAPI (blue), and quantification illustrating rescue of the actin-endosomal overlap by alpelisib. Lower-magnification views indicating overviews of (continued)

Figure 4 | (continued) these regions are shown in Supplementary Figure S4B and Supplementary Movies S1–S3. Lines indicate mean±SEM. N=42, 47, and 45 randomly selected fields for OcrlY/þ þ DMSO, Ocrl^Y/- þ DMSO, and Ocrl^Y/- þ alpelisib conditions, respectively, in each case pooled from 4 mouse kidneys per condition. Significance was tested by Kruskal-Wallis (K-W) ANOVA with Dunn’s multiple comparisons test: overall ***P < 0.001, multiple comparisons; OcrlY/þ DMSO versus Ocrl^Y/- DMSO and Ocrl^Y/- DMSO versus Ocrl^Y/- alpelisib ***P < 0.001; OcrlY/þ DMSO versus Ocrl^Y/- alpelisib P > 0.99 (ns). Bars=1 mm. (c) Representative confocal micrographs of OcrlY/þ or Ocrl^Y/- m PTCs treated with DMSO or 10-mM alpelisib and then fixed with the Golgi fix and labeled using the m Ch-2xFYVE PI(3)P probe (magenta) and DAPI (cyan), with quantification of the number of PI(3)P-positive puncta detected in cells. N=188, 177, 246, and 206 cells from OcrlY/þ þ DMSO, OcrlY/þ þ alpelisib, Ocrl^Y/- þ DMSO, and Ocrl^Y/- þ alpelisib, respectively; cells were pooled from 3 Oral kidneys per group. K-W test: overall ***P < 0.001, multiple comparisons; OcrlY/þ DMSO versus Ocrl^Y/- DMSO, OcrlY/þ DMSO versus OcrlY/þ alpelisib, and Ocrl^Y/- DMSO versus Ocrl^Y/- alpelisib, all ***P < 0.001. Bars=20 mm. (d) Representative confocal micrographs of OcrlY/þ or Ocrl^Y/- m PTCs treated with DMSO or 10 mM of alpelisib for 16 hours then fixed with the 4% formaldehyde fifix and immunolabeled for phosphatidylinositol (PI) 4,5-bisphosphate [PI(4,5) P2] (yellow) and DAPI (cyan), with quantification of the number of PI(4,5)P2-positive puncta, showing increased PI(4,5)P2 puncta in Ocrl^Y/- cells, which is reduced by alpelisib treatment. N=477, 444, 423, and 494 from OcrlY/þ þ DMSO, OcrlY/þ þ alpelisib, Ocrl^Y/- þ DMSO, and Ocrl^Y/- þ alpelisib, respectively; cells were pooled from 3 Oral kidneys per group. K-W test: overall ***P < 0.001, multiple comparisons; OcrlY/þ DMSO versus Ocrl^Y/- DMSO, OcrlY/þ DMSO versus OcrlY/þ alpelisib, and Ocrl^Y/- DMSO versus Ocrl^Y/- alpelisib, all ***P < 0.001. Bars=20 mm. To optimize viewing of this image, please see the online version of this article at www.kidney-international.org.

1.4 Alpelisib reduces intracellular phosphoinositides and alleviates cytoskeletal defects in Ocrl^Y/- m PTCs

We next tested whether alpelisib had the same effects in primary cells of PT cells derived from the humanized Ocrldefificient mouse model (Ocrl^Y/- ), which recapitulates the abnormal actin polymerization and endocytic defect observed in patient-derived cells.^10,11 The mouse PTCs (m PTCs) expressed similar to class I PI3K(phosphoinositide 3-kinase) regulatory subunits to HK2 cells in both WT and Ocrl^Y/- mice and displayed a similar toxicity profile toward alpelisib when assessed by MTT assays (Supplementary Figure S3). Imaging by confocal microscopy revealed a striking disruption of the normal F-actin stress fiber architecture in m PTCs from Ocrl^Y/- compared with OcrlY/þ mice, likely due to the relocation of actin regulatory proteins from their normal cellular locations to endosomes, as large assemblies of actin surround these organelles and are thought to be the origin of the trafficking defect.^10,29 Treatment of Ocrl^Y/- m PTCs with alpelisib (10 mM) restored the stress fiber architecture (Figure 4a).

How is the phosphoinositide 3-kinase inhibitor alpelisib used for Lowe syndrome/Dent disease?

As the main problem in Lowe syndrome and Dent disease 2 is reduced endosomal trafficking and consequent megalin degradation, we sought to distinguish endosomal actin from the stress fibers. We collected laser-scanning confocal z-stacks throughout the cells, reconstructed the staining pattern in 3D surface renderings, and used size shape/parameters to identify punctate actin structures and the degree to which they overlapped with endosomal structures (Supplementary Figure S4 and Movies S1–S3). This analysis revealed that treatment with alpelisib decreased aberrant polymerization of F-actin at endosomes stained with EEA1, distinct from the stress fiber architecture (Figure 4b). The m PTCs derived from Ocrl^Y/- mice showed significant changes in intracellular staining for PI(3)P (decreased) and PI(4,5)P2 (increased), compared with m PTCs from WT OcrlY/þ mice (Figure 4c and d). Treatment of m PTCs from Ocrl^Y/- mice with alpelisib resulted in a significant reduction in intracellular PI(3)P and PI(4,5)P2 staining (Figure 4c and d).

1.5 Alpelisib improves endocytic uptake in Ocrl^Y/- m PTCs

We next assessed whether the effect of alpelisib on the cytoskeletal and vesicular defects observed in m PTCs resulted in changes in the endocytic uptake capacity. To differentiate the effect of alpelisib on binding and/or internalization of the ligand, m PTCs were first incubated with labeled bovine serum albumin (BSA), to induce binding of the probe with the endocytic receptors, and then incubated with a growth medium, to follow the internalization of albumin (Figure 5a). The Ocrl^Y/- cells showed a lower plasma membrane binding of Alexa 488-bovine serum albumin along with impaired internalization of albumin compared with OcrlY/þ cells. Treatment with alpelisib rescued both the binding and the uptake of albumin in the Ocrl^Y/- cells, with a 50% overall rescue of endocytic uptake (Figure 5b and c). These data were supported by the measurement of total albumin uptake (Supplementary Figures S5a and b). We noted that the internalized/bound Alexa 488-bovine serum albumin ratio remained similar between the different conditions (Figure 5d), implying that the reduced uptake of albumin is mainly due to impaired binding rather than a defective internalization process perse.

1.6 Alpelisib improves PT dysfunction and receptor-mediated endocytosis in Ocrl^Y/- mice

We tested the potential therapeutic effect of alpelisib on PT dysfunction in vivo. Oral mice were administered with either vehicle or alpelisib (50 mg/kg body weight per day) by oral gavage for 6 weeks (Figure 6a). This regimen was chosen according to previous in vivo studies demonstrating efficacy and safety.^22,30 In line with alpelisib administration being known to cause insulin resistance and hyperglycemia,²² alpelisib treatment led to a significant increase in glycosuria in both Ocrl Y/þ and Oral ^Y/- mice, which could be considered as a biomarker for drug dosing (Supplementary Table S1). After 6 weeks of alpelisib treatment, the Ocrl^Y/- mice displayed a significant reduction in the urinary excretion of the LMW proteins CC16 (-34%) and albumin (-38%), compared with vehicle-treated controls (Figure 6b and c), whereas the volume of urine and other parameters were unaffected (Supplementary Table S1). Alpelisib-treated mice of both genotypes showed a similar reduction in growth rate relative to control mice, as previously described.²² Nevertheless, both vehicle and treated mice gained body weight, indicating that the drug does not severely affect postnatal development (Figure 6d and Supplementary Table S1).

To test whether the effect of alpelisib on LMW proteinuria reflected the recovery of receptor-mediated endocytosis in PT cells, we followed the in vivo uptake of Cy5-labeled b-lactoglobulin in a mouse kidney. Alpelisib-treated Ocrl^Y/- mice displayed a significant rescue of Cy5-labeled b-lactoglobulin uptake, close to the extent of internalization observed in vehicle-treated OcrlY/þ mice (Figure 6e). This was mirrored by a significant rescue in the expression of the endocytic receptor megalin in PT cells, as observed by immunolabeling and western blotting of the kidney lysates of alpelisib-treated Ocrl^Y/- mice; note that there was no change in expression of the PT marker AQP1 (Figure 6f and g and Supplementary Figure S5C and D). These data show that the PI3K(phosphoinositide 3-kinase) inhibitor alpelisib induces a substantial improvement of the PT endocytic machinery and reduces LMW proteinuria in a humanized mouse model for Lowe syndrome.

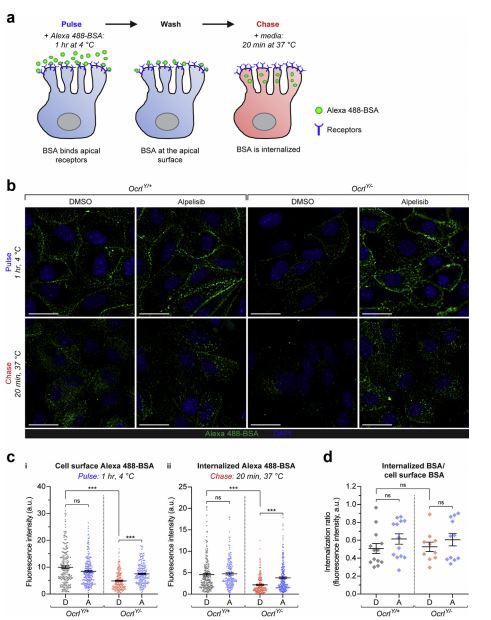

Figure 5 | Alpelisib improves endocytic uptake of humanized Ocrl^Y/- mouse PTCs (m PTCs). (a) Schematic illustrating the pulse-chase experiment used to examine the binding and internalization of Alexa 488-bovine serum albumin (BSA) into m PTCs. Cells were exposed to Alexa 488-BSA (0.2 mg/ml) for 1 hour at 4℃ to allow BSA to bind to cell surface receptors (pulse) and then warmed to 37℃ in cell medium for 20 minutes before fixation to allow ligand internalization (chase). (b) Representative confocal micrographs of OcrlY/þ or Ocrl^Y/- m PTCs treated with dimethylsulfoxide (DMSO) or 10 mM of alpelisib for 16 hours and subjected to the Alexa 488-BSA (green) pulse-chase experiment, before being fixed and labeled for 40,6-diamidino-2-phenylindole (DAPI) (blue). The pulse phase of the experiment is shown in the top panel for each condition, with the chase below. Bars=20 mm. (c) Quantification of cell surface Alexa 488-BSA (i) and internalized Alexa 488-BSA (ii), evaluated as mean FL fluorescence intensities per cell. Alpelisib rescues the rescued BSA binding and internalization observed in Ocrl^Y/- cells. N=209, 228, 186, and 196 cells for OcrlY/þ DMSO, OcrlY/þ alpelisib, OcrlY/ DMSO, and Ocrl^Y/- alpelisib conditions, respectively in (i) and N=203, 183, 199, and 233 cells for OcrlY/þ DMSO, OcrlY/þ alpelisib, Ocrl^Y/- DMSO, and Ocrl^Y/- alpelisib conditions, respectively in (ii), in each case pooled from 2 mouse kidneys per condition; each data point represents the mean FL fluorescence intensity in an individual cell. Significance was tested by Kruskal-Wallis (K-W) analysis of variance (ANOVA) with Dunn’s multiple comparisons test: for (i) cell surface BSA, overall ***P < 0.001, multiple comparisons: OcrlY/þ DMSO versus Ocrl^Y/- DMSO and Ocrl^Y/- DMSO versus Ocrl^Y/- alpelisib ***P < 0.001; OcrlY/þ DMSO versus OcrlY/þ alpelisib P=0.60 (not significant [ns]); for (ii) internalized BSA, overall ***P < 0.001, multiple comparisons: OcrlY/þ DMSO versus Ocrl^Y/- DMSO and Ocrl^Y/- DMSO versus Ocrl^Y/- alpelisib ***P < 0.001; OcrlY/þ DMSO versus OcrlY/þ alpelisib P=0.66 (ns). (d) Quantification of the ratio between the cell surface Alexa 488- BSA and the internalized Alexa 488–BSA FL fluorescence intensities, showing no significant differences in ratios between each condition. Each point represents the average of the ratio in a field containing approximately 15–20 cells (N=13, 13, 10, and 11 randomly selected fields for OcrlY/þ DMSO, OcrlY/þ alpelisib, Ocrl^Y/- DMSO, and Ocrl^Y/- alpelisib conditions, respectively, in each case pooled from 2 mouse kidneys per condition). Significance was tested by K-W ANOVA with Dunn’s multiple comparisons tests: overall P=0.46 (ns), multiple comparisons: OcrlY/þ DMSO versus Ocrl^Y/- DMSO and Ocrl^Y/- DMSO versus Ocrl^Y/- alpelisib P > 0.99 (ns); OcrlY/þ DMSO versus OcrlY/þ alpelisib P=0.84 (ns). To optimize viewing of this image, please see the online version of this article at www.kidney-international.org.

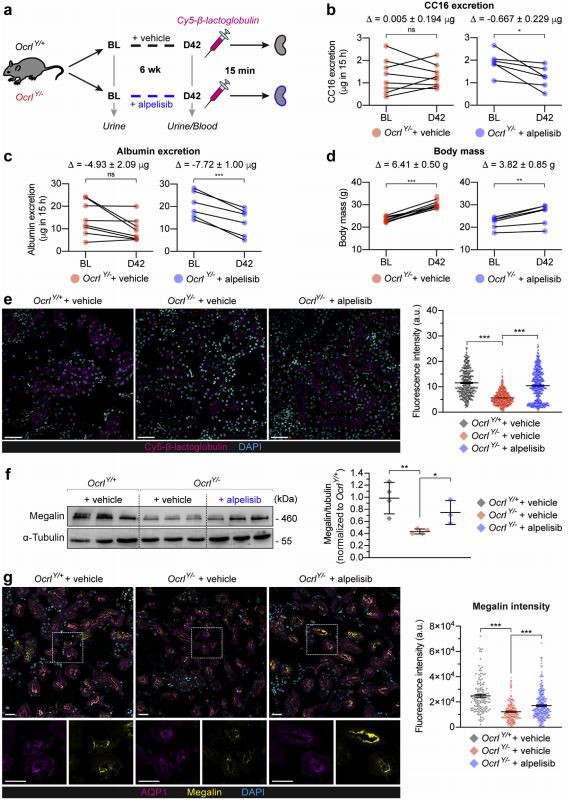

Figure 6 | Alpelisib improves the proximal tubule (PT) function of OcrlY/L mice, restoring ligand uptake and megalin expression. (a) Experimental setup. Oral mice were treated for 6 weeks with a daily oral dose of either carboxymethylcellulose 1% (vehicle) or alpelisib (50 mg/kg body weight). On the last day of the treatment, mice were injected with Cy5-labeled b-lactoglobulin (N=6 Ocrl^Y/-, or 8 Ocrl^Y/- mice per group). (b–d) The D values shown indicate the mean change from BL to D42 for the condition±SEM. (b) Clara cell protein 16 (CC16), (c) albumin urinary output (both within 15 hours), and (d) body mass was measured in OcrlY/- mice treated with either vehicle or alpelisib at the indicated time point. Each dot represents 1 mouse. Significance was assessed by 2-tailed paired Student’s t-test; in (b) CC16 (continued)

Figure 6 | (continued) output change relative to baseline; þ vehicle, P=0.9802 (not significant [ns]), þ alpelisib, *P=0.0334; in (c) albumin output change relative to baseline; þ vehicle, P=0.0502 (ns), þ alpelisib, ***P ¼ 0.0006; in (d) body mass change relative to baseline; þ vehicle, ***P < 0.0001, þ alpelisib, **P=0.0083. (e) Representative confocal micrographs showing Cy5-labeled b-lactoglobulin (magenta) 15 minutes after tail vein injection and labeled for 40,6-diamidino-2-phenylindole (DAPI) (cyan), plus quantification of the corresponding FL fluorescent signals from Ocrl mouse kidneys (N=412, 500, and 588 tubules, respectively, for OcrlY/þþ vehicle, Ocrl^Y/- þ vehicle, and Ocrl^Y/- þ alpelisib) for 3 mice per treatment group. b-Lactoglobulin uptake is rescued by alpelisib treatment. Bars ¼ 20 mm. In the quantifications, each dot represents FL fluorescence intensity normalized by tubule area; plotted data indicate the mean±SEM. Significance was assessed by the Kruskal-Wallis (K-W) test followed by Dunn’s multiple comparison test; ***P < 0.001, multiple comparisons; OcrlY/þþ vehicle versus Ocrl^Y/- þ vehicle and Ocrl^Y/- þ vehicle versus Ocrl^Y/- þ alpelisib, both ***P < 0.001. (f) Western blotting and densitometry analysis of megalin levels in whole kidney lysates from Oral mice. a-Tubulin was used as a loading control. The reduced megalin expression in Ocrl^Y/- is rescued by alpelisib. In the quantification of the densitometry analysis, each dot represents 1 mouse (N=4 OcrlY/þþ vehicle and Ocrl^Y/- þ vehicle and N=3 Ocrl^Y/- þ alpelisib mice); lines indicate mean±SEM. Significance was assessed by 2-tailed unpaired Student’s t-tests: OcrlY/þþ vehicle versus Ocrl^Y/- þ vehicle; **P ¼ 0.0057, Ocrl^Y/- þ vehicle versus Ocrl^Y/- þ alpelisib, *P=0.0246. (g) Representative confocal micrographs with high-magnification insets and quantification of megalin (yellow) intensity in AQP1þ PTs (magenta) from Oral kidneys were also labeled for DAPI (cyan) illustrating rescue of megalin levels after alpelisib treatment. Bars=20 mm. In the quantifications, each dot represents FL fluorescence intensity normalized by tubule area; plotted data indicate the mean±SEM; N=142, 191, and 266 tubules, respectively, for OcrlY/þþ vehicle, Ocrl^Y/- þ vehicle, and Ocrl^Y/- þ alpelisib for 3 mice per treatment group. Significance was assessed by K-W analysis of variance followed by Dunn’s multiple comparison test; overall ***P < 0.001, multiple comparisons; OcrlY/þþ vehicle versus Ocrl^Y/- þ vehicle and Ocrl^Y/- þ vehicle versus Ocrl^Y/- þ alpelisib, both ***P < 0.001. To optimize viewing of this image, please see the online version of this article at www.kidney-international.org.

How is the phosphoinositide 3-kinase inhibitor alpelisib used for Lowe syndrome/Dent disease?

2. DISCUSSION

There is currently no treatment to alleviate the defective endocytosis causing PT dysfunction in Lowe syndrome and Dent disease 2. Our findings reveal that alpelisib alleviates the aberrant actin phenotype by reducing levels of PI(4,5)P2 and PI(3)P, causing a substantial improvement of the endocytic machinery and absorptive capacity in cellular systems and a humanized mouse model for Lowe syndrome/Dent disease 2. These results support the link between phosphoinositide lipids, actin polymerization, and endocytic trafficking, with immediate relevance for highly active epithelial cells involved in crucial homeostatic processes (Figure 7). Given the lack of effective therapies and the apparent safety of this class of PI3K(phosphoinositide 3-kinase) inhibitors, alpelisib is a promising candidate for drug repurposing in Lowe syndrome and Dent disease.

LMW proteinuria is the most consistent feature encountered in patients with Lowe syndrome and Dent disease 2 due to inactivating mutations in OCRL.⁴ These LMW proteins can readily be detected and quantified, offering a faithful biomarker of defective receptor-mediated endocytosis in PT cells.1 LMW proteinuria is particularly relevant, as it is detected more consistently and often earlier than other solutes (e.g., glucose, phosphate, amino acids) being part of the classical “renal Fanconi syndrome”—at least in congenital disorders of the endolysosomal pathway.¹ Here, we show that alpelisib rescues the apical endocytic uptake capacity of PT cells in vitro and in vivo, due to restored levels of the megalin receptor at the plasma membrane. This effect is reflected by significant reductions in the urinary loss of LMW proteins (CC16 and albumin) in Ocrl^Y/- mice treated with alpelisib for 6 weeks. These effects of alpelisib have been observed in m PTCs, which keep their apical differentiation and are particularly well suited to investigate receptor-mediated endocytosis in physiology and disease.⁹ In particular, we obtained m PTCs from a humanized mouse model expressing human INPP5B in Ocrl^Y/-; Inpp5b^-/- background, which allows us to investigate the specific consequences of the loss of OCRL activity.^11,23

The rescue of endocytosis by alpelisib is explained by its effect on actin machinery, clearly evidenced in OCRL KO HK2 cells and m PTCs. Our observations thus confirm and extend previous studies showing the link between control of the phosphoinositide balance and F-actin in the early endosomal pathway in OCRL patients and KO cells.^7,10 The functional loss of OCRL activity impairs the degradation of PI(4,5)P2, which, in turn, leads to a failure to uncoat clathrin-coated vesicles resulting in aberrant endosomal organelles in various cell types including the PT cells.^7-10 We recently showed that the excess F-actin decreases the recycling of the multiligand receptor megalin to the apical membrane of PT cells, causing defective endocytosis and LMW proteinuria.¹¹

Our data indicate that the mechanism of action of alpelisib on endosomal actin arises from a bispecific effect of alpelisib inhibition: first on the production of PI(3,4,5)P3 and its conversion to PI(3)P, and second on the production of PI(4,5)P2. The decrease in PI(4,5)P2 levels directly counteracts the OCRL deficiency and is in agreement with previous work alleviating excess actin and increasing endocytic efflux by a reduction in the levels of phosphatidylinositol 4-phosphate 5-kinase, an enzyme that generates PI(4,5)P2. ¹⁰ Alpelisib has a 0.5 mM 50% inhibitory concentration on the PI(4,5)P2 generating kinase PI4Kb, which may be responsible, or it could result from more general effects on phosphoinositide balance resulting from the combination of OCRL KO and alpelisib treatment. We have identified that class IA PI3K(phosphoinositide 3-kinase) inhibition by alpelisib is relevant to actin inhibition as siRNA-mediated depletion of p110a inhibits actin accumulation similarly to alpelisib treatment and copanlisib (which is not reported to inhibit PI4Ks). In RPE cells we have previously observed that siRNA of INPP4A, which converts PI(3,4)P2 to PI(3)P, inhibits actin assembly in OCRL KO cells, providing a pathway from inhibition of PI(3,4,5)P3 production to a decrease in endosomal PI(3)P. We showed that some PI(3)P remains, presumably the pool produced at the early endosome by class III PI3K, Vps34 because we found that endosomal trafficking is enhanced rather than suppressed by alpelisib treatment. The complex coregulation of PI metabolism and its relevance for OCRL inactivation has also been highlighted in a recent study where noncatalytic functions of phosphoinositide 3- phosphatase PTEN activate PI(4,5)P2 degradation via PLCXD, alleviating cellular phenotypes and absorption of ligands in a zebrafish model.³¹

The alleviation of the actin phenotype by reduced levels of PI(4,5)P2 and PI(3)P by alpelisib treatment agrees with the synergistic action of PI(4,5)P2 and PI(3)P in recruiting SNX9 to activate the actin machinery at Ocrl endosomes,¹⁴ suggesting a very effective match of alpelisib specificity to manipulate the molecular regulation of actin activation at endosomes. In turn, as previously demonstrated, reduced endosomal actin assembly, in turn, leads to an improvement in PT endocytosis in OCRL-deficient cells.¹⁰ Further characterization will be needed to better understand whether regulation of actin through phosphoinositide metabolism is the true source of the therapeutic effect that we observe with alpelisib in the Ocrl^Y/- mouse model. Because class I PI3K(phosphoinositide 3-kinase) regulate pathways that control cell growth, proliferation, survival, metabolism, and autophagy,³² we cannot exclude that the endocytic rescue is due to effects on PI(3,4,5)P3 directly and the combined effect on other pathways modulated by class I PI3K. More work is also needed to test whether PI3K(phosphoinositide 3-kinase) inhibitors might also alleviate the neurologic and other clinical manifestations of patients harboring OCRL mutations.⁴

The recent experience of alpelisib in pediatric patients with PROS/CLOVES syndrome suggests that the drug has the potential to be well tolerated. Alpelisib is taken orally, selectively targets the isoform of PI3K(phosphoinositide 3-kinase) class I, and shows a minor toxicity profile compared with pan-PI3K inhibitors. As alpelisib does not completely block PI3K(phosphoinositide 3-kinase) activity, thus maintaining functions of the signaling pathway, it may be particularly suitable for long-term use. Of interest, the hyperglycemia arising from alpelisib use may be manageable by dietary changes.²² Because PT dysfunction is the first manifestation of kidney disease observed in young infants with Dent disease 2 and Lowe syndrome, early treatment of such PT dysfunction, leading to improvements in the metabolic profile and growth, might therefore slow progression to chronic kidney disease and therefore have a significant impact on lifespan and quality of life.³³ Although the disease manifestations of OCRL mutation are particularly wide, recent studies based on large cohorts of genotyped patients with Lowe syndrome of Dent disease 2 did not evidence significant effects of the type of mutation or the location of the mutation on renal survival.³⁴ Collectively, our data highlight the potential for repurposing alpelisib for treating PT dysfunction in Lowe syndrome/Dent disease 2, thus providing a basis for rapid and cost-effective deployment in human clinical trials.

3. METHODS

3.1 Full details can be found in the Supplementary Methods.

HK2 cells were treated with copanlisib, alpelisib, GSK2636771, or idelalisib at indicated concentrations for 16 hours unless otherwise stated. Proteins were extracted using standard methods from cells or kidney tissues and western blotting was performed using published or commercially available antibodies. siRNA knockdown was performed using 2 transfections 72 and 24 hours before analysis. We used age- and gender-matched OcrlY/þ; Inpp5b^{- /-}; and Ocrl^Y/-; Inpp5b^-/- mouse littermates harboring BAC-INPP5B expression. Primary cultures of m PTCs were generated from the kidneys harvested from 8 week-old Ocrl mice and the endocytic capacity of Oral m PTCs was assessed by measuring albumin uptake. Alpelisib treatments were 10 mM for 16 hours unless otherwise stated. Albumin uptake in m PTCs was assessed using a “pulse-chase” protocol to assess apical binding and resultant uptake. m PTCs were stained overnight with the appropriate primary antibody and for 45 minutes with suitable FL fluorophore-conjugated secondary antibodies and/or Alexa-488 Phalloidin. PI(3)P staining on m PTCs was performed using the FYVE domain probe. Image analysis was performed with CellProfifiler, using custom pipelines to measure actin/ EEA1 overlap and number of puncta, and with ImageJ to measure immunofluorescence intensity and detected edges to calculate stress fiber score. Quantitative data were expressed as means±standard error of the mean. For the in vivo experiments, mice aged 6 weeks were treated with vehicle or alpelisib 50 mg/kg body weight. Urine was collected every 14 days and animals were sacrificed after 42 days of treatment, with blood and kidneys harvested. The PT endocytic capacity of Oral mice was examined by measuring b-lactoglobulin uptake.

4. DISCLOSURE

JLG has funding from AstraZeneca for a studentship in her lab. SPJ is on the advisory boards and has equity ownership of Mission Therapeutics, Carrick Therapeutics, and Adrestia Therapeutics, and is a Science Partner for Ahren Innovation Capital. All the other authors declared no competing interests.

5. ACKNOWLEDGMENTS

This work was supported by European Research Council Grant 281971, Wellcome Trust Research Career Development Fellowship WT095829AIA, Wellcome Senior Research Fellowship 219482/Z/19/Z, Wellcome Trust Developing Concept Fund 209749/Z/17/Z, Isaac Newton Trust Research Grant 18.23(j) to JLG, and Wellcome Investigator Award 206388/Z/17/Z to SPJ, and we acknowledge the Gurdon Institute funding from the Wellcome Trust (092096) and CRUK (C6946/A14492). We are grateful to the Cystinosis Research Foundation (Irvine, CA), the Swiss National Science Foundation (project grant 310030_189044), the clinical research priority program (KFSP) RADIZ (Rare Disease Initiative Zurich) of the UZH, the Swiss

National Centre of Competence in Research (NCCR) Kidney Control of Homeostasis (Kidney.CH) for support, and the NIDDK/NIH and the Lowe Syndrome Trust/UK for supporting the development of the Oral mice. We acknowledge Robert L. Nussbaum (Invitae Corporation and UCSF, San Francisco, CA) and Maria Antonietta De Matteis (Telethon Institute of Genetics and Medicine, University Federico II Naples, Naples, Italy) for providing the founders for the Oral mouse colony;

and Eric Olinger (UZH, Zurich) for fruitful discussions. We thank Nadine Näegele and Daniela Nieri for providing technical assistance during the urine collection and analysis; Guillaume Canaud (Hôpital Necker-Enfants Malades, Paris) for sharing with us the detailed protocol for the preparation of Alpelisib for the in vivo treatment; and Renata Kozyraki and Pierre Verroust for providing reagents. We also thank the Center for Microscopy and Image Analysis of the University of Zurich (Zurich, Switzerland) and Zurich integrative rodent physiology (ZIRP) facility for providing the equipment for imaging acquisition and technical support during the in vivo experiments.

How is the phosphoinositide 3-kinase inhibitor alpelisib used for Lowe syndrome/Dent disease?

6. SUPPLEMENTARY MATERIAL

Supplementary File (PDF)

Supplementary Methods and References.

Table S1. Bodyweight, urine, and blood parameters over time in Oral mice treated with alpelisib or vehicle.

Figure S1. p110 isoform expression and drug dose-response cytotoxicity assays in HK2 cells.

Figure 2. PI3K inhibitor alpelisib restores actin-endosomal overlap and reduces PI(3)P levels in a dose-responsive manner 4 hours after drug treatment in HK2 cells.

Figure S3. p110 isoform expression and alpelisib toxicity in Ocrl mPTCs.

Figure S4. Workflow of EEA1/actin overlap analysis in Ocrl mPTCs.

Figure S5. Alpelisib restores albumin uptake in Ocrl^Y/- mPTCs. Aqp1 expression is unaffected. Supplementary File (Movies)

Movie S1. Imaris 3D rendering of EEA1/actin overlap in OcrlY/þ mPTCs treated with DMSO. Representative 3D surface rendering of a confocal stack of OcrlY/þ mPTCs treated with DMSO for 16 hours then fixed with the 4% formaldehyde fifix and immunolabelled for EEA1 (purple), actin (phalloidin; yellow), and DAPI (blue), illustrating little actin/endosomal association. Bar=5 mm.

Movie S2. Imaris 3D rendering of EEA1/actin overlap in Ocrl^Y/- mPTCs treated with DMSO. Representative 3D surface rendering of a confocal stack of OcrlY/– mPTCs treated with DMSO for 16 hours then fixed with the 4% formaldehyde fifix and immunolabelled for EEA1 (purple), actin (phalloidin; yellow), and DAPI (blue), illustrating punctate actin associating near endosomal structures. Bar=5mm.

Movie S3. Imaris 3D rendering of EEA1/actin overlap in Ocrl^Y/- mPTCs treated with alpelisib. Representative 3D surface rendering of a confocal stack of OcrlY/– mPTCs treated with 10 mM of alpelisib for 16 hours then fixed with the 4% formaldehyde fifix and immunolabelled for EEA1 (purple), actin (phalloidin; yellow), and DAPI (blue), illustrating rescue of actin punctate structures around endosomes. Bar=5 mm.

REFERENCES

1. van der Wijst J, Belge H, Bindels RJM, Devuyst O. Learning physiology from inherited kidney disorders. Physiol Rev. 2019;99:1575–1653.

2. Loi M. Lowe syndrome. Orphanet J Rare Dis. 2006;1:16.

3. Lewis RA, Nussbaum RL, Brewer ED. Lowe syndrome. In: Adam MP, Ardinger HH, Pagon RA, et al., eds. GeneReviews® [internet]. Seattle (WA): University of Washington, Seattle; 1993-2020. Available at: HTTPS:// www.ncbi.nlm.nih.gov/books/NBK1480/. Published July 24, 2001; Updated April 18, 2019. Accessed August 8, 2019.

4. De Matteis MA, Staiano L, Emma F, Devuyst O. The 5-phosphatase OCRL in Lowe syndrome and Dent disease 2. Nat Rev Nephrol. 2017;13: 455–470.

5. Devuyst O, Luciani A. Chloride transporters and receptor-mediated endocytosis in the renal proximal tubule. J Physiol. 2015;593:4151–4164.

6. Zhang X, Jefferson AB, Auethavekiat V, Majerus PW. The protein deficient in Lowe syndrome is a phosphatidylinositol-4,5-bisphosphate 5- phosphatase. Proc Natl Acad Sci U S A. 1995;92:4853–4856.

7. Nández R, Balkin DM, Messa M, et al. A role of OCRL in clathrin-coated pit dynamics and uncoating revealed by studies of Lowe syndrome cells. eLife. 2014;3:e02975.

8. Mehta ZB, Pietka G, Lowe M. The cellular and physiological functions of the Lowe syndrome protein OCRL1. Traffic. 2014;15:471–487.

9. De Leo MG, Staiano L, Vicinanza M, et al. Autophagosome-lysosome fusion triggers a lysosomal response mediated by TLR9 and controlled by OCRL. Nat Cell Biol. 2016;18:839–850.

10. Vicinanza M, Di Campli A, Polishchuk E, et al. OCRL controls trafficking through early endosomes via PtdIns4,5P(2)-dependent regulation of endosomal actin. EMBO J. 2011;30:4970–4985.

11. Festa BP, Borquez M, Gassama A, et al. OCRL deficiency impairs endolysosomal function in a humanized mouse model for Lowe syndrome and Dent disease. Hum Mol Genet. 2019;28:1931–1946.

12. Welch HC, Coldwell WJ, Ellson CD, et al. P-Rex1, a PtdIns(3,4,5)P3- and Gbetagamma-regulated guanine-nucleotide exchange factor for Rac. Cell. 2002;108:809–821.

13. Gallop JL, Walrant A, Cantley LC, Kirschner MW. Phosphoinositides and membrane curvature switch the mode of actin polymerization via selective recruitment of Toca-1 and Snx9. Proc Natl Acad Sci U S A. 2013;110:7193–7198.

14. Daste F, Warrant A, Holst MR, et al. Control of actin polymerization via the coincidence of phosphoinositides and high membrane curvature. J Cell Biol. 2017;216:3745–3765.

15. Malek M, Kielkowska A, Chessa T, et al. PTEN regulates PI(3,4)P2 signaling downstream of class I PI3K(phosphoinositide 3-kinase). Mol Cell. 2017;68:566–580.e510.

16. Gillooly DJ, Morrow IC, Lindsay M, et al. Localization of phosphatidylinositol 3-phosphate in yeast and mammalian cells. EMBO J. 2000;19:4577–4588.

17. Fruman DA, Chiu H, Hopkins BD, et al. The PI3K(phosphoinositide 3-kinase) pathway in human disease. Cell. 2017;170:605–635.

18. Liu N, Rowley BR, Bull CO, et al. BAY 80-6946 is a highly selective intravenous PI3K(phosphoinositide 3-kinase) inhibitor with potent p110alpha and p110delta activities in tumor cell lines and xenograft models. Mol Cancer Ther. 2013;12:2319–2330.

19. Fritsch C, Huang A, Chatenay-Rivauday C, et al. Characterization of the novel and specific PI3K(phosphoinositide 3-kinase)alpha inhibitor NVP-BYL719 and development of the patient stratification strategy for clinical trials. Mol Cancer Ther. 2014;13:1117–1129.

20. Furet P, Guagnano V, Fairhurst RA, et al. Discovery of NVP-BYL719 a potent and selective phosphatidylinositol-3 kinase alpha inhibitor selected for clinical evaluation. Bioorg Med Chem Lett. 2013;23:3741–3748.

21. Andre F, Ciruelos E, Rubovszky G, et al. Alpelisib for PIK3CA-mutated, hormone receptor-positive advanced breast cancer. N Engl J Med. 2019;380:1929–1940.

22. Venot Q, Blanc T, Rabia SH, et al. Targeted therapy in patients with PIK3CA-related overgrowth syndrome. Nature. 2018;558:540–546.

23. Bothwell SP, Chan E, Bernardini IM, et al. Mouse model for Lowe syndrome/Dent Disease 2 renal tubulopathy. J Am Soc Nephrol. 2011;22: 443–448.

24. Chen R, Kang VH, Chen J, et al. A monoclonal antibody to visualize PtdIns(3,4,5)P(3) in cells. J Histochem Cytochem. 2002;50:697–708.

25. Hammond GR, Schiavo G, Irvine RF. Immunocytochemical techniques reveal multiple, distinct cellular pools of PtdIns4P and PtdIns(4,5)P(2). Biochem J. 2009;422:23–35.

26. He K, Marsland R III, Upadhyayula S, et al. Dynamics of phosphoinositide conversion in clathrin-mediated endocytic traffic. Nature. 2017;552:410–414.

27. Bilanges B, Poor Y, Vanhaesebroeck B. PI3K(phosphoinositide 3-kinase) isoforms in cell signaling and vesicle trafficking. Nat Rev Mol Cell Biol. 2019;20:515–534.

28. Montjean R, Aoidi R, Desbois P, et al. OCRL-mutated fibroblasts from patients with Dent-2 disease exhibit INPP5B-independent phenotypic variability relatively to Lowe syndrome cells. Hum Mol Genet. 2015;24: 994–1006.

29. Suchy SF, Nussbaum RL. The deficiency of PIP2 5-phosphatase in Lowe syndrome affects actin polymerization. Am J Hum Genet. 2002;71:1420– 1427.

30. Mizrachi A, Shamay Y, Shah J, et al. Tumour-specific PI3K(phosphoinositide 3-kinase) inhibition via nanoparticle-targeted delivery in head and neck squamous cell carcinoma. Nat Commun. 2017;8:14292.

31. Mondin VE, Ben El Kadhi K, Cauvin C, et al. PTEN reduces endosomal PtdIns(4,5)P2 in a phosphatase-independent manner via a PLC pathway. J Cell Biol. 2019;218:2198–2214.

32. Jean S, Kiger AA. Coordination between RAB GTPase and phosphoinositide regulation and functions. Nat Rev Mol Cell Biol. 2012;13: 463–470. 33. Devuyst O, Knoers NV, Remuzzi G, et al. Rare inherited kidney diseases: challenges, opportunities, and perspectives. Lancet. 2014;383: 1844–1859. 34. Zanies M, Bokenkamp A, Kolb M, et al. Long-term renal outcome in children with OCRL mutations: retrospective analysis of a large international cohort. Nephrol Dial Transplant. 2018;33:85–94.
