Whole Genome Sequencing For The Diagnosis Of Neurological Repeat Expansion Disorders in The UK: A Retrospective Diagnostic Accuracy And Prospective Clinical Validation Study

For more information:ali.ma@wecistanche.com

Summary

Background

Repeat expansion disorders affect about 1 in 3000 individuals and are clinically heterogeneous diseases caused by expansions of short tandem DNA repeats. Genetic testing is often locus-specific, resulting in the underdiagnosis of people who have atypical clinical presentations, especially in pediatric patients without a previous positive family history. Whole-genome sequencing is increasingly used as a first-line test for other rare genetic disorders, and we aimed to assess its performance in the diagnosis of patients with neurological repeat expansion disorders.

Methods

We retrospectively assessed the diagnostic accuracy of whole-genome sequencing to detect the most common repeat expansion loci associated with neurological outcomes (AR, ATN1, ATXN1, ATXN2, ATXN3, ATXN7, C9orf72, CACNA1A, DMPK, FMR1, FXN, HTT, and TBP) using samples obtained within the National Health Service in England from patients who were suspected of having neurological disorders; previous PCR test results were used as the reference standard. The clinical accuracy of whole-genome sequencing to detect repeat expansions was prospectively examined in previously genetically tested and undiagnosed patients recruited in 2013–17 to the 100 000 Genomes Project in the UK, who were suspected of having a genetic neurological disorder (familial or early-onset forms of ataxia, neuropathy, spastic paraplegia, dementia, motor neuron disease, parkinsonian movement disorders, intellectual disability, or neuromuscular disorders). If a repeat expansion call was made using whole-genome sequencing, PCR was used to confirm the result.

Findings

The diagnostic accuracy of whole-genome sequencing to detect repeat expansions was evaluated against 793 PCR tests previously performed within the NHS from 404 patients. Whole-genome sequencing correctly classified 215 of 221 expanded alleles and 1316 of 1321 non-expanded alleles, showing 97·3% sensitivity (95% CI 94·2–99·0) and 99·6% specificity (99·1–99·9) across the 13 disease-associated loci when compared with PCR test results. In samples from 11 631 patients in the 100 000 Genomes Project, whole-genome sequencing identified 81 repeat expansions, which were also tested by PCR: 68 were confirmed as repeat expansions in the full pathogenic range, 11 were non-pathogenic intermediate expansions or permutations, and two were non-expanded repeats (16% false discovery rate).

Interpretation

In our study, whole-genome sequencing for the detection of repeat expansions showed high sensitivity and specificity, and it led to the identification of neurological repeat expansion disorders in previously undiagnosed patients. These findings support the implementation of whole-genome sequencing in clinical laboratories for the diagnosis of patients who have a neurological presentation consistent with a repeat expansion disorder.

Funding

Medical Research Council, Department of Health and Social Care, National Health Service England, National Institute for Health Research, and Illumina.

Introduction

Despite recent advances in our understanding of the genetic basis of rare neurological disorders, up to 70% of patients with such disorders remain genetically undiagnosed.1–3 In part, this is due to the technical challenges of testing for complex and repetitive genetic variants, including repeat expansions; such expansions are estimated to affect about 1 in 3000 people (appendix p 1) and are the leading cause of more than 40 neurogenetic disorders,4 including Huntington’s disease and fragile X syndrome. Repeat expansion disorders are clinically and genetically heterogeneous, and repeat expansion can be associated with various diseases. For example, expansions in C9orf72 can present as either amyotrophic lateral sclerosis or frontotemporal dementia.5 Repeat expansions in different loci can also yield similar phenotypic features, making them difficult to distinguish clinically: repeat expansions in at least ten spinocerebellar ataxia genes frequently present as adult-onset ataxia,6 and those in C9orf72 and AR can both cause motor neuron disease.7,8

Repeat expansion disorders are caused by an increase in the number of repetitive short tandem DNA sequences, and the pathogenicity thresholds for each disorder are locus-specific. The size of expansion varies from fewer than 30 repeats (eg, in CACNA1A) to several thousand repeat units (eg, in FMR1, DMPK, C9orf72, and FXN, which can extend up to 5 kb in size). Repeat expansions exhibit molecular instability, which can lead to changes in the repeat size (generally increasing in length) across generations and tissues.4 In these conditions, an increase in the number of repeats often leads to an earlier onset and more severe disease in successive generations.4 Paediatric onset of repeat expansion disorders can present as multisystem syndromes without specific phenotypic signatures,9 and children with these disorders are therefore more likely to be underdiagnosed when a family history of repeat expansion disorder is absent than when it is present.10–12

Laboratory assessment of repeat expansions is typically restricted to the targeted molecular assessment of an individual locus guided by the suspected clinical diagnosis using PCR-based or Southern blot methods,13 which can be costly and time-consuming. Additionally, due to the varied and overlapping phenotypic features of these disorders, disease-associated repeat expansion loci can remain untested.14

Whole-genome sequencing is emerging as a first-line diagnostic tool in patients with rare disease15 but, until recently, was thought to have limited capability to assess loci containing repeat expansions.16 Advances in bioinformatics, however, have made feasible the detection of disease-causing repeat expansions from next-generation sequencing data.17–22 Here, we report on the diagnostic assessment of a whole-genome sequencing approach to detect repeat expansions using retrospective PCR data, and its clinical validation in patients in the 100000 Genomes Project who had a suspected neurological disorder, undiagnosed with previous genetic testing.

Methods

Study design and participants

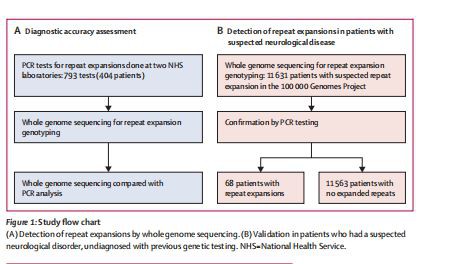

This evaluation of whole-genome sequencing for the detection of repeat expansions included both diagnostic accuracy and clinical accuracy assessments. Diagnostic accuracy was evaluated using data from patients who had previously been tested by PCR for repeat expansions known to cause neurological disease.4 Patients were identified from two sources: the 100 000 Genomes Project and the Genomic Laboratory based at Cambridge University Hospitals (Cambridge, UK). For both sets of patients, PCR testing had been performed on patient samples by laboratories in the National Health Service (NHS) as part of routine clinical assessment: for samples in the 100000 Genomes Project, PCR tests were done before recruitment to the project by the University College London Hospital Neurogenetics Laboratory (London, UK); samples with PCR-confirmed repeat expansions were obtained from patients tested by the Genomic Laboratory based at Cambridge. Patients with PCR-positive and PCR-negative test results for repeat expansion disorders were identified for inclusion in our study through laboratory record systems; all patients had given written informed consent for use of their sample for quality assurance and research and training purposes, as part of clinical service optimization and validation.

Whole-genome sequencing of each sample was done at one of two laboratories: Genomics England (Hinxton, UK) for the 100000 Genomes Project samples (n=254) and the Illumina Clinical Services Laboratory (ICSL; San Diego, CA, USA) for samples obtained by the Genomic Laboratory based at Cambridge (n=150). Overall, this dataset was used for the diagnostic accuracy part of the study, and consisted of PCR and whole-genome sequencing data from 404 patients, covering 13 loci that represent the most common neurological repeat expansion disorders: 11 loci associated with ataxia and late-onset neurodegenerative disorders (HTT, AR, ATN1, ATXN1, ATXN2, ATXN3, ATXN7, CACNA1A, TBP, C9orf72, and FXN), one locus associated with intellectual disability (FMR1), and one locus associated with myotonic dystrophy (DMPK). For each locus, PCR test data were available for at least one expanded allele (appendix p 24).

Clinical accuracy was assessed by examining the concordance of repeat expansions, as detected with whole-genome sequencing, with suspected clinical diagnosis after PCR confirmation in patients with suspected genetic neurological disorders (familial or early-onset forms of ataxia, neuropathy, spastic paraplegia, dementia, motor neuron disease, parkinsonian movement disorders, intellectual disability, or neuromuscular disorders) recruited to the 100000 Genomes Project in 2013–17. The 100000 Genomes Project is a UK program to assess the value of whole-genome sequencing in patients with unmet diagnostic needs in rare diseases and cancer. Following ethical approval for the 100000 Genomes Project by the East of England Cambridge South Research Ethics Committee (reference 14/EE/1112), including for data analysis and return of diagnostic findings to the patients, these patients were recruited by healthcare professionals and researchers from 13 Genomic Medicine Centres in England and were enrolled in the project if they or their guardian provided written consent for their samples and data to be used in research, including this study. Probands and, if feasible, other family members, were enrolled according to eligibility criteria set for specific rare disease conditions (appendix pp 5–11). Patients were recruited to the 100000 Genomes Project after standard-of-care genetic testing in the NHS, as indicated in the eligibility criteria. Standardized baseline clinical data were recorded using Human Phenotyping Ontology (HPO)23 against disease-specific data models.24 The disease status of family members, relative to the proband’s clinical indication for testing, was also collected.

To identify causative repeat expansions in patients with genetically undiagnosed disease, we tested patients with suspected genetic disorders consistent with a repeat expansion disease. Patients were selected on the basis of concordance of their disease and HPO terms with repeat expansion-associated disorders. Patients’ whole-genome sequencing data were interrogated to search for expansions in particular sets of repeats using four different repeat expansion panels according to their clinical characteristics (appendix p 5). The repeat expansions selected for inclusion on these panels are the most common neurological disease-causing repeat expansion loci. Patients with clinical features potentially compatible with more than one repeat expansion disorder were tested on multiple panels. If a repeat expansion call was made using whole-genome sequencing, confirmatory testing by PCR was performed.

For each patient with a confirmed repeat expansion, the local clinician was informed of the potential diagnostic result, and the contribution of the repeat expansion to the patient’s clinical features was assessed. For repeat expansions that fully or partially explained the patient’s clinical features, a diagnostic report was issued according to local standard procedures.

Procedures

For the NHS historical samples used in the diagnostic accuracy part of our study, repeat expansions had previously been tested using PCR amplification and fragment analysis. Southern blotting was performed for large C9orf72 expansions. In the clinical accuracy part of our study, repeat expansions detected by whole-genome sequencing in patients from the 100 000 Genomes Project were tested by PCR in samples stored in NHS genetic laboratories. Additional details, including primer sequences, are provided in the appendix (pp 2–3, 25–26).

DNA was prepared for whole genome sequencing using TruSeq DNA PCR-Free library preparation, and 150 bp or 125 bp paired-end sequencing was performed on either HiSeq 2000 or HiSeq X platforms at the highthroughput genomes facility for Genomics England, and at the ICSL. Genomes were sequenced to an average depth of 35× (31× to 37×; appendix p 27). Short-tandem-repeat genotyping was performed using the ExpansionHunter software package version 3.1.2.25,26 In brief, ExpansionHunter realigns sequencing reads across a predefined set of short tandem repeats to estimate the size of both alleles from an individual (appendix p 3).

ExpansionHunter output includes an estimation of the number of repeat elements, overall size, and confidence limit for each locus assessed. Guidelines from the Association for Medical Pathology and the College of American Pathologists recommend visual inspection of variant calls during the routine assessment of high-throughput sequencing variants.27

However, short tandem repeat variants cannot be adequately visualized by common visualization tools such as Integrative Genomics Viewer.28 To examine whole genome sequencing data underlying each genotype call, a graph visualization tool was used, which enables direct visualization of haplotypes and the corresponding read pileup of ExpansionHunter genotypes (appendix pp 3, 15). Visual inspection of the pileup graph was performed on all whole-genome sequencing short tandem repeat calls to confirm that the ExpansionHunter prediction for alleles was entirely contained in each read (ie, the repeat sequence was smaller than the sequencing read length); to confirm the presence of a monoallelic or biallelic expansion; to detect putative false-positive calls; and to detect false-negative alleles in biallelic repeat expansions, such as FXN (appendix pp 4, 16).

ExpansionHunter estimates repeat size from whole-genome sequencing data by analyzing sequencing reads that fully or partially contain a short tandem repeat. If a short tandem repeat allele is shorter than the read length, ExpansionHunter predicts the exact size; if a short tandem repeat allele is longer than the read length, ExpansionHunter estimates the repeat size within a CI, depending on locus sequence composition, the depth of sequencing, and the quality of sequencing.

Statistical analysis

We classified repeats as expanded by whole genome sequencing if the size predicted by ExpansionHunter was above the premutation cutoff, or non-expanded if the predicted size was below the cutoff (appendix p 28).

Sensitivity and CIs for whole-genome sequencing repeat expansion detection were calculated as the proportion of alleles with expanded repeats among previously PCR-confirmed alleles with expanded repeats. The specificity was estimated as the proportion of non-expanded alleles among previously tested nonexpanded repeats by PCR. A full description of the statistical formulae is provided in the appendix (p 1).

To compare repeat sizes by PCR with repeat size estimates by whole genome sequencing, PCR-quantified alleles were compared with repeat sizes predicted by ExpansionHunter for alleles shorter than the read length across all 13 short tandem repeat loci. Concordance was calculated by the percentage of repeat sizes predicted by ExpansionHunter that were in agreement with PCR-quantified size, taking into account the PCR error of plus or minus one repeat. Statistical analysis was performed using R statistical software version 3.6.3.

Role of the funding source

The study design, patient enrolment, data collection, and sequencing were led by employees of Genomics England and academic researchers. Employees of Illumina performed the sequencing of 150 patient samples as a planned component of the whole genome sequencing diagnostic accuracy study and developed ExpansionHunter. Employees of Genomics England, academic researchers, and coauthors RTH, ED, and MAE performed the analysis and interpretation of repeat expansions in patients recruited to the 100 000 Genomes Project. The funding sources had no role in data interpretation or writing of the report.

Results

The diagnostic accuracy of whole-genome sequencing to detect repeat expansions was evaluated against 793 PCR tests previously performed within the NHS from 404 patients (64 patients were tested for more than one repeat; figure 1). Of these tests, 183 were classified as having an expanded repeat and 610 as not having a repeat expansion by PCR, yielding a total of 221 expanded and 1321 non-expanded individual alleles across 13 disease loci (appendix pp 24, 28). Whole-genome sequencing correctly classified 215 of 221 expanded alleles and 1316 of 1321 non-expanded alleles compared with PCR test results (appendix pp 27, 29), showing an initial sensitivity of 97·3% (95% CI 94·2–99·0) and specificity of 99·6% (99·1–99·9; table 1). Following the visual correction of all calls based on the quality of the reads, sensitivity increased to 99·1% (96·8–99·9) and specificity to 100% (99·7–100; figure 2A, table 1). Visualization of the expanded alleles enabled detection of false-positive results and reclassification of all false-negative alleles in FXN, of which only one allele was correctly classified as expanded in samples with biallelic expansions (appendix pp 17, 18).

Repeat length was quantified by PCR in 509 PCR tests interrogating 945 alleles across 13 repeat expansion loci. Correlations between ExpansionHunter and PCR for repeat sizes shorter and larger than the sequencing read length (ie, 150 bp) are shown in the appendix (appendix p 19). High concordance was observed for repeats shorter than the read length, with 92·7% (836 of 902) agreement between PCR and ExpansionHunter. Locus variability was observed, with high concordance between ExpansionHunter and PCR for ATXN2, ATXN7, CACNA1A, and HTT, and low concordance for DMPK or TBP (appendix p 30). The lengths of alleles larger than the read length were underestimated by ExpansionHunter, which affected the accuracy of calling in DMPK, FMR1, and FXN (figure 2B, appendix pp 19, 31).

Although ExpansionHunter was able to correctly identify large expanded alleles in FMR1, DMPK, C9orf72, and FXN (appendix p 29), the predicted size estimates tended to be lower than those obtained by PCR as repeat size increased within the pathogenic range, which affected the ability to distinguish between large and small expansions in DMPK, C9orf72, and FXN, or between full expansions and permutations in FMR1 (appendix p 31). For example, loci with a PCR-assessed repeat length larger than 200 repeats in FMR1 and classified as a full mutation had a mean repeat size estimated by ExpansionHunter of 92·6 (SD 17·8; appendix p 31).

To test the ability of repeat expansion detection by whole genome sequencing to resolve the diagnosis of previously tested and genetically undiagnosed patients, we tested 11 631 patients with a suspected genetic neurological disorder recruited to the 100000 Genomes Project (figure 1). Whole-genome sequencing data were evaluated using four different repeat expansion panels according to the patient’s clinical features. The numbers of patients tested with each of the four panels are shown in table 2.

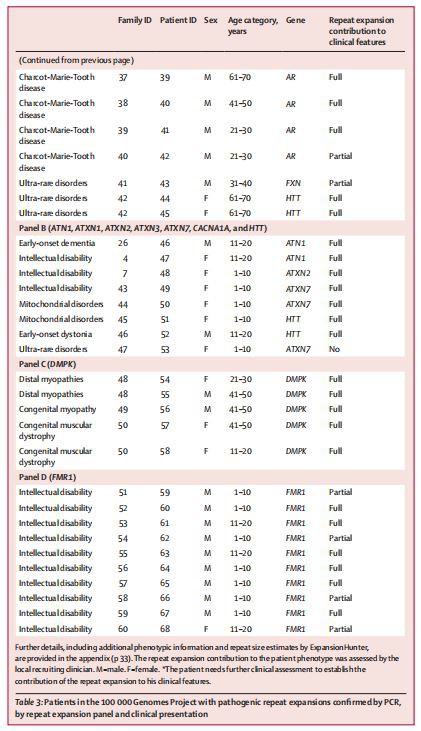

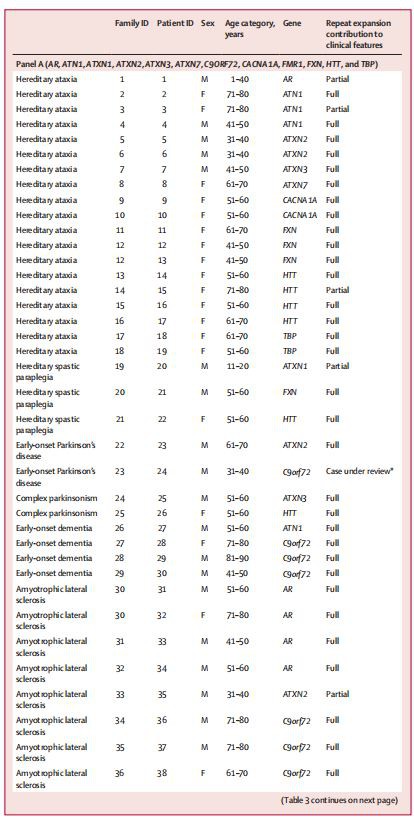

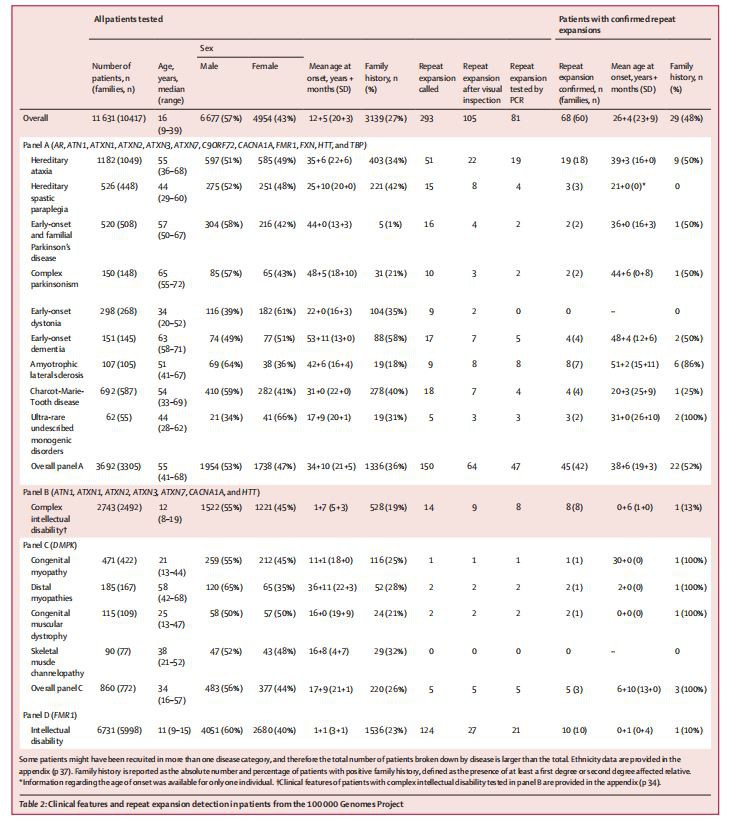

Overall, we detected and visually confirmed repeat expansions in samples from 105 patients (table 2, appendix pp 20, 33). Of these, 81 samples were available for confirmatory testing by PCR, and 68 were confirmed as having a repeat expansion (0·6% yield): 45 (1·2%) of 3692 in panel A, eight (0·3%) of 2743 in panel B, five (0·6%) of 860 in panel C, and ten (0·1%) of 6731 in panel D. Thirteen of 81 expansion calls were not confirmed as pathogenic repeat expansions (16% false discovery rate). Of these, two were non-expanded alleles in ATXN1 and ATXN2, four were FMR1 intermediate size calls (appendix p 21), and seven were FMR1 permutations.

Clinical details of the 68 patients with repeat expansions confirmed by PCR, including their clinical presentations, the repeat expansion identified, and the contribution of the repeat expansion to the patient’s clinical features are provided in table 3; the HPO terms, repeat size estimated by ExpansionHunter, and whether a diagnostic report has been issued are listed in the appendix (p 33).

Expansions were observed in patients presenting with a wide variety of overlapping clinical presentations tested with panel A (table 3, appendix p 22), including an ATXN2 repeat expansion in a patient with levodoparesponsive early-onset Parkinson’s disease and a history of progressive cerebellar ataxia, and AR expansions in four patients clinically diagnosed with Charcot-Marie-Tooth disease, including one with a genetically confirmed demyelinating neuropathy (ie, Charcot-Marie-Tooth disease type 1, patient 42; appendix p 33). A wide range of previous clinical diagnoses was observed in patients with pathogenic repeat expansions.

For example, in seven patients with amyotrophic lateral sclerosis or other motor neuron disease, expansions were identified in AR (n=4) and C9orf72 (n=3). In patients with suspected hereditary ataxia, we identified expansions in loci that had not been assessed as part of routine diagnostic workup within the NHS at the time of recruitment, including ATN1, ATXN2, ATXN3, ATXN7, CACNA1A, FXN, TBP, and HTT (table 3). We also detected repeat expansions in patients with clinical features consistent with alternative repeat expansion disorders, including a C9orf72 expansion in early-onset and familial Parkinson’s disease (patient 24, Table 3) and repeat expansions in the reduced penetrance range in HTT (38 repeats) in two sisters with a movement disorder, dementia, depression, and speech difficulties (patients 44 and 45), underscoring the diagnostic challenge presented by these repeat expansion disorders.

Eight children tested with panel B were found to have large CAG repeat expansions (figure 3), seven of which fully explained the patient’s clinical features. Six patients did not have an informative family history and had not been offered repeat expansion testing as part of their clinical assessment at the time of recruitment (patients 48–53; table 3, appendix p 33). Two of these children carried large HTT expansions (90–100 CAG repeats). Of note, one child had inherited the repeat from an unaffected parent with no family history of Huntington’s disease. Family testing is ongoing, but a reduced penetrance allele has been identified in the extended family, indicating that the repeat had expanded by over 60 repeat units in a single generation (patient 52). At the time of writing, no one in the family showed any signs of Huntington’s disease, and genetic counseling and testing are ongoing for the parents. Two children younger than 5 years carried large repeat expansions in ATXN7 and presented with complex multi-system disease. For one of these children (patient 50), their parent showed gait problems 2 years after enrolment in the 100000 Genomes Project. Similarly, a girl aged 10 years with intellectual disability was found to have a 99-repeat expansion in ATXN2, despite the fact that both parents were designated as unaffected, and a girl aged 18 years with dementia was found to carry a 69-repeat expansion in ATN1 (appendix p 33).

Five expansions in DMPK (panel C) were detected, including in a child and a mother with a clinical diagnosis of muscular dystrophy, in two siblings with suspected distal myopathy, and in an adolescent with congenital myopathy (patients 54–58). FMR1 expansions (panel D) were detected in nine boys and one girl, and a diagnosis of Fragile X syndrome fully or partially explained the presenting clinical features (patients 59–68).

Discussion

The diagnosis of repeat expansion disorders is challenging in health care due to heterogeneous and overlapping clinical features and non-specific clinical findings, which can increase in severity with age and in each subsequent generation. Repeat expansion disorders are among the most common causes of inherited neurological diseases.4 Nonetheless, patients might be underdiagnosed, either because insufficient genetic testing has been performed or because the causative genetic variants have yet to be discovered. Testing approaches are currently fragmented, and patients might have the incorrect repeat expansion locus tested29 or receive a molecular test for a different class of variant due to overlap of clinical features with other neurological genetic disorders.30

Whole-genome sequencing has been used in multiple settings as a first-line diagnostic test for rare neurological disorders but has previously been thought to have a low ability to detect repeat expansions.16 Several tools have been developed to identify repeat expansions from whole-genome sequencing in the research setting,31 but none of these approaches has been applied to whole-genome sequencing data collected from a large number of patients in single healthcare service. We present evidence that an algorithm designed to detect repeat expansions from whole-genome sequencing can reliably assess the most common disease-causing repeat expansions and resolve previously genetically undiagnosed cases in a large cohort of patients with neurological disorders. Our results indicate that whole-genome sequencing can distinguish between non-expanded and expanded alleles with high sensitivity and specificity across 13 repeat expansion loci (which can be further improved by visual inspection), can accurately calculate the size of alleles smaller than the read length, and might underestimate the size of large expansions in FMR1, DMPK, FXN, and C9orf72.

When detection of repeat expansions by whole genome sequencing was assessed against positive and negative results previously obtained at clinical diagnostic genomic laboratories using gold-standard methods, we found a minimum of 97·3% sensitivity and 99·6% specificity. Furthermore, we showed that both the specificity and the sensitivity can be improved by manual curation of the read pileup, enabling detection of false-positive results and reclassification of false-negative alleles in samples with biallelic expansions. Of the 6731 patients tested for FMR1 (panel D), 124 calls were predicted to be expanded. We were able to exclude 97 through visual inspection as likely false positives. This indicates that 1 in 54 whole genome sequencing tests would have an FMR1 call that would need to be visually inspected to discard a potential false-positive call. Work is ongoing to improve the ExpansionHunter genotyping method to reduce the number of false-positive calls for FMR1.

We show that repeat sizing is accurate for repeats smaller than the sequencing read lengths, and therefore that most non-expanded and premutation CAG repeat expansion disorder alleles can be sized accurately. These results are consistent with other studies showing a strong correlation between whole genome sequencing and PCR quantification of repeat lengths smaller than the sequencing read length.19,25,26 Whole genome sequencing expansion detection is limited in its sizing of alleles considerably larger than the read length, such as in Fragile X syndrome. We note that all FMR1 repeats previously classified by PCR as fully expanded (ie, >200 repeats) were classified by whole genome sequencing as permutation (50–200 repeats) in this study. Repeat size estimation for repeats larger than the read length is particularly important for loci in which the length of the repeat correlates with the disease clinical features. This includes DMPK, for which small expansions (50–150 repeats) cause mild myotonic dystrophy type 1 and large expansions (>1000 repeats) cause more severe disease, and spinocerebellar ataxia type 36 (NOP56), for which expansions larger than 650 repeats are considered pathogenic and repeat sizes of 15–650 are considered intermediate and variants of uncertain significance.

More than 40 repeat expansion loci have been identified; many of these loci have only been identified recently and are now associated with previously unexplained conditions, including cerebellar ataxia with neuropathy and vestibular areflexia syndrome (RFC1) 32 and myoclonic epilepsy (SAMD12).33 The most common neurological disease-causing repeat expansion loci were selected for our study based on the availability of positive and negative control samples.

The findings presented here suggest that ExpansionHunter should be able to classify non-expanded and expanded alleles accurately at any repeat expansion locus if the non-expanded alleles are smaller than the read length (ie, 150 bp). Although most repeat expansion loci have alleles that are smaller than 150 bp when nonexpanded, some loci for which the size of the nonexpanded allele is close to 150 bp (eg, NOTCH2NLC)34 might be more difficult to genotype using this approach. For loci where the expanded repeat is significantly larger than the read length, whole-genome sequencing can detect pathogenic expansions (eg, NOP56,35 RFC120,32). Emerging long-read sequencing technologies might offer complementary approaches when genotyping large expansions.36

Assessment of repeat expansions using whole-genome sequencing in 11 631 undiagnosed patients recruited to the 100 000 Genomes Project yielded 68 patients with explanatory findings. Patients were recruited to the 100 000 Genomes Project after standard-of-care genetic testing; therefore, the proportion of repeat expansions identified in this cohort represents an uplift of the diagnostic yield from standard NHS testing, which includes locus-specific testing for repeat expansion disorders such as FXN or DMPK. Of note, some diagnoses were not suspected based on the patient’s clinical features, including six pediatric patients who had no known family history of a repeat expansion disorder. The mean repeat expansion sizes predicted by whole genome sequencing in pediatric patients described in this study are substantially larger than the mean in adults, consistent with the expectation that larger expansions are associated with earlier and more severe onset, even in children. Further work is needed, but this finding suggests that an age-dependent and repeat size-dependent assessment of pathogenicity might support a pediatric diagnosis by reducing the potential hazard of identifying adult-onset risk alleles, leading to unsolicited predictive testing in children.

Our findings enable the establishment of a clinical diagnostic workflow for whole genome sequencing (appendix p 23). We propose that visual inspection is done for all calls classified as expanded to detect false positives, and for biallelic expansions for which only one expanded allele has been detected (eg, FXN). We recommend that laboratories use ExpansionHunter to assess for the presence of an expansion without adherence to size estimation and perform confirmatory PCR testing as a standard component of the testing workflow.

Rare inherited diseases include a wide range of clinical features, making locus-specific genomic testing inefficient, arduous, and expensive. We present evidence that clinical-grade whole genome sequencing with the potential to diagnose a range of rare neurological diseases typically presenting with a single base, indel, or copy number variants could now be extended to repeat expansions. Because whole-genome sequencing provides a single test that can identify the most common repeat expansions, as well as enabling testing of point mutations and copy number variants in genes associated with these conditions simultaneously, it offers the opportunity to identify most patients with these heterogeneous disorders who have not been diagnosed using locus-specific testing. In the era of emerging therapies for these disorders, early detection might become crucial.37 These results support the implementation of whole-genome sequencing for detection of repeat expansions in clinical diagnostic laboratories, an approach that has already been included in the NHS England National Genomic Test Directory,38 for investigation of undiagnosed rare neurological disease.

References

1 Ngo KJ, Rexach JE, Lee H, et al. A diagnostic ceiling for exome sequencing in cerebellar ataxia and related neurological disorders. Hum Mutat 2020; 41: 487–501.

2 Lynch DS, Koutsis G, Tucci A, et al. Hereditary spastic paraplegia in Greece: characterization of a previously unexplored population using next-generation sequencing. Eur J Hum Genet 2016; 24: 857–63.

3 Graziola F, Garone G, Stregapede F, et al. Diagnostic yield of a targeted next-generation sequencing gene panel for pediatric-onset movement disorders: a 3-year cohort study. Front Genet 2019; 10: 1026.

4 Paulson H. Repeat expansion diseases. Handb Clin Neurol 2018; 147: 105–23.

5 Gossye H, Engelborghs S, Van Broeckhoven C, van der Zee J. C9orf72 frontotemporal dementia and/or amyotrophic lateral sclerosis. Seattle, WA: University of Washington, 2015.

6 Klockgether T, Mariotti C, Paulson HL. Spinocerebellar ataxia. Nat Rev Dis Primers 2019; 5: 24.

7 Shakkottai VG, Fogel BL. Clinical neurogenetics: autosomal dominant spinocerebellar ataxia. Neurol Clin 2013; 31: 987–1007.

8 La Spada A. Spinal and bulbar muscular atrophy. In: Adam MP, Ardinger HH, Pagon RA, et al, eds. GeneReviews. Seattle, WA: University of Washington, 1999.

9 Gousse G, Natural H, Touraine R, et al. Lethal form of spinocerebellar ataxia type 7 with early onset in childhood. Arch Pediatr 2018; 25: 42–44.

10 Ansorge O, Giunti P, Michalik A, et al. Ataxin-7 aggregation and ubiquitination in infantile SCA7 with 180 CAG repeats. Ann Neurol 2004; 56: 448-52.

11 Ramocki MB, Chapieski L, McDonald RO, Fernandez F, Malphrus AD. Spinocerebellar ataxia type 2 presenting with cognitive regression in childhood. J Child Neurol 2008; 23: 999–1001.

12 Mitchell N, LaTouche GA, Nelson B, Figueroa KP, Walker RH, Sobering AK. Childhood-onset spinocerebellar ataxia 3: tongue dystonia as an early manifestation. Tremor Other Hyperkinetic Mov 2019; published online Sept 13.

13 Bird TD. Myotonic dystrophy type 1. In: Adam MP, Ardinger HH, Pagon RA, et al, eds. GeneReviews. Seattle, WA: University of Washington, 2019.

14 Aydin G, Dekomien G, Hoffman S, Gerding WM, Epplen JT, Arning L. Frequency of SCA8, SCA10, SCA12, SCA36, FXTAS and C9orf72 repeat expansions in SCA patients negative for the most common SCA subtypes. BMC Neurol 2018; 18: 3.

15 Turro E, Astle WJ, Megy K, et al. Whole-genome sequencing of patients with rare diseases in a national health system. Nature 2020; 583: 96–102.

16 Ashley EA. Towards precision medicine. Nat Rev Genet 2016; 17: 507–22.

17 Liu H-Y, Zhou L, Zheng M-Y, et al. Diagnostic and clinical utility of whole-genome sequencing in a cohort of undiagnosed Chinese families with rare diseases. Sci Rep 2019; 9: 19365.

18 Mousavi N, Shleizer-Burko S, Yanicky R, Gymrek M. Profiling the genome-wide landscape of tandem repeat expansions. Nucleic Acids Res 2019; 47: e90.

19 Tankard RM, Bennett MF, Degorski P, Delatycki MB, Lockhart PJ, Bahlo M. Detecting expansions of tandem repeats in cohorts sequenced with short-read sequencing data. Am J Hum Genet 2018; 103: 858–73.

20 Rafehi H, Szmulewicz DJ, Bennett MF, et al. Bioinformatics-based identification of expanded repeats: a non-reference intronic pentamer expansion in RFC1 causes CANVAS. Am J Hum Genet 2019; 105: 151–65.

21 Gross AM, Ajay SS, Rajan V, et al. Copy-number variants in clinical genome sequencing: deployment and interpretation for rare and undiagnosed disease. Genet Med 2019; 21: 1121–30.

22 Trost B, Engchuan W, Nguyen CM, et al. Genome-wide detection of tandem DNA repeats that are expanded in autism. Nature 2020; 586: 80–86.

23 Robinson PN, Kohler S, Bauer S, Seelow D, Horn D, Mundlos S. The Human Phenotype Ontology: a tool for annotating and analyzing human hereditary disease. Am J Hum Genet 2008; 83: 610–15.

24 Genomics England. Rare disease conditions clinical data models. 2018. https://www.genomicsengland.co.uk/?wpdmdl=5500 (accessed Aug 4, 2021).

25 Dolzhenko E, van Vugt JJFA, Shaw RJ, et al. Detection of long repeat expansions from PCR-free whole-genome sequence data. Genome Res 2017; 27: 1895-903.

26 Dolzhenko E, Deshpande V, Schlesinger F, et al. ExpansionHunter: a sequence-graph-based tool to analyze variation in short tandem repeat regions. Bioinformatics 2019; 35: 4754–56.

27 Roy S, Coldren C, Karunamurthy A, et al. Standards and guidelines for validating next-generation sequencing bioinformatics pipelines: a joint recommendation of the Association for Molecular Pathology and the College of American Pathologists. J Mol Diagn 2018; 20: 4–27.

28 Robinson JT, Thorvaldsdottir H, Winckler W, et al. Integrative genomics viewer. Nat Biotechnol 2011; 29: 24–26.

29 Schneider SA, van de Warrenburg BPC, Hughes TD, et al. Phenotypic homogeneity of the Huntington disease-like presentation in a SCA17 family. Neurology 2006; 67: 1701–03.

30 Schneider SA, Bird T. Huntington’s disease, Huntington’s disease look-alikes, and benign hereditary chorea: what’s new? Mov Disord Clin Pract 2016; 3: 342–54.

31 Bahlo M, Bennett MF, Degorski P, Tankard RM, Delatycki MB, Lockhart PJ. Recent advances in the detection of repeat expansions with short-read next-generation sequencing. F1000Res 2018; 7: 736.

32 Cortese A, Simone R, Sullivan R, et al. Biallelic expansion of an intronic repeat in RFC1 is a common cause of late-onset ataxia. Nat Genet 2019; 51: 649–58.

33 Ishiura H, Doi K, Mitsui J, et al. Expansions of intronic TTTCA and TTTTA repeats in benign adult familial myoclonic epilepsy. Nat Genet 2018; 50: 581–90.

34 Ishiura H, Shibata S, Yoshimura J, et al. Noncoding CGG repeat expansions in neuronal intranuclear inclusion disease, oculopharyngodistal myopathy, and an overlapping disease. Nat Genet 2019; 51: 1222–32.

35 Rafehi H, Szmulewicz DJ, Pope K, et al. Rapid diagnosis of spinocerebellar ataxia 36 in a three-generation family using short-read whole-genome sequencing data. Mov Disord 2020; 35: 1675–79.

36 Mantere T, Kersten S, Hoischen A. Long-read sequencing emerging in medical genetics. Front Genet 2019; 10: 426.

37 Ellerby LM. Repeat expansion disorders: mechanisms and therapeutics. Neurotherapeutics 2019; 16: 924–27.

38 National Health System. National Genomic Test Directory: testing criteria for rare and inherited disease. October, 2021.
