Acromegaly Accompanied By Diabetes Mellitus And Polycystic Kidney Disease
Mar 04, 2022
For more information: emily.li@wecistanche.com
Daisuke Otani, Takaaki Murakami, Takeshi Matsubara, Masato Hojo, Takuro Nakae, Koki Moriyoshi, Akihiro Yasoda, Ryota Usui, Hisato Tatsuoka, Masahito Ogura, Nobuya Inagaki and Taizou Yamamoto
1) Department of Diabetes, Endocrinology, and Nutrition, Kyoto University Graduate School of Medicine, Kyoto, Japan
2) Department of Diabetes and Endocrinology, Shiga General Hospital, Moriyama, Japan
3) Department of Nephrology, Kyoto University Graduate School of Medicine, Kyoto, Japan
4) Department of Neurosurgery, Shiga General Hospital, Moriyama, Japan
5) Department of Diagnostic Pathology, National Hospital Organization Kyoto Medical Center, Kyoto, Japan
6) Clinical Research Center, National Hospital Organization Kyoto Medical Center, Kyoto, Japan
Abstract
Acromegaly is characterized by autonomous excessive growth hormone (GH) secretion, generally due to GH-producing pituitary adenoma, and is associated with various systemic comorbidities including diabetes mellitus. Polycystic kidney disease (PKD) is characterized by the growth of numerous cysts in the kidneys that deteriorate renal function. While possible renal effects of excessive GH exposure have been a current issue in experimental medicine, only five cases of coexisting acromegaly and PKD have been reported previously, and little is known regarding the influence of acromegaly on renal disease. We treated a 50-year-old male with diabetes mellitus who showed a sudden and rapid decline of renal function along with increasing proteinuria, which led to diagnoses of PKD and acromegaly. His urinary protein levels were increased together with excessive GH secretion and worsening glycemic control. An increase in total kidney volume was also noted. Transsphenoidal surgery for the pituitary adenoma was successfully performed. Marked improvement of hyperglycemia and proteinuria were observed after the surgery, but renal function was unchanged. The patient’s clinical course suggested common aspects of excessive GH secretion as an accelerating factor in the progression of diabetic nephropathy and PKD via direct and indirect pathways. Although coexisting acromegaly and PKD is clinically rare, vigilance for early diagnosis of acromegaly is appropriate in patients with diabetes and/or PKD, especially in those showing unexpected exacerbation of renal dysfunction.
Keywords: Acromegaly, Diabetes mellitus, Growth hormone, Polycystic kidney disease
ACROMEGALY is an uncommon disorder characterized by autonomous and excessive secretion of growth hormone (GH) that is generally caused by GH-producing pituitary adenoma [1, 2].
The annual incidence of acromegaly is reported to be approximately 3–4 cases per million in most studies; the prevalence ranges from 85 to 133 cases per million in recent studies including in Japan [3]. Acromegaly is associated with various systemic comorbidities including cardiovascular disease, metabolic complications (hyper‐ glycemia and hyperlipidemia), respiratory diseases, osteoarthropathy, vertebral fractures, and possible increased risks of some neoplasms and with increased mortality when not adequately treated [2, 3]. The prevalence of diabetes mellitus in patients with acromegaly has been reported to be higher than that in the normal population, ranging from 11 to 53% [3]. Although GH stimulates insulin secretion, the hormone predominantly induces insulin resistance by countering the actions of insulin and subsequently increasing the prevalence of diabetes mellitus [3].
Polycystic kidney disease (PKD) is a renal disorder characterized by the growth of numerous cysts in the kidneys that replace renal parenchyma and deteriorate renal function [4]. There are two types of PKD: autosomal dominant PKD (ADPKD) caused by a germline mutation in the PKD1 and PKD2 genes, which is usually diagnosed in adulthood, and autosomal recessive PKD (ARPKD), which is typically identified in the first few weeks after birth. ADPKD is estimated to affect one individual per 4,033 of the population in Japan [5] and is responsible for 5 to 10% of cases of end-stage kidney disease [4]. Affected patients typically present with enlarged kidneys with bilateral multiple cysts [6]. Kid‐ ney volume, as well as proteinuria and glomerular filtration rate (GFR), can be used as markers for disease progression; changes in renal function are strongly associated with kidney volume in Japanese ADPKD patients [7].
Although a few cases of coexisting acromegaly and ADPKD have been reported [8-12], little is known of the influence of acromegaly on the severity and progression of PKD, especially in cases that also have diabetic nephropathy. We report here a rare case of acromegaly accompanied by both diabetes mellitus and PKD that presented with a rapid decrease in renal function and an increase in total kidney volume. The present case high‐ lights the potential effects of excessive GH secretion on kidney function and structure as well as the clinical importance of vigilance for acromegaly in cases with diabetes and its related progressive renal dysfunction and PKD.
Case Presentation
A 50-year-old male with progressively worsening glycemic control was referred to our clinic for treatment of diabetes mellitus. He had no family history of diabetes, pituitary, or other endocrine tumors including multiple endocrine neoplasia type 1. Although he had no firm family history of PKD, his father had hypertension and died of a ruptured aortic aneurism, but no more detailed clinical information on renal diseases was available. Our patient did not have any dietary restrictions and denied consuming alcohol.
His medical history revealed that he was on medication including valsartan (160 mg per day), amlodipine (10 mg per day), and carvedilol (20 mg per day) for hypertension since he was 36 years old. At 46 years of age, he was diagnosed with type 2 diabetes mellitus based on a hemoglobin A1c (HbA1c) level of 9.7% and a blood glucose level of 399 mg/dL with a negative result for anti-glutamic acid decarboxylase antibody and was prescribed metformin (500 mg per day) and glimepiride (0.5 mg per day). At the time of his initial diagnosis of diabetes, no findings suggesting diabetic nephropathy [urinalysis protein: negative, urine albumin/creatinine (Cr) ratio: 7.1 mg/gCr] or retinopathy were observed. Nine months later, he presented with microalbuminuria [urine albumin/Cr ratio: 285.5 mg/gCr]. At 48 years of age, overt proteinuria developed [urine protein/Cr ratio (UPCR): 0.96 g/GCR, serum Cr (SCr): 0.96 mg/dL, estimated GFR (eGFR): 67 mL/min/1.73 m2 ], although his HbA1c level was maintained up to 6.4% under the above-mentioned medical treatment. However, at 50 years of age, the patient’s glycemic control worsened (HbA1c: 7.6%), and he developed bilateral preproliferative diabetic retinopathy. He was then referred to our clinic (Fig. 1).
At his first visit, his UPCR was increased to 1.20 g/GCR concomitantly with a decline in eGFR (40 mL/min/1.73 m2 ). Abdominal ultrasonography and magnetic resonance imaging (MRI) revealed enlarged kidneys with bilateral multiple cysts (Fig. 2A, 2B), which suggested PKD. The estimated total kidney volume (TKV) was 1,078 mL. A renal biopsy was not undertaken because of the numerous renal cysts. After transient improvement of his glycemic control possibly due to additional nutritional guidance, his HbA1c became elevated again, and his UPCR rapidly increased (Fig. 1). During the follow-up, a careful re-interview revealed that the patient had noticed gradual enlargement of his hands and feet over several years. In addition to the treatment-refractory non-insulin-dependent diabetes, his coarsened facial features and enlargement of hands and feet led to suspicion of acromegaly. He was therefore admitted for further evaluation.
On admission, he was alert; height, 187 cm; weight, 88 kg; pulse, 63 beats per minute; and blood pressure, 117/83 mmHg. He was prescribed metformin [500 mg semel in die (s.i.d.)], glimepiride (0.5 mg s.i.d.), valsartan (160 mg s.i.d.), amlodipine (10 mg s.i.d.) and carvedilol (20 mg s.i.d.).

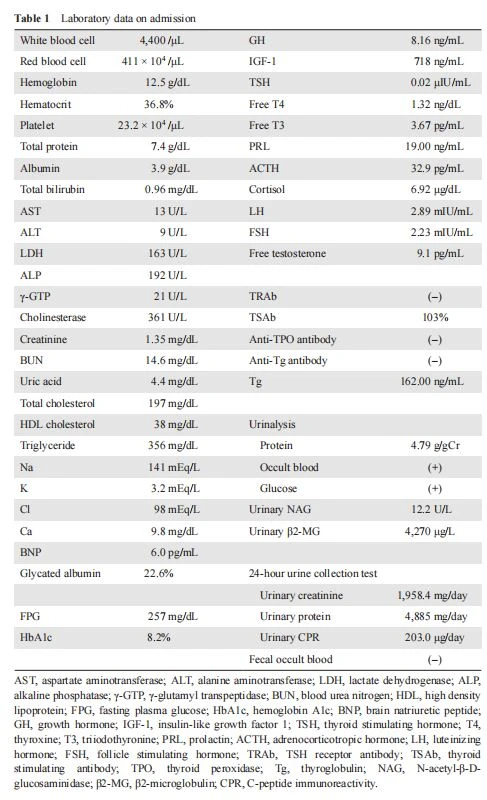

Laboratory data on admission are shown in Table 1. The diagnosis of acromegaly was confirmed by his clinical features as follows: (i) the serum insulin-like growth factor 1 (IGF-1) level was 718 ng/mL (normal reference range: 87 to 245 ng/mL); (ii) the serum GH level was elevated at baseline (8.16 ng/mL) and was not appropriately suppressed (nadir: 6.72 ng/mL) during 75 g oral glucose tolerance test; (iii) and pituitary MRI revealed a stellar mass of 9 mm in diameter [13]. The mass showed a low signal intensity on the T2-weighted images and had a hyperintense lesion suggesting Rathke’s cleft cysts (Fig. 3). Ankle radiography demonstrated heel pad thickness (23 mm), which was consistent with the diagnosis of acromegaly.
Endocrine data also showed hyperprolactinemia, subclinical hyperthyroidism, and an elevated serum thyroglobulin (Tg) level (Table 1). Anti-TSH receptor, anti-thyroid peroxidase (TPO), and anti-Tg antibodies were negative. Thyroid ultrasonography revealed an enlarged thyroid gland, while technetium-99m pertechnetate thyroid scintigraphy showed diffusely suppressed uptake in the thyroid gland (0.3%), suggesting destructive thyroiditis. The TSH and prolactin (PRL) responses to intravenous thyrotropin-releasing hormone (TRH) were blunted, whereas corticotropin-releasing hormone (CRH)-stimulated ACTH and cortisol responses and luteinizing hormone-releasing hormone (LHRH)- stimulated gonadotropin responses were normal.
Renal data revealed that UPCR and eGFR were 4.79 g/GCR and 43 mL/min/1.73 m2, respectively. Abdominal computed tomography (CT) scan showed growth of renal cysts as well as bilateral kidney stones (Fig. 2C, 2D). The estimated TKV was 1,180 mL. Magnetic resonance angiography (MRA) of the brain showed fusiform aneurysmal dilatations of the proximal A2 segment of the left anterior cerebral and basilar arteries. Echocardiography revealed left ventricular hypertrophy without evident valve abnormalities.
Three months after admission, transsphenoidal surgery for the pituitary tumors was performed. The tumor was intra‐ operatively found to be white-colored. In addition, the cystic lesions within the pituitary tumor contained color-less and white mucous fluids with a thin ciliated epithelium layer, which suggested Rathke’s cleft cysts when considered with the MRI findings [14]. Pathological examination of the tumor revealed sheet-like cells with oval nuclei and acidophilic or amphophilic cytoplasm, which is consistent with pituitary adenoma (Fig. 4A, 4B). Immunostaining for GH and PRL were positive (Fig. 4C, 4D) and anti-Cytokeratin (CAM 5.2) immuno‐ histochemistry showed mainly a perinuclear pattern of keratin filaments, indicating the structural features similar to densely-granulated somatotroph adenoma (Fig. 4E), in accord with the hypointense signal pattern on the T2-weighted MRI images (Fig. 3B) [15, 16]. The Ki-67 labeling index was less than 5% (Fig. 4F). Postoperative serum GH and IGF-1 levels were normalized (0.92 ng/mL and 170 ng/mL, respectively), indicating successful surgical resection of the GH-producing pituitary adenoma. Three months after surgery, HbA1c level and UPCR were markedly decreased (5.7% and 1.09 g/GCR, respectively), but eGFR was unchanged (34 mL/min/ 1.73 m2 ) (Fig. 1).
Discussion
We report a very rare case of acromegaly concomitant with diabetes mellitus and PKD. In the present case, the patient showed relatively early development of albuminuria and rapid progression of overt proteinuria and renal impairment, which was partly improved by surgical resection of the GH-producing pituitary adenoma. To our knowledge, the first case report of acromegaly associated with ADPKD was reported in 2002 [8]; four other cases have since been reported [9-12] and all of the affected individuals were female (Table 2). The present case shows that this combination of diseases can also occur in males. Ruggenenti et al. briefly mentioned an ADPKD patient with a pituitary adenoma who had been on continued treatment with the somatostatin analog octreotide for 2 years to control GH secretion [9]. Detailed data regarding renal function and kidney volume is unavailable in all five cases. In this report, we describe in detail long-term renal changes in a case with acromegaly accompanied by diabetes mellitus and PKD that high‐ lights the necessity of clinical vigilance for acromegaly and PKD in unusual cases of diabetes mellitus. In addition, this case provides clues to the pathological relationship between excessive GH and kidney disease, not only via direct pathways but also through indirect pathways such as diabetic nephropathy.
Delayed diagnosis of acromegaly remains a clinical issue [3]. In the present case, underlying acromegaly may have affected his glycemic control, as improvement was observed after surgery. Furthermore, treatment-refractory non-insulin-dependent diabetes mellitus can lead to untested suspicion of acromegaly in clinical settings [3].
Undiagnosed acromegaly can affect renal impairment indirectly via worsened glycemic control status; the increase of HbA1c in the present case appeared to affect the patient’s UPCR levels. There is accumulating evidence that the GH/IGF-1 axis plays an important role in the early development of diabetic kidney disease [17, 18]. In fact, IGF-1 induces mesangial cell proliferation as well as mesangial matrix production [19] and appears to protect mesangial cells from DNA damage induced by hyperglycemia [20]. Hence, GH is implicated in glomerular hypertrophy via IGF-1, even though some effects of GH on glomerular sclerosis are independent of IGF-1 [21]. In addition, it was recently demonstrated that GH directly increases the levels of reactive oxygen species and induces actin cytoskeleton reorganization in glomerular podocytes via functional GH receptors expressed on these cells [22]. This might cause apoptosis and dysfunction of glomerular podocytes [23, 24], an early event in diabetic nephropathy.
Interestingly, relatively early development of albuminuria was found after the patient’s diagnosis of diabetes mellitus in the present case. Moreover, he developed persistent proteinuria even under acceptable glycemic control status. After clinical follow-up under the assumption of diabetic nephropathy, PKD was found to be another cause of his proteinuria and renal impairment, based on abdominal ultrasonography and MRI findings. Although our case lacks a firm family history of PKD, his father died of ruptured aortic aneurism; a previous study found that family history was absent in 20 to 40% of ADPKD patients in whom the diagnosis of ADPKD was established based on imaging studies [6]. In this context, kidney imaging tests such as ultrasonography, MRI, and CT are warranted in diabetic cases presenting with the early development of albuminuria and unexpected progression to proteinuria and renal dysfunction to ensure a prompt diagnosis of PKD.
It has been established that prolonged exposure to GH and IGF-1 hypersecretion can be associated with morphological changes in the kidneys and the pathogenesis of PKD [25]. In mice transgenic for human GH, severe renal alterations including massive cystic dilation of the tubule have been observed [26]. In the kidneys of the mouse model of PKD, the mRNA expression of IGF-1 was increased with the progression of cystic lesions [27]. Similarly, kidney IGF-1 levels correlated positively with the progression of disease in the rat model of PKD, whereas diet-induced lowering of kidney IGF-1 levels resulted in the reduction of renal and cyst size [28]. In addition, polycystin-1 deficiency in PKD1 cystic cell lines has been associated with increased sensitivity to IGF-1 as well as a permissive effect of cyclic adenosine monophosphate (cAMP) on cell growth [29]. Another study demonstrated that the GH-signal transducer and activator of the transcription (STAT) axis was abnormally activated in PKD1-deficient mice, leading to enhanced proliferation [30]. Considering the fact that activated STAT3 was found to be strongly expressed in tubular epithelial cells from kidneys of patients with simple renal cysts [31], a possible implication of STAT3 activation by GH in renal cyst development was suggested [32]. This evidence suggests that GH and IGF-1 might play a pathogenic role in PKD.
In this context, TKV in the present case, which was measured by stereology using abdominal MRI or CT, should be discussed. Based on the longitudinal mixed-effect regression model described by Irazabal et al. [33], our patient was classified as Class 1B [his heightadjusted TKV (HtTKV) at 50 years of age: 576.5 mL/m], in which the estimated growth rate of HtTKV is 1.5 to 3% per year. In contrast, his HtTKV on admission was 631.0 mL/m, and the growth rate reached 9% within one year. Although postoperative follow-up of TKV would be helpful to confirm the involvement of acromegaly in the progression of PKD, the post-operative kidney imaging tests could not be been obtained due to the patient’s discontinuation of regular visits. Given the potentially rapid increase of HtTKV, further investigation regarding the association of acromegaly with the progression of PKD is desirable, even though their occurrence together is clinically very rare.
Finally, the possible use of tolvaptan in the present case should be mentioned. Tolvaptan is a vasopressin V2 receptor antagonist, which was approved for ADPKD in 2014 in Japan. Since previous studies showed tolvaptan reduced the annual rate of TKV growth and slowed the annual rate of eGFR decline in later-stage ADPKD patients [34, 35], it can be considered a future treatment option in such cases.
In conclusion, we report a case of acromegaly accompanied by diabetes mellitus and PKD. Rapidly worsening proteinuria and renal function suggest common aspects of excessive GH secretion as an accelerating factor of both diabetic nephropathy and PKD. Although coexist‐ ing acromegaly and PKD is clinically rare, vigilance for early diagnosis of acromegaly as well as PKD is appropriate in patients with unusual diabetes or unexpected exacerbation of proteinuria and renal dysfunction.
References
1 Melmed S (2006) Medical progress: acromegaly. N Engl J Med 355: 2558–2573.
2. Melmed S (2009) Acromegaly pathogenesis and treatment. J Clin Invest 119: 3189–3202.
3. Gadelha MR, Kasuki L, Lim DST, Fleseriu M (2019) Systemic complications of acromegaly and the impact of the current treatment landscape: an update. Endocr Rev 40: 268–332.
4. Wilson PD (2004) Polycystic kidney diseases. N Engl J Med 350: 151–162.
5. Horie S, Mochizuki T, Muto S, Hanaoka K, Fukushima Y, et al. (2016) Evidence-based clinical practice guidelines for polycystic kidney disease 2014. Clin Exp Nephrol 20: 493–509.
6. Pei Y (2006) Diagnostic approach in autosomal dominant polycystic kidney disease. Clin J Am Soc Nephrol 1: 1108–1114.
7. Tokiwa S, Muto S, China T, Horie S (2011) The relationship between renal volume and renal function in autosomal dominant polycystic kidney disease. Clin Exp Nephrol15: 539–545.
8. Fajfr R, Müller B, Diem P (2002) Hypophyseal incidentaloma in a patient with autosomal dominant polycystic kidney disease. Praxis (Bern 1994) 91: 1123–1126 (In German).
9. Ruggenenti P, Remuzzi A, Ondei P, Fasolini G, Antiga L, et al. (2005) Safety and efficacy of long-acting somatostatin treatment in autosomal-dominant polycystic kidney disease. Kidney Int 68: 206–216.
10. Kannabiran M, Singh V, Grewal S (2006) Acromegaly presenting as a psychotic disorder in a family with familial autosomal dominant polycystic kidney disease. Ger J Psychiatry 9: 136–138.
11. Syro LV, Sundsbak JL, Scheithauer BW, Toledo RA, Camargo M, et al. (2012) Somatotroph pituitary adenoma with acromegaly and autosomal dominant polycystic kidney disease: SSTR5 polymorphism and PKD1 mutation. Pituitary 15: 342–349.
12. Mangaraj S, Patro D, Choudhury AK, Baliarsinha AK (2019) A rare case of acromegaly and autosomal dominant polycystic kidney disease: case report and brief review of the literature. AACE Clin Case Rep 5: e302–e306.
13. The hypothalamic-pituitary dysfunction study group of the Ministry of Health Labour and Welfare (2019) Diagnosis and treatment of hypothalamic-pituitary dysfunction. Nihon Naibunpi Gakkai Zasshi 95 Suppl: 1–60 (In Japa‐ nese).
14. Nishio S, Fujiwara S, Morioka T, Fukui M (1995) Rathke’s cleft cysts within a growth hormone-producing pituitary adenoma. Br J Neurosurg 9: 51–55.
15. Heck A, Emblem KE, Casar-Borota O, Bollerslev J, Ringstad G (2016) Quantitative analyses of T2-weighted MRI as a potential marker for response to somatostatin analogs in newly diagnosed acromegaly. Endocrine 52: 333–343.
16. Akirov A, Asa SL, Amer L, Shimon I, Ezzat S (2019) The clinicopathological spectrum of acromegaly. J Clin Med 8: 1962.
17. Flyvbjerg A (2000) Putative pathophysiological role of growth factors and cytokines in the experimental diabetic kidney disease. Diabetologia 43: 1205–1223.
18. Vasylyeva TL, Ferry RJ Jr (2007) Novel roles of the IGF-IGFBP axis in etiopathophysiology of diabetic nephropathy. Diabetes Res Clin Pract 76: 177–186.
19. Feld SM, Hirschberg R, Artishevsky A, Nast C, Adler SG (1995) Insulin-like growth factor I induces mesangial proliferation and increases mRNA and secretion of collagen. Kidney Int 48: 45–51.
20. Yang S, Chintapalli J, Sodagum L, Baskin S, Malhotra A, et al. (2005) Activated IGF-1R inhibits hyperglycemia-induced DNA damage and promotes DNA repair by homologous recombination. Am J Physiol Renal Physiol 289: F1144–F1152.
21. Baud L, Fouqueray B, Bellocq A, Doublier S, Dumoulin A (1999) Growth hormone and somatostatin in glomerular injury. J Nephrol 12: 18–23.
22. Reddy GR, Pushpanathan MJ, Ransom RF, Holzman LB, Brosius FC, et al. (2007) Identification of the glomerular podocyte as a target for growth hormone action. Endocrinology 148: 2045–2055.
23. Pagtalunan ME, Miller PL, Jumping-Eagle S, Nelson RG, Myers BD, et al. (1997) Podocyte loss and progressive glomerular injury in type II diabetes. J Clin Invest 99: 342–348.
24. Kumar PA, Kotlyarevska K, Dejkhmaron P, Reddy GR, Lu C, et al. (2010) Growth hormone (GH)-dependent expression of a natural antisense transcript induces zinc finger E-box-binding homeobox 2 (ZEB2) in the glomerular podocyte: a novel action of GH with implications for the pathogenesis of diabetic nephropathy. J Biol Chem 285: 31148–31156.
25. Kamenický P, Mazziotti G, Lombès M, Giustina A, Chanson P, et al. (2014) Growth hormone, insulin-like growth factor-1, and the kidney: pathophysiological and clinical implications. Endocr Rev 35: 234–281.
26. Wanke R, Hermanns W, Folger S, Wolf E, Brem G (1991) Accelerated growth and visceral lesions in transgenic mice expressing foreign genes of the growth hormone family: an overview. Pediatr Nephrol 5: 513–521.
27. Nakamura T, Ebihara I, Nagaoka I, Tomino Y, Nagao S, et al. (1993) Growth factor gene expression in the kidney of murine polycystic kidney disease. J Am Soc Nephrol 3: 1378–1386.
28. Aukema HM, Housini I (2001) Dietary soy protein effects on disease and IGF-I in male and female Han: SPRD-Cy rats. Kidney Int 59: 52–61.
29. Parker E, Newby LJ, Sharpe CC, Rossetti S, Streets AJ, et al. (2007) Hyperproliferation of PKD1 cystic cells is induced by insulin-like growth factor-1 activation of the Ras/Raf signaling system. Kidney Int 72: 157–165.
30. Fragiadaki M, Lannoy M, Themanns M, Maurer B, Leonhard WN, et al. (2017) STAT5 drives abnormal proliferation in autosomal dominant polycystic kidney dis-ease. Kidney Int 91: 575–586.
31. Liu M, Xu YF, Feng Y, Zhai W, Che JP, et al. (2013) Androgen-STAT3 activation may contribute to gender dis‐ parity in human simply renal cysts. Int J Clin Exp Pathol 6: 686–694.
32. Yamamoto M, Matsumoto R, Fukuoka H, Iguchi G, Takahashi M, et al. (2016) Prevalence of simple renal cysts in acromegaly. Intern Med 55: 1685–1690.
33. Irazabal MV, Rangel LJ, Bergstralh EJ, Osborn SL, Harmon AJ, et al. (2015) Imaging classification of autosomal dominant polycystic kidney disease: a simple model for selecting patients for clinical trials. J Am Soc Nephrol 26: 160–172.
34. Torres VE, Chapman AB, Devuyst O, Gansevoort RT, Perrone RD, et al. (2017) Tolvaptan in later-stage autosomal dominant polycystic kidney disease. N Engl J Med 377: 1930–1942.
35. Oguro M, Kogure Y, Hoshino J, Ubara Y, Mizuno H, et al. (2018) Tolvaptan in Japanese patients with later-stage autosomal dominant polycystic kidney disease. J Nephrol 31: 961–966.
