1. Invention Title

A Sieving and Dispensing/Packaging Device for Cistanche tubulosa Extract Powder



2. Abstract

This invention relates to a sieving and dispensing/packaging device for Cistanche tubulosa extract powder, belonging to the technical field of production and processing of Cistanche extract powder. The device includes a feeding hopper and an impurity separation chamber arranged at the bottom of the feeding hopper. A discharge opening is provided at the bottom of the impurity separation chamber, and a sieve plate is fixedly connected on the inner side of the discharge opening. A reinforcement mechanism is arranged on the left side of the impurity separation chamber to enhance the impurity separation effect. The reinforcement mechanism includes a servo motor fixed to the left side of the feeding hopper, a connecting rod fixed to the output shaft of the servo motor, a first mounting roller fixed to the outer side of the connecting rod, and sawteeth fixed on the outer surface of the first mounting roller.



WECISTANCHE FACTORY

A fine screening chamber is fixed at the bottom of the impurity separation chamber, and an auxiliary assembly is arranged at the right end of the connecting rod for subsequent fine screening of the extract powder. By introducing the reinforcement mechanism, the device achieves omnidirectional stirring and cutting during sieving, effectively enhancing the separation of impurities from the main powder. This not only significantly reduces the risk of impurities entering the final product, but also improves product purity and efficacy.

Keywords (SEO): Cistanche tubulosa extract powder, herbal extract powder processing, botanical extract manufacturing, powder sieving, impurity removal, fine screening, powder handling equipment, GMP-friendly design, particle size control, pharmaceutical/functional ingredient production.

3. Technical Field

The present invention relates to the manufacturing technology of Cistanche tubulosa extract powder, and specifically to a sieving and dispensing/packaging device for Cistanche extract powder.



4. Background

In the fine processing of traditional herbal extract powders (botanical extracts), Cistanche tubulosa extract powder is valued for its unique active constituents and broad application potential. To ensure efficacy and user experience, quality control and particle size distribution control are essential steps in the production process.

However, existing sieving and dispensing equipment for Cistanche extract powder commonly presents several limitations:

Limited impurity separation using simple mesh structures
Many devices rely mainly on basic mesh screening. While particle grading may be achieved to some extent, the separation of impurities from the main powder can be insufficient. In practice, a portion of impurities may pass through with the main powder and enter the final product, reducing purity and potentially impacting efficacy.

Lack of effective agitation causing powder build-up and clogging
Without adequate agitation during sieving, powder may accumulate on the screen, leading to clogging. This decreases screening efficiency, increases the risk of screen damage, and raises replacement frequency. Accumulated powder may also be retained for long periods, increasing the risk of deterioration and quality issues.

Complex structures and inflexible connections affecting cleaning and maintenance
Overly complex structures increase cleaning and maintenance difficulty and may introduce operational safety risks. Inflexible component connections can make disassembly time-consuming-especially inconvenient for equipment requiring frequent screen replacement or impurity removal.

5. Summary of the Invention

To address the above issues, this invention provides a Cistanche tubulosa extract powder sieving and dispensing/packaging device with improved screening performance and enhanced impurity separation.

5.1 Technical Solution (Core Structure)

The device includes:

A feeding hopper (1);

An impurity separation chamber (2) located at the bottom of the feeding hopper (1);

A discharge opening provided at the bottom of the impurity separation chamber (2);

A sieve plate (3) fixed on the inner side of the discharge opening;

A reinforcement mechanism arranged on the left side of the impurity separation chamber (2) to improve impurity separation;

A fine screening chamber (8) fixed at the bottom of the impurity separation chamber (2);

An auxiliary assembly arranged at the right end of the connecting rod (5) for subsequent fine screening of the extract powder.

5.2 Reinforcement Mechanism (Improving Impurity Separation)

The reinforcement mechanism includes:

A servo motor (4) fixed to the left side of the feeding hopper (1);

A connecting rod (5) fixed to the output shaft of the servo motor (4);

A first mounting roller (6) fixed on the outer side of the connecting rod (5);

Sawteeth (7) fixed on the outer surface of the first mounting roller (6).

This structure enables cutting + full-direction agitation of the powder in the impurity separation chamber to enhance separation between the main powder and impurities.

6. Beneficial Effects

Compared with existing technologies, the invention provides the following advantages:

Enhanced impurity separation and improved product purity
Through the reinforcement mechanism, the powder is subjected to omnidirectional stirring and cutting during sieving, which improves impurity separation efficiency, reduces impurity carryover into final product, and improves purity and efficacy-supporting safer and more consistent usage experience.

Reduced clogging, higher efficiency, and lower operating cost
Through the auxiliary assembly in the fine screening chamber, powder build-up and screen clogging are mitigated, improving screening throughput, reducing screen damage and replacement frequency, and ultimately lowering production cost.



7. Brief Description of the Drawings

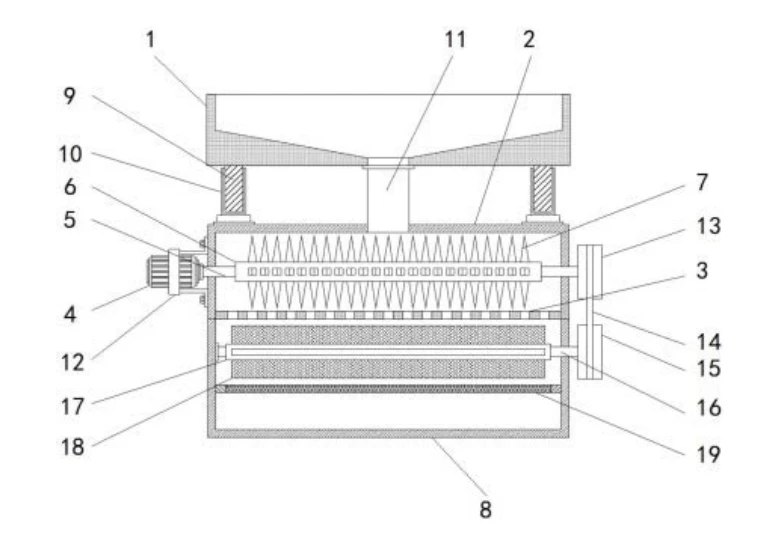

FIG. 1: Structural schematic diagram of the device

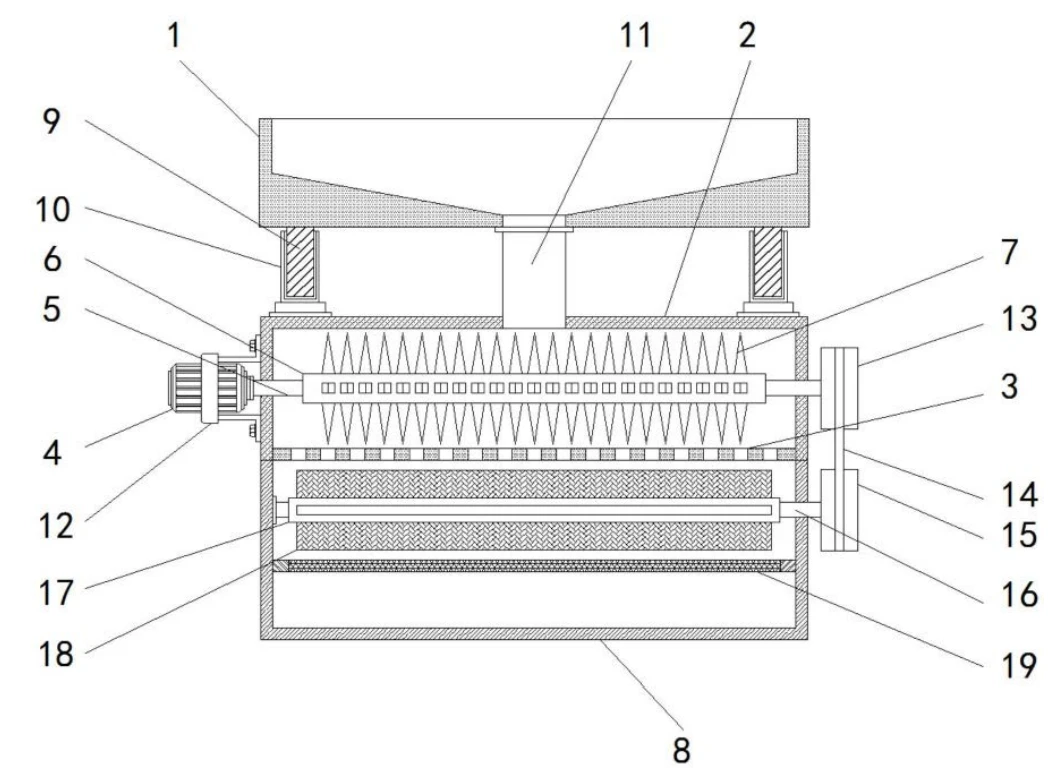

FIG. 2: Front view schematic diagram of the device

FIG. 3: 3D view of the feeding hopper and threaded fixing rods

FIG. 4: Rear view schematic diagram of the device

8. Reference Numerals (Parts List)

Feeding hopper

Impurity separation chamber

Sieve plate

Servo motor

Connecting rod

First mounting roller

Sawteeth

Fine screening chamber

Threaded fixing rod

Threaded connecting sleeve

Discharge pipe

Motor stabilizing frame

Driving pulley

Transmission belt

Driven pulley

Mounting shaft/rod

Second mounting roller

Agitation blades

Screen mesh



9. Detailed Description of Embodiments (Structure and Assembly)

9.1 Overall Structure

As shown in FIGS. 1–4, the sieving and dispensing/packaging device for Cistanche tubulosa extract powder includes the feeding hopper (1) and the impurity separation chamber (2) arranged at the bottom of the feeding hopper (1). A discharge opening is provided at the bottom of the impurity separation chamber (2), and the sieve plate (3) is fixed on the inner side of the discharge opening. A reinforcement mechanism is arranged on the left side of the impurity separation chamber (2).

The reinforcement mechanism includes the servo motor (4), connecting rod (5), first mounting roller (6), and sawteeth (7). A fine screening chamber (8) is fixed to the bottom of the impurity separation chamber (2). The right end of the connecting rod (5) is provided with an auxiliary assembly for subsequent fine screening.

9.2 Quick-Disassembly Connection Between Hopper and Separation Chamber (Easy Cleaning)

At the four corners of the bottom of the feeding hopper (1), threaded fixing rods (9) are fixedly connected. At the four corners of the upper surface of the impurity separation chamber (2), threaded connecting sleeves (10) are rotatably connected. The bottom ends of the threaded fixing rods (9) extend into the corresponding threaded connecting sleeves (10) and are threadedly engaged.
This connection design allows convenient assembly/disassembly and facilitates cleaning of the feeding hopper (1).

9.3 Material Feeding Path

A discharge pipe (11) is fixed at the bottom of the feeding hopper (1). A feed inlet opening is formed on the upper surface of the impurity separation chamber (2), and the bottom end of the discharge pipe (11) extends into the feed inlet opening.
This ensures smooth transfer of Cistanche extract powder from the hopper (1) into the impurity separation chamber (2).

9.4 Motor Stabilization

A motor stabilizing frame (12) is fixed on the outer side of the servo motor (4). The motor stabilizing frame (12) is bolted to the left side wall of the impurity separation chamber (2), improving motor stability, reducing vibration, and enhancing overall equipment durability.



9.5 Sawteeth Layout (Omnidirectional Cutting/Stirring)

There are four groups of sawteeth (7). Each group includes twenty-three (23) sawteeth. The four groups are arranged on the top, bottom, front, and back surfaces of the first mounting roller (6).
This arrangement ensures comprehensive agitation and cutting action during rotation, thereby improving impurity separation.

9.6 Auxiliary Assembly for Fine Screening

The auxiliary assembly includes:

A driving pulley (13) fixed at the right end of the connecting rod (5);

A transmission belt (14) drivingly connected to the driving pulley (13);

A driven pulley (15) drivingly connected to the lower end of the belt (14);

A mounting rod (16) fixed at the center of the driven pulley (15);

A second mounting roller (17) fixed on the outer side of the mounting rod (16);

Four agitation blades (18) fixed on the outer surface of the second mounting roller (17).

The impurity separation chamber (2) communicates with the fine screening chamber (8) through the discharge opening. A screen mesh (19) is fixed inside the fine screening chamber (8), positioned below the second mounting roller (17). The agitation blades (18) promote powder movement and contact with the screen mesh (19), improving fine screening efficiency.

9.7 Shaft Penetration and Transmission Relationship

The right end of the connecting rod (5) sequentially passes through the left wall of the impurity separation chamber (2), the mounting opening of the first mounting roller (6), and the inner right wall of the impurity separation chamber (2), extends to the center of the driving pulley (13), and is fixedly connected to the driving pulley (13).

The left end of the mounting rod (16) sequentially passes through the right wall of the fine screening chamber (8) and the mounting opening of the second mounting roller (17), and is rotatably connected to the inner left wall of the fine screening chamber (8).

The four agitation blades (18) are respectively arranged on the front, back, top, and bottom surfaces of the second mounting roller (17).

9.8 Cleaning Door, Observation Window, and Discharge Door (Operational Convenience)

A cleaning door is arranged on the front side of the impurity separation chamber (2), allowing operators to enter for thorough cleaning and maintenance of the sieve plate (3), sawteeth (7), and related components-supporting hygiene, preventing cross-contamination, and reducing failure rates.
An observation window is arranged on the rear side of the impurity separation chamber (2) for monitoring separation status.
A discharge door is arranged on the front side of the fine screening chamber (8) for convenient collection of the screened Cistanche extract powder.

9.9 Recommended Materials (Manufacturing Considerations)

The impurity separation chamber (2) should be made of stainless steel, which offers excellent corrosion resistance, wear resistance, and ease of cleaning-commonly used in pharmaceutical and food processing equipment.
The fine screening chamber (8) may be made of polymer materials such as polypropylene (PP) or polyvinyl chloride (PVC), which provide good sealing performance, impact resistance, and transparency, and are easy to process and mold.



10. Working Principle (Process Flow)

Cistanche tubulosa extract powder is loaded into the feeding hopper (1). The discharge pipe (11) ensures smooth delivery into the impurity separation chamber (2).

After the servo motor (4) starts, the connecting rod (5) drives the first mounting roller (6) and its sawteeth (7) to rotate. The rotating sawteeth generate a cutting/shearing effect inside the impurity separation chamber (2), separating impurities from the main powder.

The separated powder passes through the sieve plate (3) and falls into the fine screening chamber (8), while impurities are retained by the sieve plate (3).

Meanwhile, rotation of the connecting rod (5) drives the driving pulley (13). Through the belt (14) and driven pulley (15), the mounting rod (16) rotates, driving the second mounting roller (17) and agitation blades (18).

The agitation blades (18) stir the powder in the fine screening chamber (8), improving homogenization and increasing contact with the screen mesh (19). Powder that passes through the screen mesh (19) meets the required particle size specification; powder that does not pass remains above the mesh and continues to be stirred and screened.

The final fine-screened powder is collected through the discharge door on the fine screening chamber (8).



11. Notes on Implementation and Control

The installation methods, connection methods, and arrangement described herein are common mechanical structures; any implementation that achieves the beneficial effects may be adopted. Electrical components are connected to a main controller and a power supply. The main controller may be a conventional control device (e.g., computer/controller). Standard programming can be used to control the electrical components, and existing electrical connection technologies are well known in the art, therefore details are not repeated.

Terms such as "first" and "second" are used only to distinguish different entities/operations and do not imply actual order or relationship. The terms "include"/"comprise" are intended to be non-exclusive, meaning that additional elements not explicitly listed may also be included.



12. Key Claim Points (Readable Blog Summary of the Claims)

Below is a concise, reader-friendly summary corresponding to the main claim set:

A device including a feeding hopper, impurity separation chamber, sieve plate, reinforcement mechanism (servo motor + connecting rod + first roller + sawteeth), fine screening chamber, and auxiliary fine screening assembly.

Threaded fixing rods and threaded connecting sleeves enable quick assembly/disassembly between hopper and separation chamber.

A discharge pipe and feed inlet opening ensure smooth feeding into the impurity separation chamber.

A motor stabilizing frame bolted to the chamber improves servo motor stability.

Four groups of sawteeth (23 each) distributed on top/bottom/front/back of the first roller for omnidirectional action.

Auxiliary assembly includes pulleys, belt, mounting rod, second roller, and four agitation blades.

The connecting rod passes through the chamber walls and roller mounting opening and connects to the driving pulley center.

The mounting rod passes through the fine screening chamber wall and second roller mounting opening and is rotatably connected.

Four agitation blades arranged on front/back/top/bottom of the second roller.

The impurity separation chamber communicates with the fine screening chamber; a screen mesh is fixed inside and located below the second roller.
