Disease Modeling With Kidney Organoids

Abstract: Kidney diseases often lack optimal treatments, causing millions of deaths each year. Thus, developing appropriate model systems to study human kidney disease is of utmost importance. Some of the most promising human kidney models are organoids or small organ-resembling tissue collectives, derived from human-induced pluripotent stem cells (hiPSCs). However, they are more akin to a first-trimester fetal kidney than an adult kidney. Therefore, new strategies are needed to advance their maturity. They have great potential for disease modeling and eventually auxiliary therapy if they can reach the maturity of an adult kidney. In this review, we will discuss the current state of kidney organoids in terms of their similarity to the human kidney and use as a disease modeling system thus far. We will then discuss potential pathways to advance the maturity of kidney organoids to match an adult kidney for more accurate human disease modeling.

Keywords: organoids; kidney; development; metanephros; ureteric; tubule; chip; nephrology; disease-modeling

CLICK HERE TO GET CISTANCHE FOR CKD TREATMENTS

1. Introduction

Until recently, human diseases have been modeled in the following two ways: with animals or with two-dimensional cell culture. Animal models allow for the study of disease pathways and drug development in whole organisms, but they do not account for human genetic and anatomical makeup. On the other hand, human cell culture allows scientists to study human-specific disease mechanisms and evaluate treatments to a great and precise molecular depth. However, cell culture does not recapitulate an organ’s complex three-dimensional structure and physiology.

Human organoids are simplified versions of human organs, with realistic three-dimensional microanatomy and organ-level functions (e.g., tear production in lacteal organoids and hair growth in skin organoids) [1,2]. Through self-organization processes, they are derived in vitro from tissue cells or pluripotent stem cells. Induced pluripotent stem cells (iPSCs), invented in 2008 by Takahashi and Yamanaka, are the most popular cells for organoid formation [3]. This is due to several compelling advantages that iPSCs offer. Firstly, they provide an unlimited renewable cellular source and can differentiate into multiple cell types. More importantly, they represent the underlying genetic composition of patients. Thus, patient-derived human iPSCs (hiPSCs) may be used to study disease via organoids at the individual level, allowing for advancements in personalized medicine. To date, organoid models of various human organs, such as the heart and the brain, have been used to study disease. For this review, we will focus on kidney organoids and discuss how they may be used to model the human kidney and its associated diseases, screen for drug toxicity, and perhaps supplement kidney function.

Kidney disease affects 10% of the world’s population [4]. Despite identifying the underlying genetic cause for many forms of kidney diseases, there are no optimal therapies available to manage them. This unfortunate situation reflects the lack of in vitro model systems that recapitulate human kidney disease for targeted therapeutic development. Kidney organoids offer a human-based, personalizable, 3-D research platform to investigate genetic kidney diseases, kidney injury, and drug toxicity. Along with its capacity to serve as a modeling system, a kidney organoid possesses the potential to advance transplantation medicine. Thus, to maximize its potential in both these fields, the kidney organoid must resemble adult human kidney structure and function. Here, we will review the current state of the pluripotent cell-derived human kidney organoid, its potential uses, and areas for improvement.

2. The Human Kidney vs. Kidney Organoids

HiPSCs serve as proxies for embryonic PSCs. Thus, forming a kidney organoid from hiPSCs entails replicating human embryonic kidney development. Below, we will explore how the kidney organoid is developed and compare it against the human kidney.

2.1. Human Kidney Development

Blood is filtered in three distinct phases throughout embryonic development. In the first phase, a structure termed the pronephros develops in the 4-week-old human embryo and processes blood in the cervical region until around week 5 [5]. Next, the mesonephros form in the thoracic region of the embryo and filter the blood from the start of week 5 through about week 10 of embryonic development. While the mesonephros is filtering blood, the final filtration system, which will eventually become the adult kidney, begins to form (Figure 1). It forms in the following two parts: the metanephric mesenchyme and the ureteric bud. The metanephric mesenchyme forms all parts of the nephron except the collecting duct, while the ureteric bud forms the collecting duct. These structures go through a reciprocal induction cycle, wherein the metanephric mesenchyme and ureteric bud stimulate the growth of one another and fuse, forming a structure called the metanephros. The newly formed metanephroi filter blood from the iliac branches down to the pelvic region. At the same time, the ureteric bud bifurcates and continues to branch to form many collecting ducts within the kidney [6,7]. Subsequently, these fused metanephric structures ascend into the abdomen region of the embryo as it develops and forge blood supply from the primitive aorta. These processes are summarized in Figure 1. It is important to note that metanephric mesenchyme and ureteric bud cells are primitive, and thus maintain multipotent potential, whereas adult differentiated kidney cells are committed to their particular lineage [8].

BEST HERBS FOR CKD

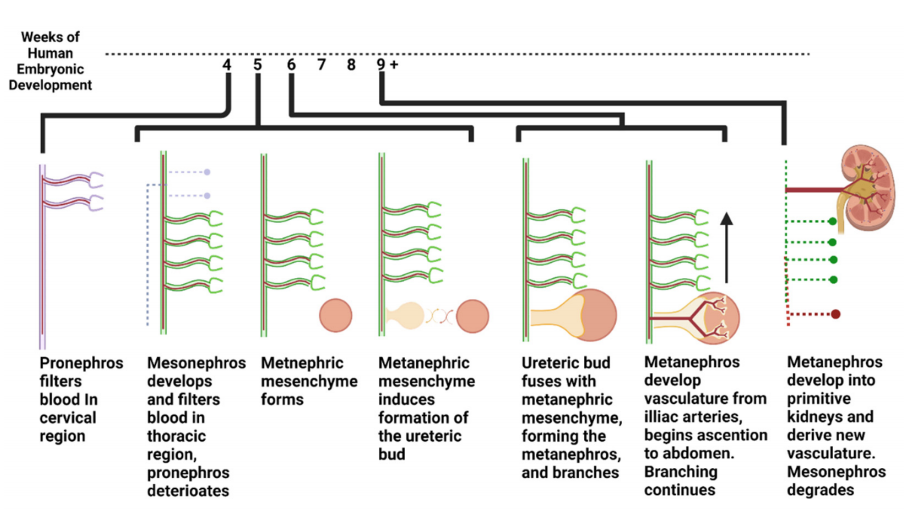

Figure 1. Development of the human urinary system from weeks 4 to 9 in womb.

2.2. Protocols to Generate Kidney Organoids

Kidney organoids can be formed from tissue-derived differentiated cells or pluripotent stem cells. To develop a kidney organoid from tissue-derived cells, one may arrange the differentiated adult cells in three-dimensional space ex vivo to mimic human organ architecture [9]. Organoid protocols for tissue-derived differentiated cells are covered elsewhere. In this review, we will focus on stem cell-derived kidney organoids. To create these systems, scientists may culture pluripotent stem cells in the presence of kidney-specific endogenous morphogens and extracellular components. Stem cells can then self-assemble into kidney-like structures, mimicking embryonic kidney development. Organs, such as the intestine, harbor endogenous stem cell populations in the adult tissue with which scientists may create organoids [10]. However, since there has been no clear evidence that an adult human kidney contains a stem cell niche, stem cell-derived kidney organoids must be made from pluripotent stem cells (either embryonic or hiPSC) [11].

Stem cell-derived kidney organoids may be classified into the following two categories: nephron progenitor (NP) organoids and ureteric bud (UB) organoids. Both types of organoids have been well-established as disease models. NP organoids resemble the metanephric mesenchyme, which contains multipotent NP cells. In fact, a single metanephric mesenchymal cell can give rise to all epithelial cells of the nephron, excluding the collecting duct [8]. Methodologies for generating hiPSC-derived NP organoids include 2D culture with subsequent aggregation in a porous transwell plate (e.g., Takasato et al. (2016), Morizane et al. (2015)) or 3D culture in a hydrogel (e.g., Freedman et al. (2015)) [12–14]. These organoids develop glomerular and tubular structures. NP organoids derived from two of the most popular NP protocols by Takasato and Morizane were compared in an extensive omics analysis by Wu et al. (2018) [15]. They found that while the Takasato protocol generates about 11% podocyte-like cells and 21% off-target cells per organoid, the Morizan protocol generates about 28.5% podocyte-like cells and 14.3% off-target cells [15]. Takasato’s organoids also appear to develop a small amount of UB-like regions but predominantly imitate the metanephric mesenchyme, thus classifying them as NP organoids [12]. Furthermore, Morizane et al. (2015) and Takasato et al. (2016) protocols lack an extracellular hydrogel environment that is present in that of Freedman et al.’s (2015) work [14]. Garreta et al. (2019) argue that the presence of a hydrogel in organoid formation improves kidney structure formation and enhances the production of early IM markers, posterior IM markers, and anterior IM markers [16].

In contrast to NP organoids, UB organoids imitate the ureteric bud, which gives rise to the collecting duct system. Methods for generating UB organoids have been more recently developed and include embryoid body cultivation and subsequent aggregation to low-adherent wells [17]. These organoids have tubular and collecting duct structures. Finally, NP and UB organoids have also been combined to generate higher-order co-culture structures to recapitulate adult human kidney phenotypes [17]. The most popular protocols for kidney organoid formation are summarized in Figure 2 below [12–14,17–19].

BEST HERBS FOR CKD

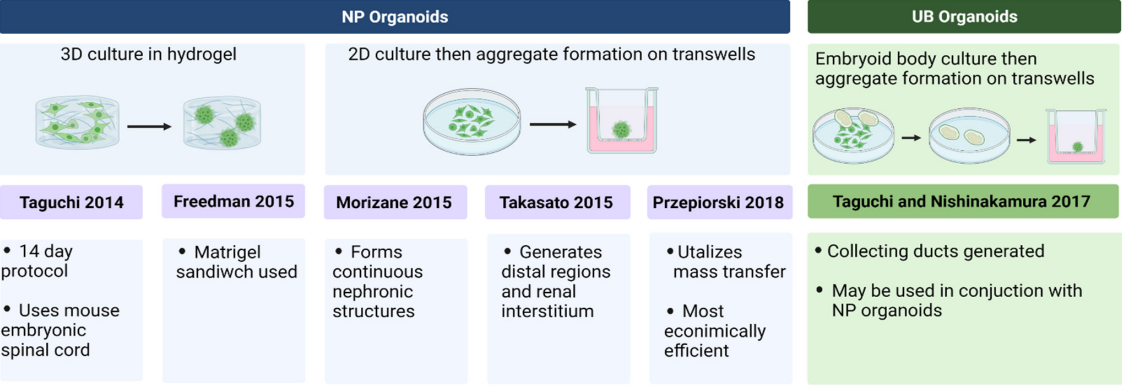

Figure 2. Summary of the Most Popular Organoid Formation Protocols

2.3. How They Stack Up: Kidney Organoids vs. Human Kidneys

The protocols described above primarily involve the self-assembly of hiPSCs into organoids. They mimic fetal conditions to induce hiPSCs to differentiate into kidneyspecifific lineages and form kidney-specific structures. The first fetal condition they replicate is primitive streak signaling. The primitive streak is a section of the embryo that develops before the three germ layers separate. Most protocols do this by utilizing the WNT signaling agonist CHIR. Next, for NP lineage derivation, posterior-intermediate mesoderm (PIM) must be induced, and for UB lineage, anterior-intermediate mesoderm (AIM) must be induced [17]. Interestingly, Takasato et al. (2015) found that the longer the period of CHIR administration, the more posterior-like mesoderm developed, while the shorter the period, the more anterior-like mesoderm developed [20]. Thus, increased WNT signaling duration leads to more glomerular and proximal structure generation, and decreased WNT signaling duration leads to more distal structure generation.

Upon NP protocol completion, organoids with both glomerular and tubular regions develop. However, they are immature. Studies have shown that hiPSC-derived kidney organoids mimic the first-trimester fetus [20]. One of the most extensive analyses on this topic was performed by Subramanian et al. (2019), who utilized RNA-seq to compare kidney organoids to 8-week, 17-week, and adult human kidneys. They concluded that kidney organoids are more similar to human kidneys in weeks 8 and 17 in the fetus than in adult kidneys [21]. Furthermore, kidney organoids show staining of primitive multipotent markers such as SIX2+ throughout the kidney, whereas the adult differentiated human kidney does not express such markers [22]. Therefore, to use the kidney organoid as a proxy for the adult human kidney to study disease, it must advance in gestational age.

Kidney organoids may not only more closely mimic early metanephros than the proper adult human kidney, but they may even more closely resemble the mesonephros than the metanephros if morphogen concentration is improperly regulated [23]. Addressing these concerns, Tsujimoto et al. (2020) investigated in vitro hiPSC differentiation into mesonephric NPs, metanephric NPs, and UB cells [24]. This study identified several factors that differentiate these three lineages and may, thus, be applied to the future study of these three distinct systems [24]. Other key advances in organoid maturation include NP-UB interactions and vascularization. Some of the most notable studies to address these issues were performed by Taguchi and Nishinakamura (2017) and Tsujimoto et al. (2020) [17,24]. These studies generated MM-UB co-cultured organoids and transplanted them into mice, where they were vascularized. Generation of these metanephric higherorder structures signifificantly advanced stem cell-derived kidney structure likeness to actual human kidneys. However, even these advanced systems were not able to recapitulate the more extensive UB branching that occurs throughout the second and final trimesters in vivo [24]. These findings underscore the need to replicate endogenous mature kidney functions and interactions that current organoids lack, such as fluid flow.

3. Kidney Organoids as Model Systems

The resemblance of kidney organoids to human kidneys makes them suitable for disease modeling and drug screening. They may be made in less than a month, personalized to an individual, and produced in bulk [12–14,17–19]. In addition, they may be cultured in vitro or transplanted into mice, rats, or chick eggs to form complete in vivo models. Below, we will explore analysis that may be conducted with kidney organoids, as well as current and future uses of kidney organoids in biomedical research.

3.1. Kidney Organoid Analysis

3.1.1. In Vitro Assays

Various physiological, molecular, and functional assays may be performed on kidney organoids. In terms of molecular assays, different transcriptomic analyses have been successfully conducted in kidney organoids [25]. For example, Takasato et al. (2015) extracted RNA from organoids and performed RNA sequencing and qRTPCR analyses [20].

Others, such as Wu et al. (2018) have performed nuclei isolation and snRNA sequencing, in addition to DropSeg scRNA sequencing in kidney organoids. In addition to RNA levels various protein levels have been quantified and compared from kidney organoid lysate via immunoblot (e.g., Cruz et al., 2017; Morais et al, 2022) [26,27]. Furthermore, immunocytochemistry analysis has been routinely performed in kidney organoids to examine specific nephron structures. This is often performed as whole organoid staining; alternatively, tissue sections have also been used for probing (e.g.Takasato et al, 2015; Cruz et al., 2017) (20,26]. These studies have revealed that kidney organoids exhibit glomeruli, proximal tubule, distal tubule, basal membrane, and collecting duct arrangement (20,27]. Figure 3 below shows an example of paraffin-embedded and sectioned human kidney organoids generated using the Takasato et al. (2016) protocol (12)The section is stained for glomerular, proximal tubule, and distal tubule marker proteins and exhibits continuous glomerular to distal tubule nephronic structures. Besides the structures, the kidney organoids are known to exhibit vasculature as well. However, it is limited, quickly regressing, and not organized as in a typical kidney (28].

Multiple functional assays may also be conducted in kidney organoids. For example, as described by Freedman et al. (2022), kidney organoids may be subject to pulse-chase assays, where various flfluorescent molecules may be added to media before being replaced with new fluorescent-lacking media [29]. Organoids may then be analyzed for uptake of these molecules, and the resulting information can be used to deduce information on accumulation, swelling, filtration, endocrine, or injury [29]. However, one of the issues with this assay in organoid platforms is that molecules may be introduced externally to closed tubular structures instead of through the apical surface, as would occur in vivo. Hence, flfluorescent molecules may be absorbed from the exterior basolateral membrane, as there is no way to control where these molecules may go when grossly introduced into the media. In addition, the transport of molecules can be limited by diffusion within organoids, creating different trends in accumulation within the same organoid.

Additionally, kidney repair may also be assessed in organoid platforms, thus allowing insights into kidney injury reversal mechanisms and genetic basis that may predispose patients to kidney disease. For example, studies such as Gupta et al. (2022) have investigated gene pathways that were upregulated in the presence of single or multiple exposures to cisplatin, a kidney injury molecule, in kidney organoid platforms [30]. Lastly, cyst formation may be analyzed in organoids for the purpose of studying polycystic kidney disease (PKD) via cAMP activation [26]. Cysts may then be measured, quantified, and treated as proxies for human kidney cysts.

BEST HERBS FOR CKD

3.1.2. In Vivo Analysis

A signifificant drawback to using in vitro kidney organoids as a model system is their lack of interplay with the rest of the organism. A plethora of conditions that affect remote sections of the body can affect the kidney and vice versa. For example, changes in blood pressure can drastically change glomerular pressure, which the kidney can, in turn, regulate. However, in vitro, organoid systems do not account for these systemic interactions. Thus, transplantation approaches that involve human-derived kidney organoids in mice, rats, and chick eggs have been explored. In such studies, human and animal tissues are distinguished via human nuclear antigen immunostaining or Y-chromosome read alignment to the combined genome reference [21]. Additionally, organoids can be transplanted via a scaffold (e.g., silk) to provide a higher level of structural integrity [31]. This approach may allow for easier organoid-tissue-specific analyses post-transplantation.

A key advantage of transplanting kidney organoids is that it allows organoids to vascularize, mature, and even filter urine. Van den Berg et al. (2018) have shown that after subcapsular renal transplantation into mice, kidney organoid glomeruli and tubules signifificantly mature [32]. In another study, Subramanian et al. (2019) have shown that transplantation of hiPSC-derived organoids into mice leads to increased proximal and distal tubule maturation and decreased presence of off-target cell populations within the organoid [21]. More importantly, post-transplantation, kidney organoids can perform the ultimate function of the kidney, filter blood. After subcutaneous transplantation in mice, kidney organoids formed urine-filtering structures, as evidenced by the transfer of FITC-labeled dextran [33]. Thus, not only does transplantation allow one to study the effects of a mutation in a kidney organoid in vivo, but it also improves the resemblance of the organoid to the human kidney and makes it a somewhat functional system.

While immunodeficient mice are often used for hiPSC kidney organoid transplantation, other hosts, such as chick chorioallantoic membranes (CAM), have also been used. A CAM is naturally immunodeficient and is conducive to vascularizing the organoid [16]. However, it lacks typical mammalian organ systems, making kidney organoids disconnected from other systems, unlike in mice. Despite host-related setbacks, chimera generation with human-derived kidney organoids allows for extensive in vivo study of human kidney disease in a highly impactful platform.

3.2. Disease Modeling Studies Conducted Thus Far

3.2.1. Kidney Organoids as Genetic Disease Models

Kidney organoids have been used to study tubular and glomerular genetic kidney diseases [26,34,35]. In humans, the most prominent tubular diseases include pediatric polycystic kidney disease (PKD), which results from autosomal recessive mutations in the fibrocystic gene (PKHD1), and adult PKD, which results from autosomal dominant mutations in the polycystin-1 and -2 genes [36–38]. These mutations may be artificially introduced into hiPSCs via gene-editing technologies, such as the CRISPR-Cas 9 system. The edited hiPSCs may be subsequently grown into PKD-modeling human kidney organoids and analyzed via protein staining and RNA profiling. For example, Freedman et al. (2015) and Cruz et al. (2017) have knocked out polycystin genes in hiPSC lines using the CRISPR/Cas9 system and subsequently derived organoids that mimic the cystic phenotype found in vivo in diseased patients [14,26]. These studies show that kidney organoids may be used as easily observable, disease-relevant platforms to study PKD. Furthermore, organoids made from patient-derived cell lines allow insight into patient-specific mutations and the likelihood of disease development. For example, Low et al. (2019) developed kidney organoids derived from patients with PKHD1 mutations and compared them with wild-type organoids [39]. The diseased organoids exhibited signifificantly more cyst formation, thus demonstrating the potential of kidney organoids to predict disease manifestation from genotype [39]. In another study, Hernandez et al. (2021) derived hiPSCs from patients with mutations in the tuberous sclerosis complex-2 gene, which renders the patient prone to kidney tumor development [40]. They then corrected the patient mutation with the CRISPR/Cas9 system. Kidney organoids from these corrected isogenic mutant lines exhibited reduced cyst formation and restored gene pathways compared to the diseased organoids, thus demonstrating the usefulness of kidney organoids in studying the downstream functional effects of specifific mutations in isogenic organ-like systems.

Researchers have also used patient-derived organoids to gain insight into genetic diseases that affect the glomerulus. For example, Hale et al. (2018) focused on the NPHS1 (nephrin) gene, which, if mutated, induces faulty podocyte foot process formation and leaky urine filtration, resulting in kidney disease [34]. Hale et al. (2018) used patient-derived mutant NPHS1 hiPSCs to derive kidney organoids that modeled these faulty podocyte foot processes, including decreased levels of podocyte-specific proteins, nephrin, and podocin [34]. Likewise, Freedman et al. (2015) knocked out the glomerular gene PODXL in hiPSCs and found that organoids show faulty podocyte-podocyte architecture [14].

One largely untapped potential of kidney organoids is their ability to model embryonic and fetal defects. Currently, researchers strive to model the adult human kidney with the kidney organoid. However, in its current first and second-trimester state, the kidney organoid may be used to study developmental kidney defects [41]. Urinary system developmental defects, such as kidney dysplasia, are among some of the most prevalent and severe developmental disorders [42]. Since many of these diseases may be detected as early as 11 weeks, kidney organoids lend themselves particularly well to studying congenital kidney disabilities. We not only have metanephric fifirst and second-trimester-like kidney organoids at our disposal, but we also have primitive mesonephric kidney cell lines (e.g., Tsujimoto et al., 2020) to study embryonic and fetal defects [24]. As few systems allow for the study and manipulation of a developing human kidney, the kidney organoid allows tremendous potential for fetal genetic, toxicological, and developmental studies.

3.2.2. Kidney Organoids as Models for Other Diseases

In addition to genetic disease, kidney organoids have been used to study the response of human systems to viral infection, cancer, and injury. For example, Jansen et al. (2021) used a kidney organoid platform to evaluate the effects of viral SARS-CoV-2 on human kidneys [43]. This group discovered that SARS-CoV-2 infection leads to increased collagen-I expression in human kidney organoids, thus providing a mechanistic explanation of the kidney injury and fibrosis that often accompanies severe cases of long COVID-19 [43]. Regarding cancer research, Hernandez et al. (2021) transplanted kidney organoids into immunodeficient rats to model rare genetically influenced kidney tumors. Here, patient-derived organoids developed tumor-like lesions, thus recapitulating human kidney tumors [40]. In addition, they used kidney organoid-based tumor models as semi-functional human-derived structures and tested drugs and nanoparticle-based therapies. Finally, recent studies have shown that kidney organoids may be used to test kidney injury response. For example, Prezpiorski et al. (2022) demonstrated that kidney organoids produce markers of oxidative damage and increased injury marker expression by administering the injury molecule hemin to kidney organoids, along with a biosensor [44].

3.2.3. Kidney Organoids in Drug Evaluation

In addition to providing insight into diseases, kidney organoids have been used to screen drugs. In particular, kidney organoids have been used to study drug-induced kidney injury (DIKI), which is a leading cause of acute kidney injury [45]. In the evaluation of cisplatin side effects, Czerniecki et al. (2018) showed that kidney organoids are helpful as high throughput models to vet new pharmaceuticals in a diverse array of human genetics [46].
